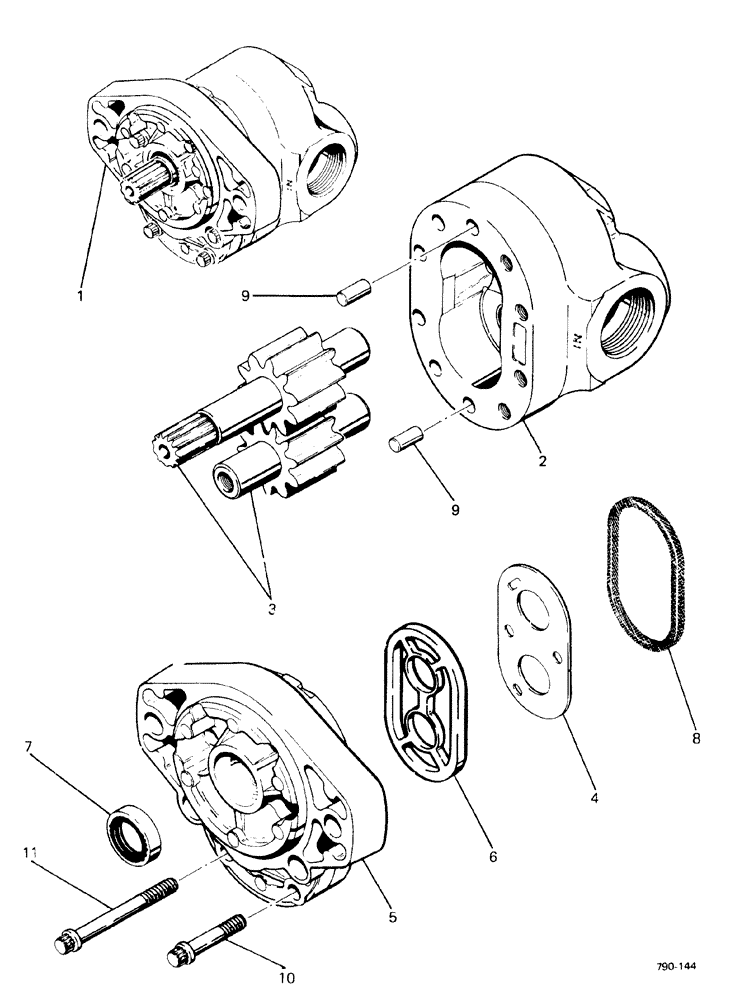

Запчасти Case 580F (155A) - HYDRAULICS PUMP (35) - HYDRAULIC SYSTEMS

1

D80083

PUMP

TRW, GP92033, for identifiction see name plate on pump. Check make and model number of pump before ordering parts. See other pump options on Figure 154 and 155

1шт.

D53690R

REMAN-HYD PUMP

580F BEFORE S/N 3739160 (EUROPE), Reman for New P/N D80083

1шт.

D53690C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY

1шт.

3

NSS

NOT SOLD SEPARAT

SET gear

1шт.

4

D50104

PLATE

1шт.

Part of Seal Kit P/N N62961

1шт.

N6297

COVER

ASSEMBLY

1шт.

5

NSS

NOT SOLD SEPARAT

COVER

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of Seal Kit P/N N62961

1шт.

7

D52477

SEAL

1шт.

Part of Seal Kit P/N N62961

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of Seal Kit P/N N62961

1шт.

9

NSS

NOT SOLD SEPARAT

DOWEL

2шт.

10

166-48

SCREW,Flg, 3/8" - 16 x 1 3/4", Gr 8

3шт.

11

166-54

12 PT SCREW,Flg, 3/8" - 16 x 3 1/4", Gr 8

5шт.

N62961

Kit seal repair Includes: Ref. 4, 6, 7 and 8

1шт.
