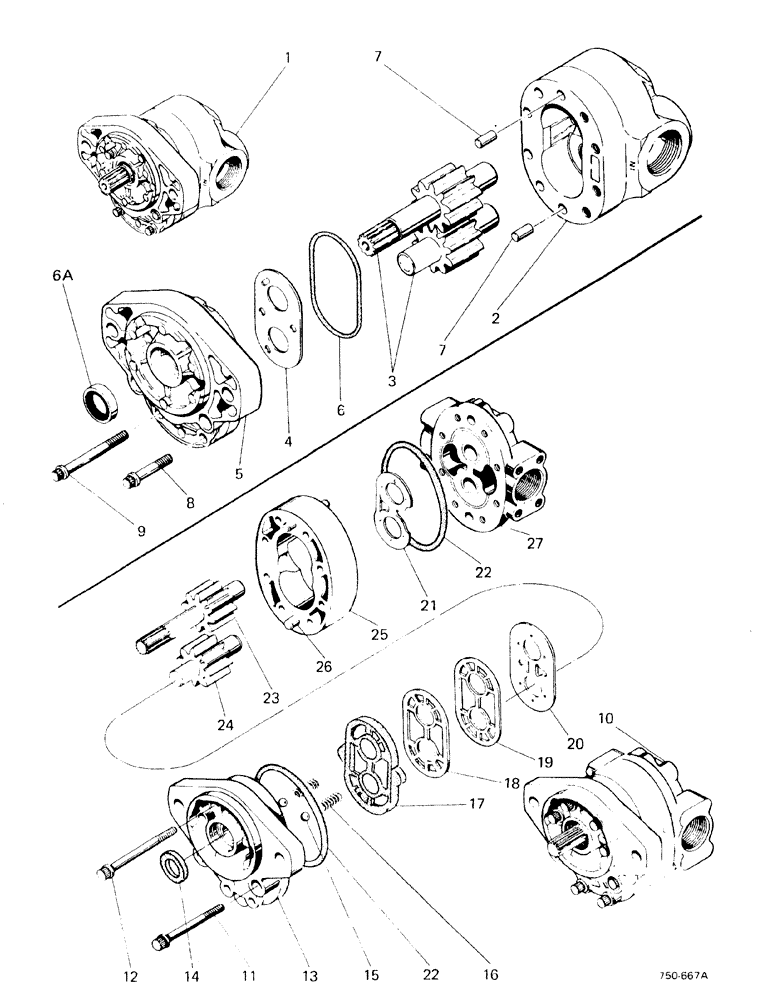

Запчасти Case 580F (154) - HYDRAULICS PUMP (35) - HYDRAULIC SYSTEMS

1

D49241

PUMP, HYDRAULIC

TRW, Ref. 19.920/78.00

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING complete

1шт.

3

D50103

GEAR

SET

1шт.

4

D50104

PLATE

1шт.

D50105

COVER

COVER ASSEMBLY, order N6297, see Figure 155A

1шт.

5

NSS

NOT SOLD SEPARAT

COVER

1шт.

6

F30271

SEAL

1шт.

6a

D52477

SEAL

1шт.

7

D50106

DOWEL

2шт.

8

166-48

SCREW,Flg, 3/8" - 16 x 1 3/4", Gr 8

CAP

4шт.

9

166-54

12 PT SCREW,Flg, 3/8" - 16 x 3 1/4", Gr 8

CAP

4шт.

10

D48950

PUMP

CESSNA, Ref. 24505 LAD

1шт.

D53690R

REMAN-HYD PUMP

580F BEFORE S/N 3739160 (EUROPE), Reman for New P/N D48950

1шт.

D53690C

CORE-HYDRAULIC PUMP

Return Number

1шт.

11

166-59

12 PT SCREW,Flg, 3/8" - 16 x 3 3/4", Gr 8

4шт.

12

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

4шт.

13

D48879

COVER

1шт.

D59656

GASKET KIT

pump

1шт.

14

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

1шт.

15

211-312

BALL,13/32" Dia

2шт.

16

D31403

SPRING

2шт.

17

D48888

SEAL

1шт.

18

H260927

GASKET

1шт.

19

H260935

GASKET

1шт.

20

H335331

DIAPHRAGM

1шт.

21

D41322

PLATE

1шт.

22

H756221

O-RING,4.987" ID x 5.193" OD

2шт.

D48881

GEAR

SET

1шт.

23

NSS

NOT SOLD SEPARAT

SHAFT AND GEAR

1шт.

24

NSS

NOT SOLD SEPARAT

SHAFT AND GEAR

1шт.

25

D56471

HOUSING

1шт.

26

D48882

PIN

2шт.

27

D48883

COVER

1шт.
