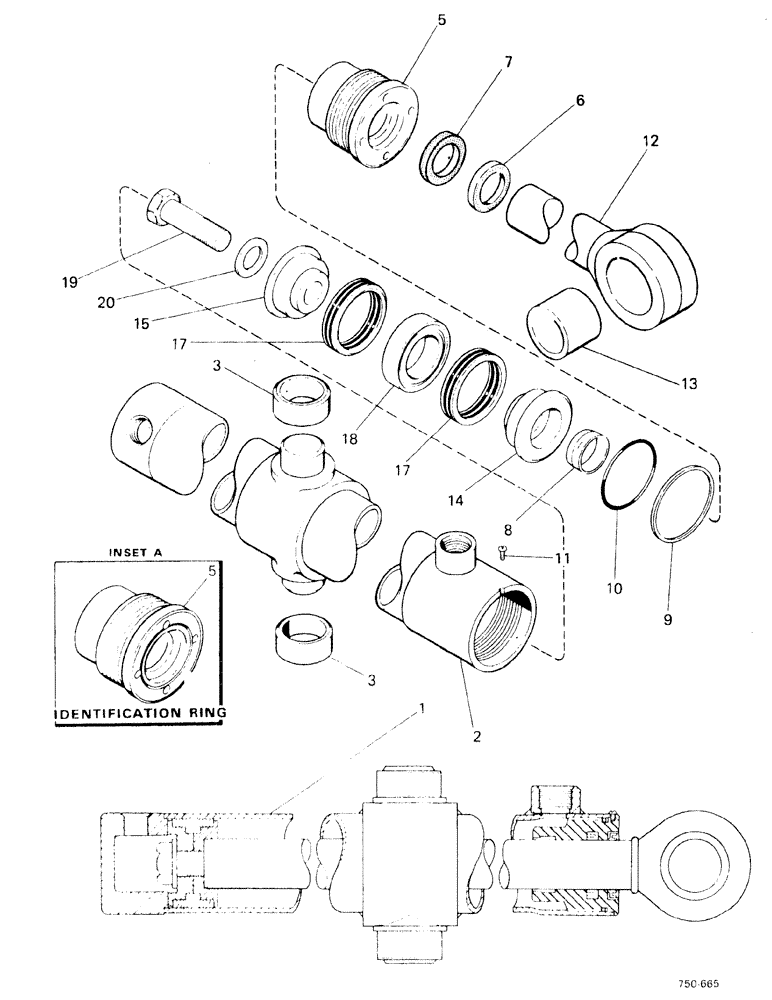

Запчасти Case 580F (150) - LOADER TILT CYLINDER, UP TO NO 3.702.035, DC AND 3.733.215, TC (35) - HYDRAULIC SYSTEMS

1

G33420

HYDRAULIC CYLINDER

CYLINDER complete, right-hand

1шт.

1

G33421

HYDRAULIC CYLINDER

CYLINDER complete, left-hand

1шт.

2

D31098

TUBE

ASSEMBLY right-hand

1шт.

2

D31099

TUBE

ASSEMBLY left-hand

1шт.

3

G103411

BUSHING,38mm ID x 47.4mm OD x 20.57mm L

2шт.

G33487

GLAND

complete

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER

1шт.

7

D36969

CUP

SEAL

1шт.

8

D27706

WIPER SEAL

WIPER

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

1шт.

10

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

1шт.

12

G33422

ROD

complete

1шт.

13

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

1шт.

14

G33419

PISTON

split

1шт.

15

D28364

PISTON

split

1шт.

G33193

PACKING

SEAL complete

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL

2шт.

18

NSS

NOT SOLD SEPARAT

RING

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

G32294

SEAL

SET

1шт.

G100776

SEAL

special seal for extreme heat or cold

1шт.
