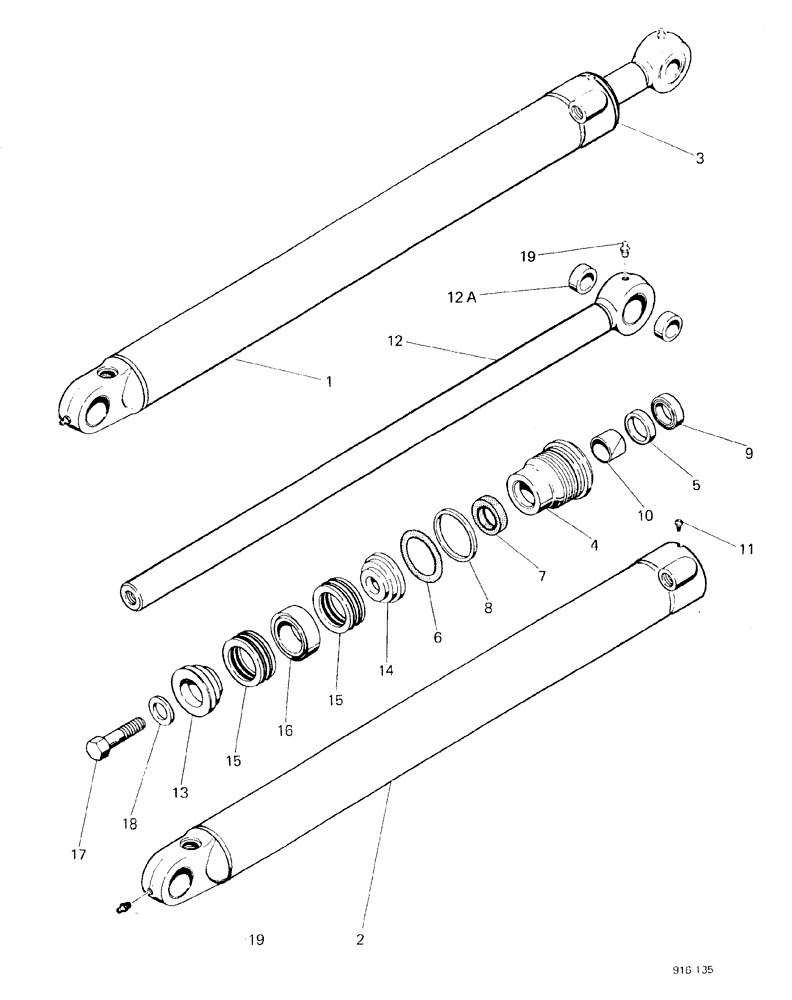

Запчасти Case 580F (148) - LOADER LIFT CYLINDER, UP TO NO 3.702.039, DC AND 3.733.219, TC (35) - HYDRAULIC SYSTEMS

1

G100466

CYLINDER

ASSEMBLY right-hand

1шт.

1

G100467

CYLINDER

ASSEMBLY left-hand

1шт.

2

G35398

TUBE,39.68" L

right-hand

1шт.

2

G35399

TUBE,39.68" L

left-hand

1шт.

3

G100470

GLAND

complete

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING

1шт.

6

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL

1шт.

7

D36971

RING

SEAL

1шт.

8

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING

1шт.

9

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper

1шт.

10

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BEARING

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

1шт.

12

G100468

PISTON ROD

complete

1шт.

12a

G35396

BUSHING

2шт.

G100474

PISTON SPLIT ASSEMBLY

1шт.

13

G35403

PISTON

split

1шт.

14

G100475

PLUNGER

split

1шт.

G35404

PACKING

PACKING

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL

2шт.

16

NSS

NOT SOLD SEPARAT

RING

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

G35425

GASKET KIT

SET seals

1шт.

G100778

SEAL

special seal for extreme heat of cold

1шт.
