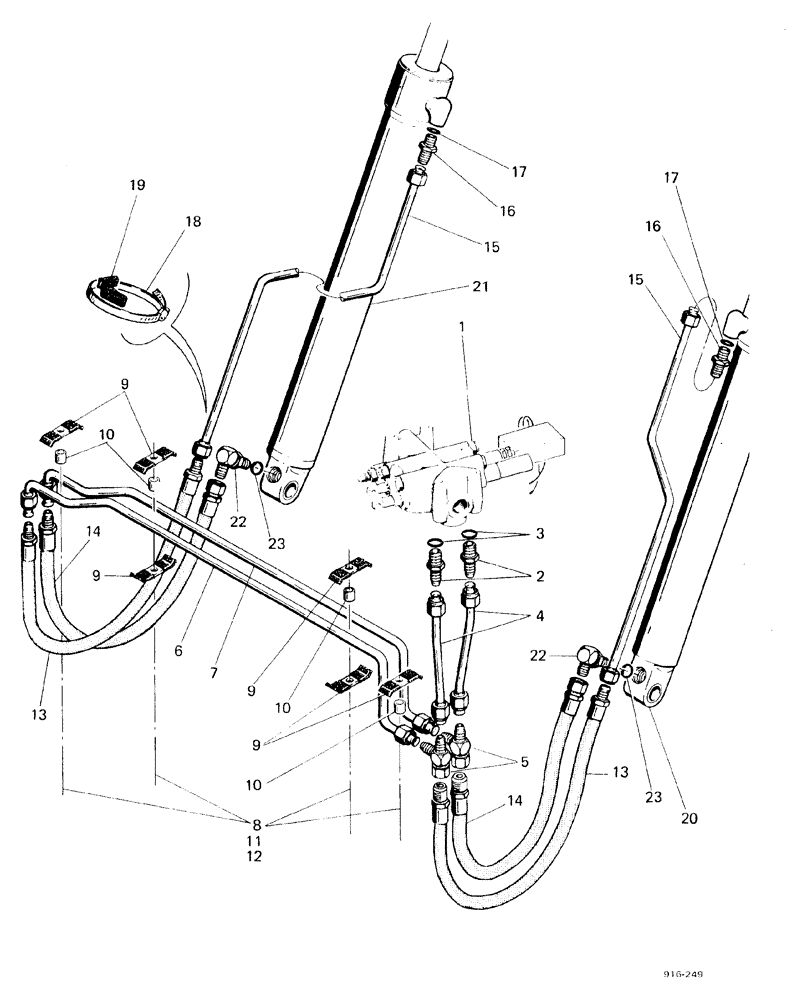

Запчасти Case 580F (144) - LOADER LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE, see Figure 162 - 164

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

2шт.

3

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

4

D68905

TUBE

2шт.

5

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

CONNECTOR

2шт.

6

D68910

TUBE

1шт.

7

D68912

TUBE

1шт.

8

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

9

D40236

CLAMP

6шт.

10

D73071

SPACER

SPACER

4шт.

11

92-6

LOCK WASHER,3/8"

4шт.

12

25-106

NUT,3/8"-16, G5

4шт.

13

D71600

HOSE

2шт.

13

E37006

HOSE

for Suedish only

2шт.

14

38410

HOSE

2шт.

14

E37005

HOSE ASSY.

for Suedish only

2шт.

15

D69664

TUBE

SPARE PART

2шт.

16

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

2шт.

17

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

18

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

19

D38648

BLOCK

SPACER

2шт.

20

REF

INSTRUCTION

CYLINDER right-hand, see Figure 148

1шт.

21

REF

INSTRUCTION

CYLINDER left-hand, see Figure 148

1шт.

22

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

2шт.

23

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.
