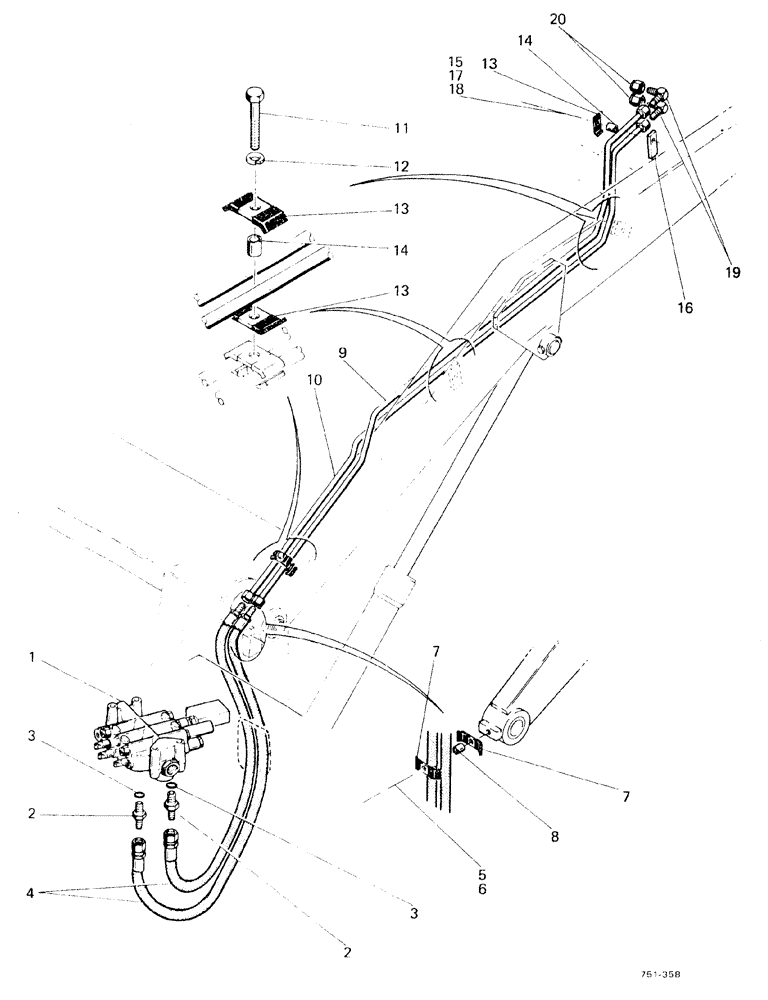

Запчасти Case 580F (142) - LOADER 4-IN-1 BUCKET HYDRAULIC (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE, see Figure 164

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter

2шт.

3

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

4

L55738

HOSE

2шт.

5

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

CAPSCREW

1шт.

6

92-5

LOCK WASHER,5/16"

1шт.

7

D33316

CLAMP

2шт.

8

D72237

BUSHING

SPARE PART SPACER

1шт.

9

D72532

TUBE

1шт.

10

D72530

TUBE

1шт.

11

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

3шт.

12

92-5

LOCK WASHER,5/16"

3шт.

13

R17319

CLAMP

7шт.

14

D73049

BUSHING

SPACER

4шт.

15

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

16

D73050

BRACKET

SPARE PART

1шт.

17

195-21

WASHER,5/16"

1шт.

18

131-4

LOCK NUT,5/16"-18, GB

1шт.

19

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

2шт.

20

218-755

CAP,37 Degree, 3/4"-16

2шт.
