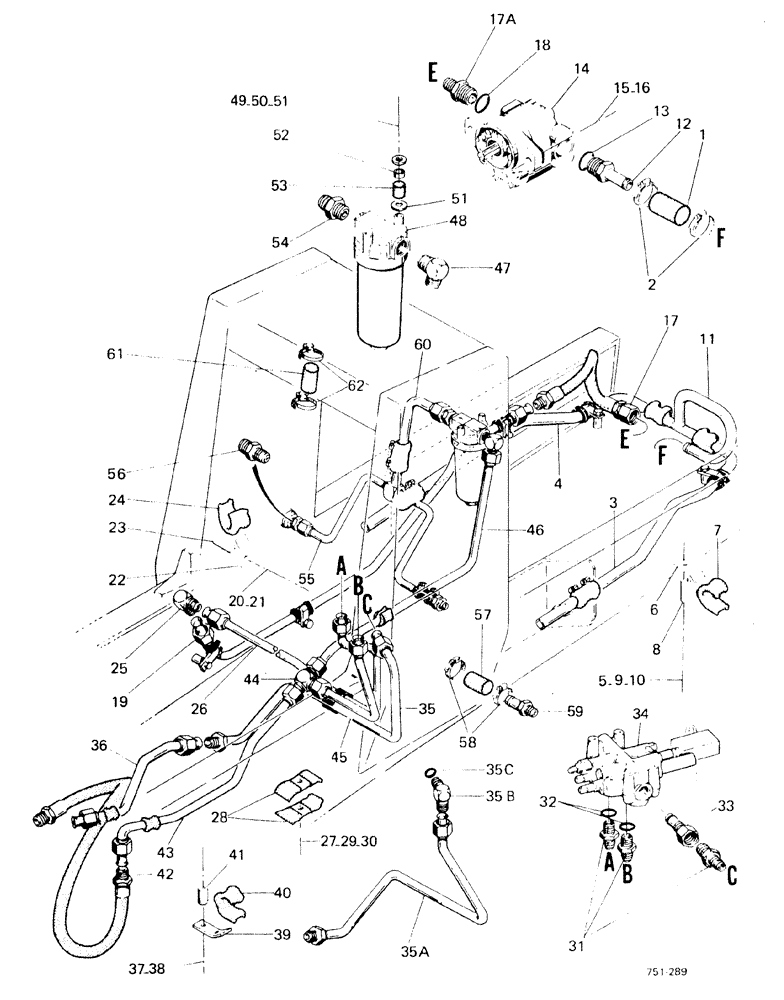

Запчасти Case 580F (138) - HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

D36350

HOSE

5шт.

2

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

10шт.

3

D66137

TUBE

SPARE PART right-hand

1шт.

4

D66136

PIPE

left-hand

1шт.

5

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

2шт.

6

D71659

CLAMP

2шт.

7

D95796

CUSHION

2шт.

8

D70781

SPACER

SPACER

2шт.

9

92-3

LOCK WASHER,#10

2шт.

10

25-108

NUT,1/2"-13, G5

2шт.

11

D67002

TUBE

MANIFOLD

1шт.

12

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

1шт.

13

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL

1шт.

14

REF

INSTRUCTION

PUMP, see Figure 154

1шт.

15

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

15

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

16

92-8

LOCK WASHER,1/2"

4шт.

17

D68547

HOSE,19.05mm ID x 200mm L, SAE 100R2

1шт.

17a

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1шт.

18

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

19

D67604

TUBE

1шт.

20

13-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

21

92-6

LOCK WASHER,3/8"

4шт.

22

D67211

CLAMP

4шт.

23

D95805

BUSHING

SPACER

4шт.

24

D95795

PAD

4шт.

25

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

ELBOW

1шт.

26

D67610

TUBE

SPARE PART

1шт.

27

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

28

D33316

CLAMP

2шт.

29

195-21

WASHER,5/16"

1шт.

30

131-651

NUT,5/16"-18, GB

NUT

1шт.

31

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

2-3шт.

32

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

33

D61251

FITTING

1шт.

34

REF

INSTRUCTION

VALVE, see Figure 162 and 164

1шт.

35

D68883

TUBE

SPARE PART for 2-spool control valve

1шт.

35a

D72570

TUBE

for 3-spool control valve

1шт.

35b

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

35c

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

36

D68886

TUBE

SPARE PART

1шт.

37

13-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

38

92-6

LOCK WASHER,3/8"

2шт.

39

D67211

CLAMP

2шт.

40

D95795

PAD

2шт.

41

D95805

BUSHING

SPACER

2шт.

42

D66506

HOSE

1шт.

43

D76619

TUBE

1шт.

44

218-598

TEE,1 5/16"-12 37 Degree

CONNECTOR

1шт.

45

D67421

TUBE

SPARE PART for 2-spool control valve

1шт.

45

D72572

TUBE

for 3-spool control valve

1шт.

46

D68062

TUBE

SPARE PART

1шт.

47

D65646

FITTING

ELBOW, 90°

1шт.

48

REF

INSTRUCTION

FILTER, see Figure 208

1шт.

49

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

50

92-8

LOCK WASHER,1/2"

2шт.

51

195-36

WASHER

4шт.

52

D65660

BUSHING

SPARE PART SPACER

2шт.

53

D67915

GROMMET

2шт.

54

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR

1шт.

55

D67007

TUBE

1шт.

56

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR left-hand

1шт.

57

R20804

HOSE,19.00 mm ID x 76.20 mm, SAE 100R3

1шт.

58

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

59

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

ELBOW

1шт.

60

D68060

PIPE

TUBE

1шт.

61

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

1шт.

62

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.
