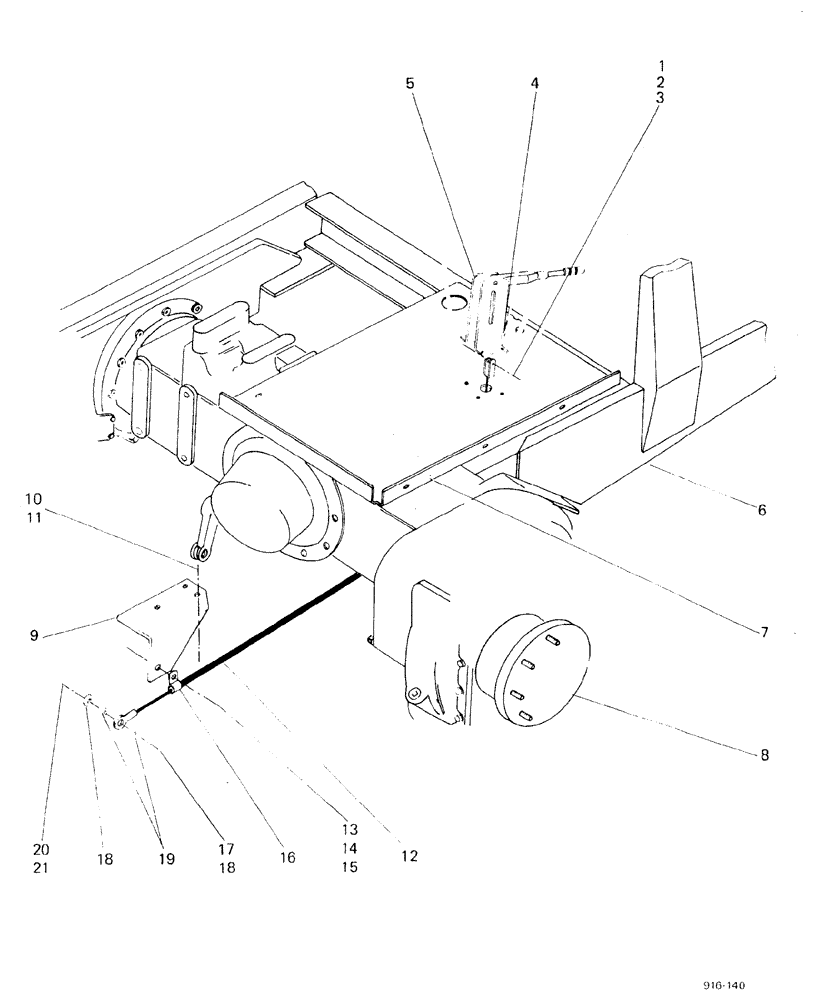

Запчасти Case 580F (358) - HANDBRAKE, FOR GERMANY, STARTING WITH NO 3.733.717, TORQUE CONVERTER (33) - BRAKES & CONTROLS

1

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

2

92-6

LOCK WASHER,3/8"

1шт.

3

25-106

NUT,3/8"-16, G5

1шт.

4

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Cap

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

4

25-106

NUT,3/8"-16, G5

4шт.

5

A17214

LEVER

1шт.

6

REF

INSTRUCTION

FRAME, see Figure 292

1шт.

7

E40392

PLATE right-hand

1шт.

8

NSS

NOT SOLD SEPARAT

TRANSMISSION

1шт.

9

E38941

BRACKET

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAP

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

E34754

CABLE

1шт.

13

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAP

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

2шт.

15

92-5

LOCK WASHER,5/16"

2шт.

16

D40684

CLAMP,12.7mm ID, 8.78mm Bolt Hole, P Type

2шт.

17

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

18

195-2020

WASHER,.344" x 1" x .065"

2шт.

19

E34604

BUSHING

SPARE PART SPACER

2шт.

20

92-5

LOCK WASHER,5/16"

1шт.

21

9635082

NUT,5/16" - 18, Gr 5

1шт.
