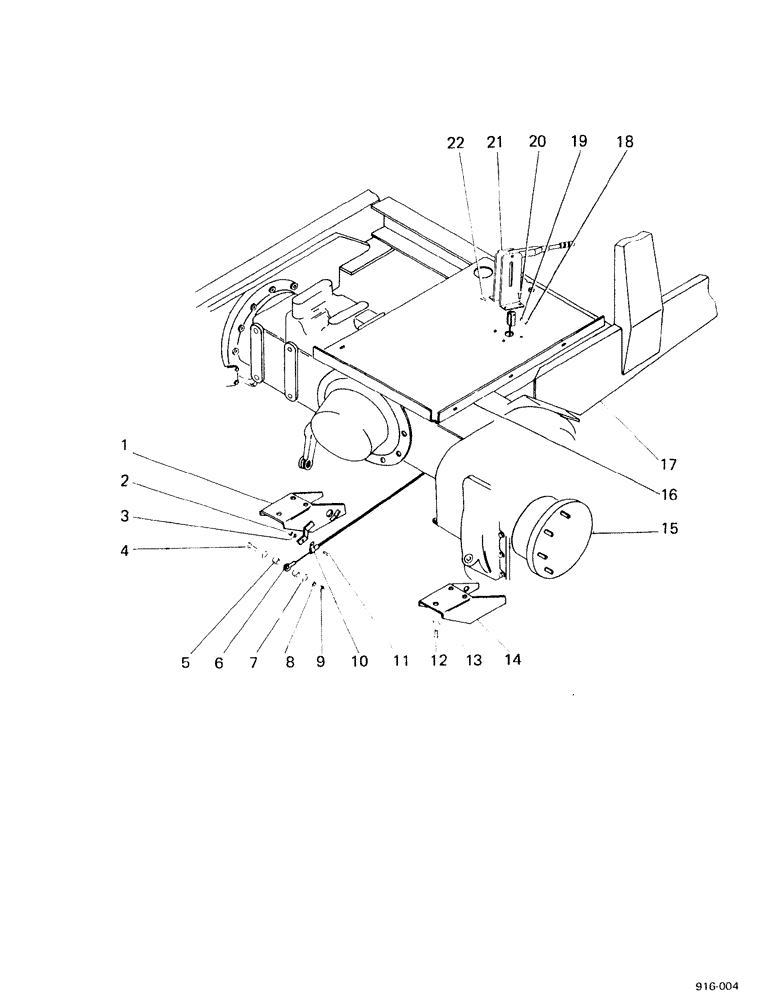

Запчасти Case 580F (356) - HANDBRAKE, FOR GERMANY, UP TO NO 3.736.716 (33) - BRAKES & CONTROLS

1

E34605

BRACKET left-hand

1шт.

2

9635082

NUT,5/16" - 18, Gr 5

2шт.

3

92-5

LOCK WASHER,5/16"

2шт.

4

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

5

E34604

BUSHING

SPARE PART SPACER

2шт.

6

E34754

CABLE

1шт.

7

195-2020

WASHER,.344" x 1" x .065"

2шт.

8

92-5

LOCK WASHER,5/16"

1шт.

9

9635082

NUT,5/16" - 18, Gr 5

1шт.

10

D40684

CLAMP,12.7mm ID, 8.78mm Bolt Hole, P Type

2шт.

11

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAP

2шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAP

6шт.

13

92-6

LOCK WASHER,3/8"

6шт.

14

D71611

BRACKET

right-hand

1шт.

15

NSS

NOT SOLD SEPARAT

TRANSMISSION

1шт.

16

E35280

PLATE right-hand

1шт.

UP TO NO. 3.732.576, TORQUE CONVERTER

1шт.

16

E40392

PLATE right-hand

1шт.

STARTING WITH NO. 3.732.577, TORQUE CONVERTER

1шт.

17

REF

INSTRUCTION

FRAME, see Figure 292

1шт.

18

25-106

NUT,3/8"-16, G5

1шт.

19

92-6

LOCK WASHER,3/8"

1шт.

20

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Cap

4шт.

20

92-6

LOCK WASHER,3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

4шт.

21

A17214

LEVER

1шт.

22

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.
