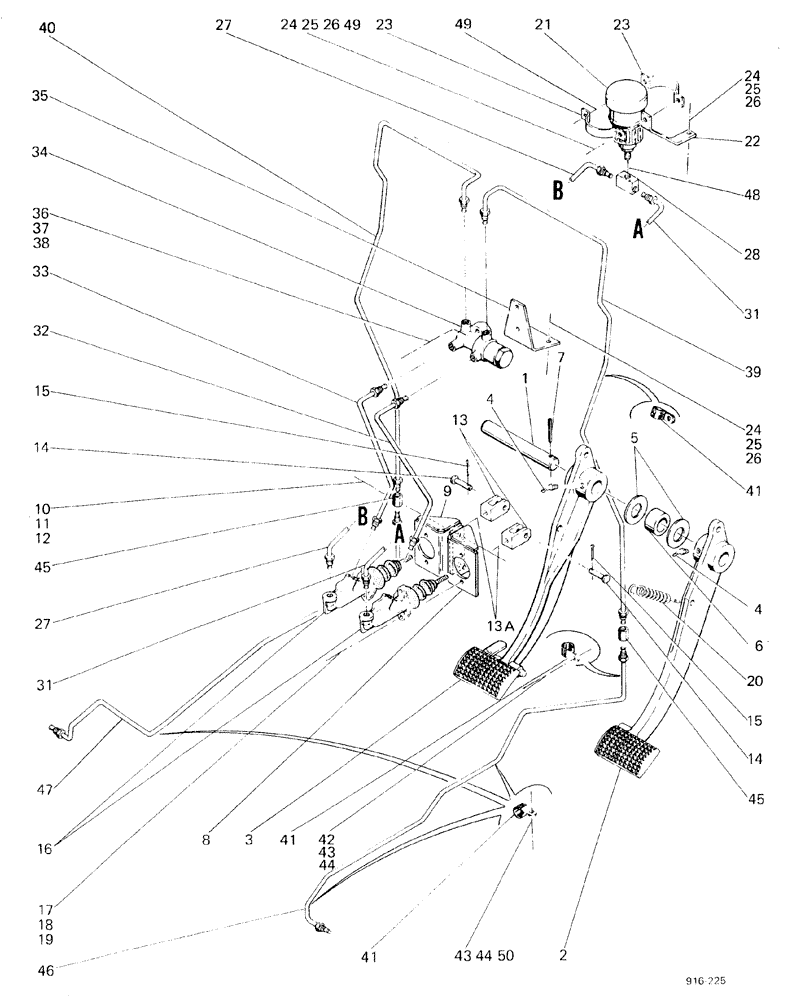

Запчасти Case 580F (123A) - BRAKE SYSTEM DRY CLUTCH MODELS, STARTING WITH NO 3.702.078 (33) - BRAKES & CONTROLS

1

D67983

SHAFT

1шт.

2

D67988

PEDAL

brake, right-hand

1шт.

2

E36393

PEDAL brake, right-hand, for Suedish only

1шт.

3

D69551

PEDAL

brake, left-hand

1шт.

3

E36391

PEDAL brake, left-hand, for Suedish only

1шт.

4

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING

2шт.

5

D72675

SHIM

SHIM

1шт.

6

D69575

SPACER

1шт.

7

138-177

LOCK PIN,3/8" x 2", Slotted

1шт.

8

D69487

BRACKET right-hand

1шт.

UP TO NO. 3.737.722

1шт.

8

D69488

BRACKET right-hand

1шт.

STARTING WITH NO. 3.737.723

1шт.

9

D69488

BRACKET left-hand

1шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

2шт.

13

D69422

YOKE

UNIVERSAL JOINT YOKE

2шт.

13a

25-156

JAM NUT,Jam, 3/8"-24, G5

2шт.

14

141-5

CLEVIS PIN,7/16" x 1.190"

2шт.

15

132-26

COTTER PIN

3/32" x 3/4"

2шт.

16

D70926

CYLINDER

for slave-cylinder see Figure 096

2шт.

17

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAP

4шт.

18

92-5

LOCK WASHER,5/16"

4шт.

19

9635082

NUT,5/16" - 18, Gr 5

4шт.

20

D129921

SPRING

SPRING

4шт.

21

D70924

TANK

RESERVOIR

1шт.

22

D73052

BRACKET

SUPPORT

2шт.

23

D67279

CLAMP

2шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAP

6шт.

25

92-6

LOCK WASHER,3/8"

6шт.

26

25-106

NUT,3/8"-16, G5

6шт.

27

D76768

TUBE

1шт.

28

D76788

CONNECTOR, ELEC

CONNECTOR

1шт.

31

D76762

TUBE

SPARE PART

1шт.

32

D74903

TUBE

1шт.

33

D74904

TUBE

1шт.

34

D70925

VALVE

1шт.

35

D69497

SUPPORT

1шт.

36

13-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

37

92-4

LOCK WASHER,1/4"

2шт.

38

25-104

NUT,1/4"-20, G5

2шт.

39

D74901

TUBE

TUBE

1шт.

40

D74902

PIPE

TUBE

1шт.

41

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

6шт.

42

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Cap

4шт.

43

92-6

LOCK WASHER,3/8"

6шт.

44

25-106

NUT,3/8"-16, G5

6шт.

45

D76775

FITTING

UNION

2шт.

46

D72252

TUBE

1шт.

47

D72254

TUBE

1шт.

48

D35288

WASHER

1шт.

49

195-25

WASHER,3/8"

2шт.

50

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Cap

2шт.

E41292

KIT

repair, for slave-cylinder see Figure 096

1шт.
