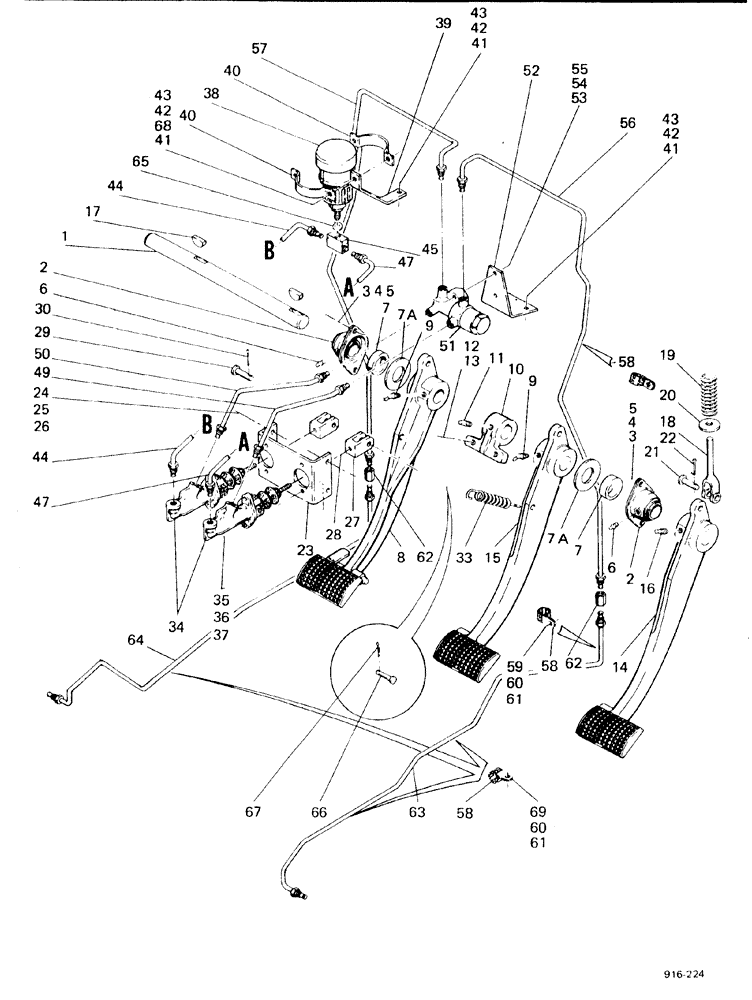

Запчасти Case 580F (119A) - BRAKE SYSTEM POWER SHUTTLE MODELS, STARTING WITH NO 3.733.488 (33) - BRAKES & CONTROLS

1

D66125

SHAFT

1шт.

2

D77731

FLANGED BEARING

2шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAP

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

4шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

7

D69721

SPACER

SPACER

2шт.

7a

D72675

SHIM

SHIM

1шт.

8

D69551

PEDAL

brake

1шт.

8

E36391

PEDAL brake, for Suedish only

1шт.

9

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING

2шт.

10

D68123

STOP

CONNECTOR brake pedal

1шт.

11

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SET

1шт.

12

113-242

BOLT

CAP

2шт.

13

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

14

D67987

PEDAL

1шт.

14

E36392

PEDAL, for Suedish only

1шт.

15

D67988

PEDAL

1шт.

15

E36393

PEDAL, for Suedish only

1шт.

16

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SET

1шт.

17

126-33

WOODRUFF KEY,#D, 5/16" x 1 1/4"

2шт.

18

D66142

YOKE

UNIVERSAL JOINT YOKE

1шт.

19

D72404

SPRING

1шт.

20

95-7

WASHER,7/16"

1шт.

21

141-15

CLEVIS PIN,1/4" x 1.969"

1шт.

22

132-26

COTTER PIN

3/32" x 3/4"

1шт.

23

D69489

BRACKET

PLATE

1шт.

UP TO NO. 3.737.722

1шт.

23

E40825

BRACKET

PLATE

1шт.

STARTING WITH NO. 3.737.723

1шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAP

4шт.

25

92-6

LOCK WASHER,3/8"

4шт.

26

25-106

NUT,3/8"-16, G5

4шт.

27

D69422

YOKE

UNIVERSAL JOINT YOKE

2шт.

28

25-156

JAM NUT,Jam, 3/8"-24, G5

2шт.

29

141-5

CLEVIS PIN,7/16" x 1.190"

1шт.

30

132-26

COTTER PIN

3/32" x 3/4"

1шт.

33

D129921

SPRING

spring

2шт.

34

D70926

CYLINDER

2шт.

35

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAP

4шт.

36

92-5

LOCK WASHER,5/16"

4шт.

37

9635082

NUT,5/16" - 18, Gr 5

4шт.

38

D70924

TANK

RESERVOIR

1шт.

39

D73052

BRACKET

2шт.

40

D67279

CLAMP

2шт.

41

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAP

6шт.

42

92-6

LOCK WASHER,3/8"

6шт.

43

25-106

NUT,3/8"-16, G5

6шт.

44

D76768

TUBE

1шт.

45

D76788

CONNECTOR, ELEC

CONNECTOR

1шт.

47

D76762

TUBE

SPARE PART

1шт.

49

D74905

TUBE

SPARE PART

1шт.

50

D74906

TUBE

SPARE PART

1шт.

51

D70925

VALVE

1шт.

52

D69497

SUPPORT

1шт.

53

13-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

54

92-4

LOCK WASHER,1/4"

2шт.

55

25-104

NUT,1/4"-20, G5

2шт.

56

D74901

TUBE

TUBE

1шт.

57

D74902

PIPE

TUBE

1шт.

58

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

6шт.

59

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Cap

2шт.

60

92-6

LOCK WASHER,3/8"

4шт.

61

25-106

NUT,3/8"-16, G5

4шт.

62

D76775

FITTING

UNION

2шт.

63

D72252

TUBE

1шт.

64

D72254

TUBE

1шт.

65

D35288

WASHER

1шт.

66

141-5

CLEVIS PIN,7/16" x 1.190"

1шт.

67

132-26

COTTER PIN

3/32" x 3/4"

1шт.

68

195-25

WASHER,3/8"

2шт.

69

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Cap

2шт.

E41292

KIT

repair, for slave-cylinder, see Figure 96

1шт.
