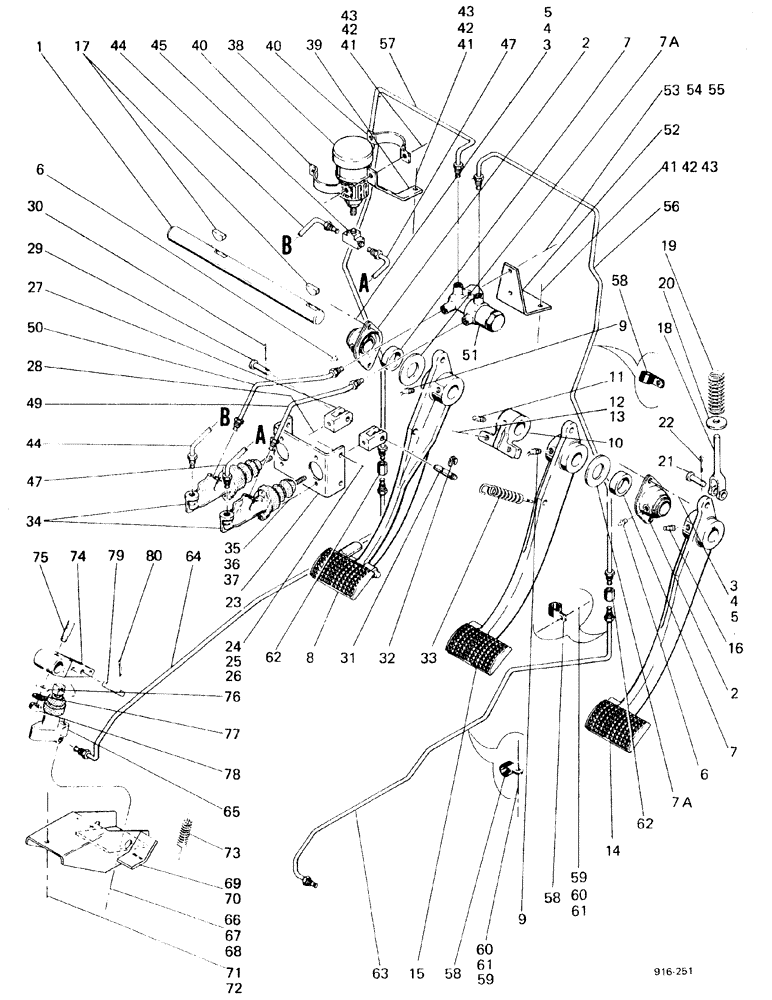

Запчасти Case 580F (116) - BRAKE SYSTEM POWER SHUTTLE MODELS, UP TO NO 3.733.487 (33) - BRAKES & CONTROLS

1

D66125

SHAFT

1шт.

2

D77731

FLANGED BEARING

2шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAP

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

4шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

7

D69721

SPACER

SPACER

2шт.

7a

D72675

SHIM

SHIM

1шт.

8

D69551

PEDAL

brake, left-hand

1шт.

8

E36391

PEDAL brake, left-hand, for Suedish only

1шт.

9

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING

2шт.

10

D68123

STOP

CONNECTOR brake pedal

1шт.

11

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SET

1шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

13

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

14

D67988

PEDAL

1шт.

14

E36393

PEDAL, for Suedish only

1шт.

15

D67987

PEDAL

1шт.

15

E36392

PEDAL, for Suedish only

1шт.

16

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SET

1шт.

17

126-33

WOODRUFF KEY,#D, 5/16" x 1 1/4"

2шт.

18

D66142

YOKE

UNIVERSAL JOINT YOKE

1шт.

19

D72404

SPRING

1шт.

20

95-7

WASHER,7/16"

1шт.

21

141-5

CLEVIS PIN,7/16" x 1.190"

1шт.

22

132-26

COTTER PIN

3/32" x 3/4"

1шт.

23

D69489

BRACKET

PLATE

1шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAP

4шт.

25

92-6

LOCK WASHER,3/8"

4шт.

26

25-106

NUT,3/8"-16, G5

4шт.

27

D69422

YOKE

UNIVERSAL JOINT YOKE

2шт.

28

25-156

JAM NUT,Jam, 3/8"-24, G5

2шт.

29

141-5

CLEVIS PIN,7/16" x 1.190"

1шт.

30

132-26

COTTER PIN

3/32" x 3/4"

1шт.

31

D68737

PIN

1шт.

UP TO NO. 3.733.074

1шт.

31

141-5

CLEVIS PIN,7/16" x 1.190"

1шт.

STARTING WITH NO. 3.733.075

1шт.

32

D95094

RING, SNAP

RING SNAP

2шт.

UP TO NO. 3.733.074

1шт.

32

132-26

COTTER PIN

3/32" x 3/4"

1шт.

STARTING WITH NO. 3.733.075

1шт.

33

D129921

SPRING

SPRING

2шт.

34

D67661

CYLINDER

2шт.

35

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAP

4шт.

36

92-5

LOCK WASHER,5/16"

4шт.

37

9635082

NUT,5/16" - 18, Gr 5

4шт.

38

D67659

TANK

RESERVOIR

1шт.

39

D73052

BRACKET

2шт.

40

D67279

CLAMP

2шт.

41

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAP

6шт.

42

92-6

LOCK WASHER,3/8"

6шт.

43

25-106

NUT,3/8"-16, G5

6шт.

44

D73025

TUBE

1шт.

45

D73048

CONNECTOR, ELEC

SPARE PART

1шт.

47

D73023

TUBE

1шт.

49

D73029

TUBE

SPARE PART

1шт.

50

D73027

TUBE

1шт.

51

D67660

VALVE

1шт.

52

D69497

SUPPORT

1шт.

53

13-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

54

92-4

LOCK WASHER,1/4"

2шт.

55

25-104

NUT,1/4"-20, G5

2шт.

56

D73031

TUBE

1шт.

57

D73033

PIPE

SPARE PART TUBE

1шт.

58

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

6шт.

59

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Cap

4шт.

60

92-6

LOCK WASHER,3/8"

4шт.

61

25-106

NUT,3/8"-16, G5

4шт.

62

222-1052

HYD CONNECTOR,3/16" Inv Fl

UNION

2шт.

63

D71800

TUBE

1шт.

64

D71798

TUBE

1шт.

65

D67662

CYLINDER

2шт.

66

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

CAP

4шт.

67

92-5

LOCK WASHER,5/16"

4шт.

68

9635082

NUT,5/16" - 18, Gr 5

4шт.

69

D71611

BRACKET

right-hand

1шт.

70

D71768

BRACKET

left-hand

1шт.

71

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAP

6шт.

72

92-6

LOCK WASHER,3/8"

6шт.

73

F67326

SPRING

2шт.

74

D75961

ARM

SPARE PART

2шт.

75

K609425

LARGE PIN

PIN, LARGE

2шт.

76

195-25

WASHER,3/8"

2шт.

77

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

2шт.

78

9635082

NUT,5/16" - 18, Gr 5

2шт.

79

D71802

PIN

4шт.

80

132-5

COTTER PIN,1/16" x 1/2"

8шт.

D74426

NO LONGER SERVICED

KIT repair; Used With D67661 Cylinder, Ref 34

1шт.

D74427

KIT

repair; Used With D67662 Cylinder, Ref 65

1шт.
