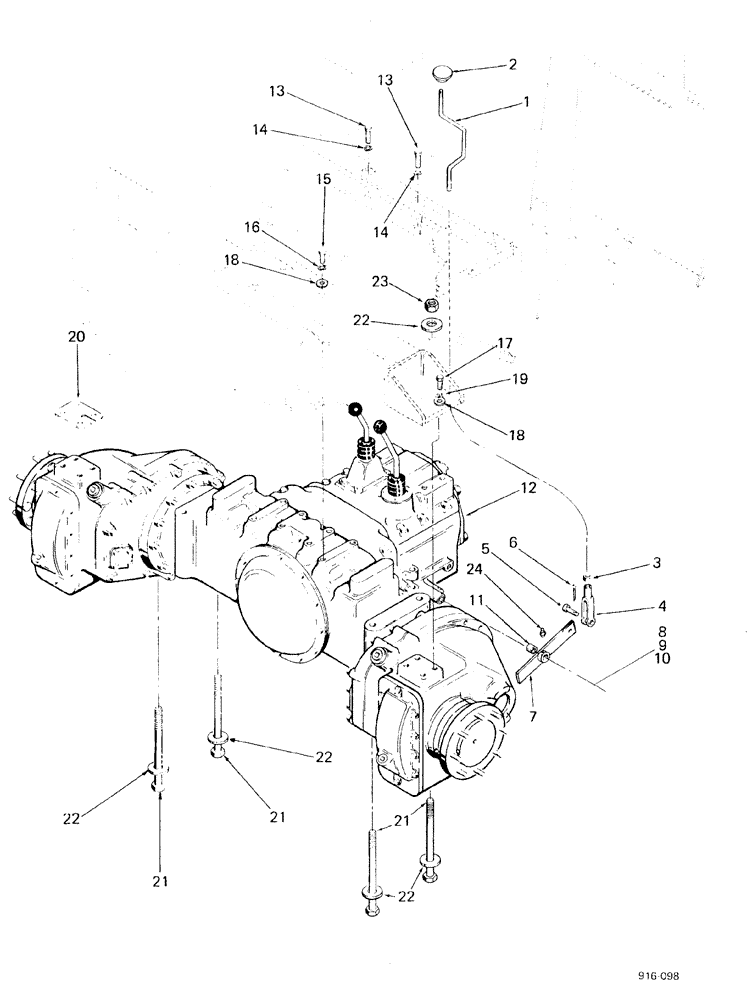

Запчасти Case 580F (098) - TRANSAXLE (27) - REAR AXLE SYSTEM

1

D67689

PEDAL

1шт.

UP TO NO. 3.701.924, DRY CLUTCH/NO. 3.732.486, TORQUE CONVERTER

1шт.

1

D76471

LEVER

1шт.

STARTING WITH NO. 3.701.925, DRY CLUTCH/NO. 3.732.487, TORQUE CONVERTER

1шт.

2

D76246

COLLAR

SPARE PART BOSS

1шт.

STARTING WITH NO. 3.701.925, DRY CLUTCH/NO. 3.732.487, TORQUE CONVERTER

1шт.

3

25-116

NUT,Hex, 3/8"-24, G5

1шт.

4

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

5

141-4

CLEVIS PIN,3/8" x 1.060"

1шт.

6

132-26

COTTER PIN

3/32" x 3/4"

1шт.

7

D73568

LEVER

1шт.

UP TO NO. 3.701.924, DRY CLUTCH/NO. 3.732.486, TORQUE CONVERTER

1шт.

7

D76473

LEVER

1шт.

STARTING WITH NO. 3.701.925, DRY CLUTCH/NO. 3.732.487, TORQUE CONVERTER

1шт.

8

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1шт.

9

92-8

LOCK WASHER,1/2"

1шт.

10

195-33

WASHER,1/2"

1шт.

11

D67690

BUSHING

SPACER

1шт.

12

NSS

NOT SOLD SEPARAT

TRANSAXLE complete, torque converter

1шт.

12

NSS

NOT SOLD SEPARAT

TRANSAXLE complete, torque converter

1шт.

13

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

14

92-10

LOCK WASHER,5/8"

2шт.

15

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

16

92-8

LOCK WASHER,1/2"

4шт.

17

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

18

95-8

WASHER,1/2"

12шт.

19

92-8

LOCK WASHER,1/2"

8шт.

20

D70282

SHIM

1шт.

21

26-16168

BOLT,Hex, 1" - 8 x 10-1/2", Gr 8

CAP

4шт.

22

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

8шт.

23

25-1016

NUT,1"-8, G5

4шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
