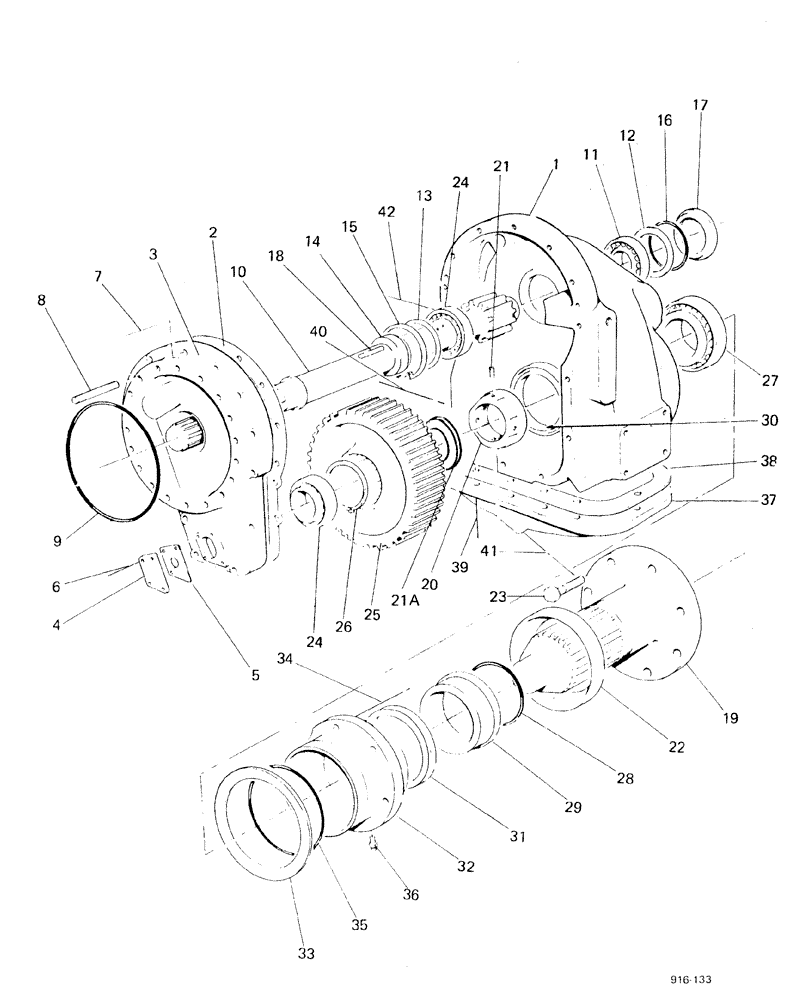

Запчасти Case 580F (090) - FINAL DRIVE AND REDUCTION GEARS (27) - REAR AXLE SYSTEM

1

K940832

GEAR

CASE reduction, right

1шт.

UP TO NO. 11.228.417, dry clutch/NO. 11.228.401, torque converter/NO. 11.228.399, torque converter, Germany only

1шт.

K940833

GEAR

CASE reduction, left

1шт.

UP TO NO. 11.228.417, dry clutch/NO. 11.228.401, torque converter/NO. 11.228.399, torque converter, Germany only

1шт.

1

K954214

HOUSING

CASE reduction gear, right

1шт.

STARTING WITH NO. 11.228.418, dry clutch/NO. 11.228.402, torque converter/NO. 11.228.400, torque converter, Germany only

1шт.

K954213

HOUSING

SPARE PART CASE reduction gear, left

1шт.

STARTING WITH NO. 11.228.418, dry clutch/NO. 11.228.402, torque converter/NO. 11.228.400, torque converter, Germany only

1шт.

2

K940834

GASKET,0.25mm Thk

2шт.

3

K950967

HOUSING

HOUSING brake, left

1шт.

UP TO NO. 11.228.417, dry clutch/NO. 11.228.401, torque converter/NO. 11.228.399, torque converter, Germany only

1шт.

K950968

HOUSING

HOUSING brake, right

1шт.

UP TO NO. 11.228.417, dry clutch/NO. 11.228.401, torque converter/NO. 11.228.399, torque converter, Germany only

1шт.

3

K953976

HOUSING

brake, left

1шт.

STARTING WITH NO. 11.228.418, dry clutch/NO. 11.228.402, torque converter/NO. 11.228.400, torque converter, Germany only

1шт.

K953977

HOUSING

HOUSING brake, right

1шт.

STARTING WITH NO. 11.228.418, dry clutch/NO. 11.228.402, torque converter/NO. 11.228.400, torque converter, Germany only

1шт.

4

K940851

COVER

2шт.

5

K940852

GASKET

2шт.

6

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

SET

8шт.

92-4

LOCK WASHER,1/4"

8шт.

7

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

26шт.

K11482

PIN

DOWEL

4шт.

UP TO NO. 11.235.960

1шт.

7

K621841

DOWEL

DOWEL

4шт.

STARTING WITH NO. 11.235.961/UP TO NO. 11.236.090

1шт.

7

K900105

PIN

DOWEL

4шт.

STARTING WITH NO. 11.236.091

1шт.

92-8

LOCK WASHER,1/2"

26шт.

8

K608509

STUD

36шт.

K30134

PIN

DOWEL

4шт.

UP TO NO. 11.235.960

1шт.

8

K622905

PIN

DOWEL

4шт.

STARTING WITH NO. 11.235.961/NO. 11.236.090

1шт.

8

K900105

PIN

DOWEL

4шт.

STARTING WITH NO. 11.236.091

1шт.

K607239

NUT

36шт.

19223

X

WASHER spring

36шт.

9

K628855

O-RING,3mm Thk x 244mm ID, 75 Duro

2шт.

10

K929253

SHAFT

10 teeth

2шт.

11

K19186

BEARING, ROLLER

4шт.

12

K907514

SHIM,.003" Thk

1шт.

K907515

SHIM,.010" Thk

1шт.

13

K904256

SPACER

SPACER

2шт.

14

K627237

BUSHING

SPACER

2шт.

15

K13042

RING, SNAP

RING SNAP

4шт.

16

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

17

K929045

COVER

end

2шт.

18

K622324

KEY

4шт.

19

K964842

SPARE PART

order K965006

2шт.

UP TO NO. 11.227.871, TORQUE CONVERTER

1шт.

19

K965006

SHAFT ASSY.

DRIVE final

2шт.

UP TO NO. 11.227.871, TC/ STARTING WITH NO. 11.227.872, TC, EXCEPT FOR:11.227.899/902/904/916/ 11.228.057/059/060/068/070/104/109/110/112/114/134/135/139/414/142/143/144/145/147/148/158/161/164/205

1шт.

20

K945534

LOCK NUT

lock

1шт.

21

K606408

SCREW

1шт.

21a

K955057

WASHER

.230" thick

1шт.

UP TO NO. 11.227.871, TC/ STARTING WITH NO. 11.227.872, TC, EXCEPT FOR:11.227.899/902/904/916/ 11.228.057/059/060/068/070/104/109/110/112/114/134/135/139/414/142/143/144/145/147/148/158/161/164/205

1шт.

21a

K955058

WASHER

.206" thick

1шт.

UP TO NO. 11.227.871, TC/ STARTING WITH NO. 11.227.872, TC, EXCEPT FOR:11.227.899/902/904/916/ 11.228.057/059/060/068/070/104/109/110/112/114/134/135/139/414/142/143/144/145/147/148/158/161/164/205

1шт.

22

K924150

SHIELD

COVER dust

2шт.

23

K611464

BOLT

16шт.

K617176

NUT

16шт.

24

K19186

BEARING, ROLLER

2шт.

25

K949382

WHEEL

49 teeth

2шт.

26

K621565

RING, SNAP

RING SNAP

4шт.

UP TO NO. 11.227.871, TORQUE CONVERTER

1шт.

26

K621565

RING, SNAP

RING SNAP

2шт.

UP TO NO. 11.227.871, TC/ STARTING WITH NO. 11.227.872, TC, EXCEPT FOR:11.227.899/902/904/916/ 11.228.057/059/060/068/070/104/109/110/112/114/134/135/139/414/142/143/144/145/147/148/158/161/164/205

1шт.

27

A7893

ROLLER BEARING,3.375" ID x 1.172"

1шт.

27

A28134

BEARING CUP

BEARING roller

2шт.

28

K623698

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

2шт.

29

K924148

COLLAR

2шт.

30

K623457

OIL SEAL

2шт.

31

K623432

SEAL,101.6mm ID x 127mm OD x 15.88mm Thk

2шт.

32

K945535

HOUSING

right-hand

1шт.

K945536

HOUSING

left-hand

1шт.

33

K940849

SHIM

.003"

1шт.

K940848

SHIM,0.13mm Thk

.005"

1шт.

K940847

SHIM,0.38mm Thk

.015"

1шт.

K940846

SHIM

.030"

1шт.

34

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

12шт.

92-7

LOCK WASHER,7/16"

12шт.

35

K623539

O-RING,0.139" Thk x 5.734" ID, -256, Cl 5, 75 Duro

2шт.

36

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

37

K940850

COVER

2шт.

38

K923221

GASKET,0.51mm Thk

2шт.

39

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

SET

20шт.

192-21

LOCK WASHER,3/8"

20шт.

40

K623825

PLUG

2шт.

K626793

WASHER

2шт.

41

K12362

PLUG

4шт.

42

K623758

PLUG

2шт.
