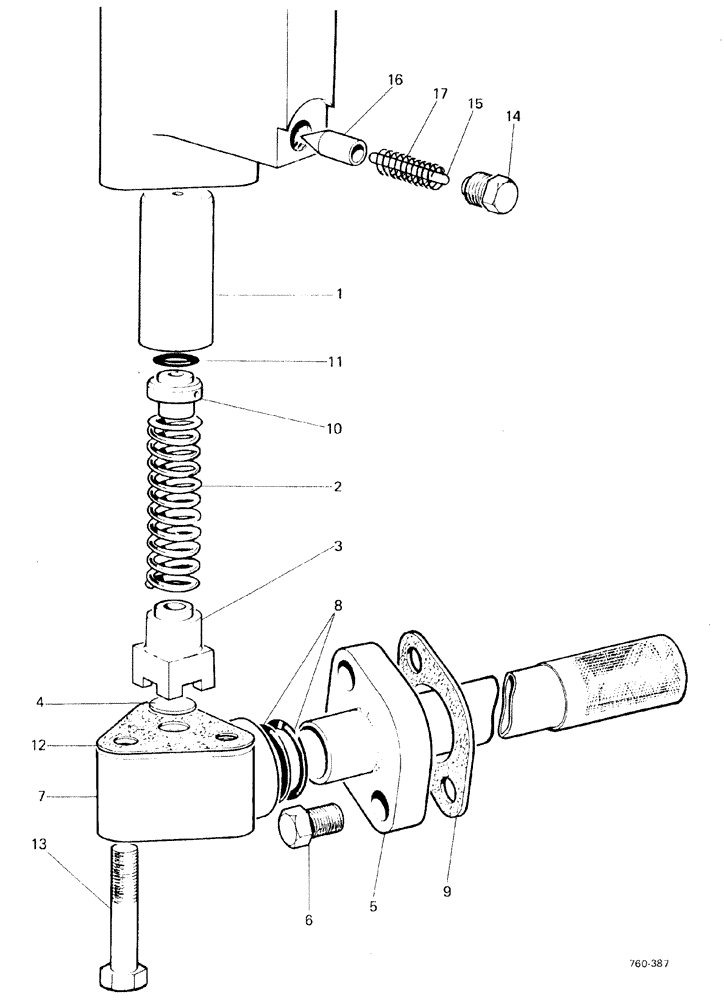

Запчасти Case 580F (088) - GEAR BOX, PUMP AND FILTER (27) - REAR AXLE SYSTEM

1

K926889

PLUNGER

dry clutch

1шт.

2

K625214

SPRING

dry clutch

1шт.

3

K921152

VALVE

HOUSING, dry clutch

1шт.

4

K623815

PLUG

special, dry clutch

1шт.

5

K948830

TUBE

suction, dry clutch

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

SET, dry clutch

2шт.

192-21

LOCK WASHER,3/8"

Dry clutch

2шт.

7

K948827

ADAPTER

dry clutch

1шт.

8

K15028

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

dry clutch

2шт.

9

K948788

GASKET

dry clutch

1шт.

10

K926864

VALVE

ASSEMBLY, dry clutch

1шт.

11

K24701

O-RING,0.426" ID x 0.566" OD x 0.07"

O, dry clutch

1шт.

12

K926867

GASKET

dry clutch

1шт.

13

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Dry clutch

3шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

Dry clutch

3шт.

14

K945045

VALVE

RETAINER, dry clutch

1шт.

15

K620027

NEEDLE

roller, dry clutch

1шт.

16

K921370

SYMBOLS

SYMBOL VALVE, dry clutch

1шт.

17

K625216

SPRING

dry clutch

1шт.
