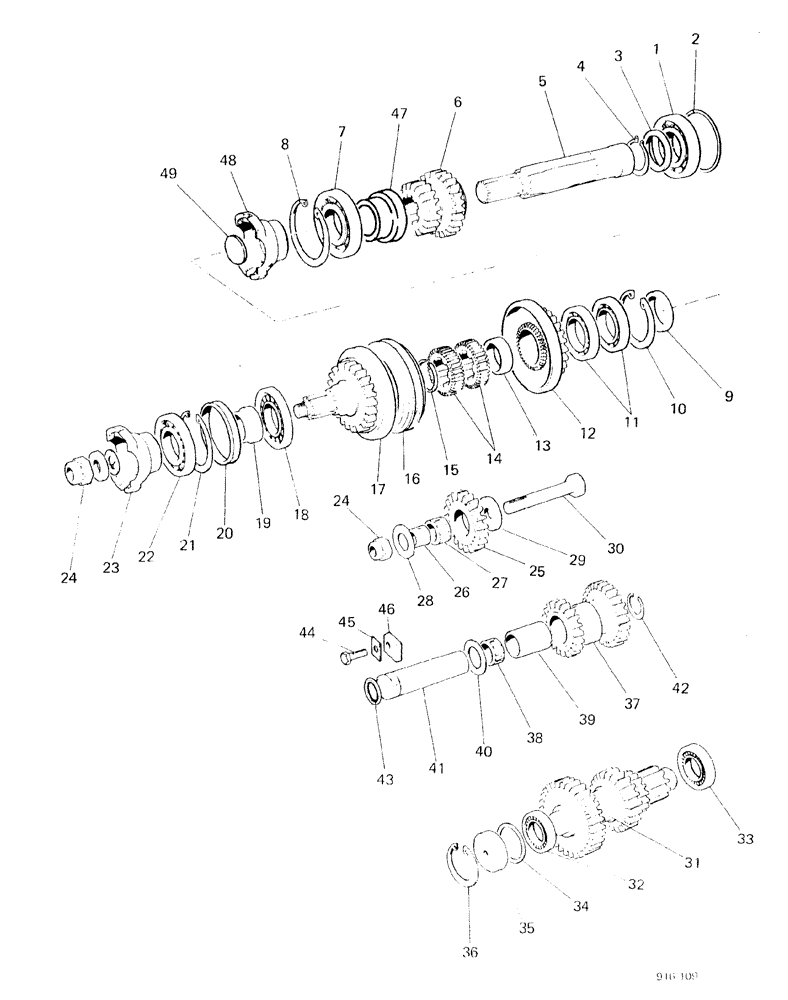

Запчасти Case 580F (076) - DRIVESHAFT AND LAYSHAFT (27) - REAR AXLE SYSTEM

1

K19047

BALL BEARING

BEARING

1шт.

2

K908372

SHIM,.003" Thk

1шт.

K908373

SHIM,.005" Thk

1шт.

K908374

SHIM,.020" Thk

1шт.

3a

K940671

WASHER

SPACER, dry clutch

2шт.

4a

K12922

RING, SNAP

RING SNAP dry clutch

3шт.

5a

K948618

DRIVE SHAFT

dry clutch

1шт.

3b

K940671

WASHER

SPACER, torque converter

1шт.

4b

K12922

RING, SNAP

RING SNAP torque converter

1шт.

5b

K950644

SHAFT

torque converter

1шт.

6

K948769

GEAR

PINION

1шт.

7

K19081

BALL BEARING

BALL

1шт.

8

K16296

RING

snap

1шт.

9

K946539

BUSHING

SPARE PART SPACER, dry clutch

1шт.

10

K17023

CIRCLIP

RING snap, dry clutch

1шт.

11

K19135

BEARING, BALL

dry clutch

2шт.

12

K946538

GEAR

dry clutch

1шт.

13

K946540

BUSHING

SPACER, dry clutch

1шт.

14

K928226

GEAR

CLUTCH dog, fixed, dry clutch

2шт.

15

K621896

RING, SNAP

RING SNAP dry clutch

1шт.

16

K928223

GEAR

CONE ASSEMBLY sliding, dry clutch

1шт.

K926266

SPRING

dry clutch

6шт.

17

K948574

GEAR

driving, dry clutch

1шт.

18

K12275

BEARING, ROLLER, CYL

dry clutch

1шт.

19

K948768

BUSHING

dry clutch

1шт.

20

K627303

BUSHING

SPACER, dry clutch

1шт.

21

K11481

RING, SNAP

RING SNAP dry clutch

2шт.

22

K19047

BALL BEARING

BEARING, dry clutch

1шт.

23

D70106

YOKE

dry clutch

1шт.

24

K617307

LOCK NUT

dry clutch

1шт.

K626758

WASHER

dry clutch

1шт.

K626459

SEALING WASHER

WASHER sealing, dry clutch

1шт.

25

K946530

GEAR

idler, dry clutch

1шт.

26

K946532

BUSHING

idler, dry clutch

1шт.

27

A58069

NEEDLE BEARING,25.39mm ID x 33.37mm OD x 19.05mm W

needle roller, dry clutch

1шт.

28

K912793

WASHER

thrust, dry clutch

2шт.

29

K946533

WASHER

SPARE PART dry clutch

1шт.

30

K200766

BOLT

dry clutch

1шт.

131-64

LOCK NUT,5/8"-11, GC

dry clutch

1шт.

31

K948575

SHAFT

lay, gearbox

1шт.

32

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

1шт.

32

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

BEARING tapered roller

1шт.

33

D59595

TAPERED BEARING

1шт.

33

D48896

BEARING

tapered roller

1шт.

34

K914702

SHIM,50.8mm ID x 67.06mm OD x 0.05mm Thk

1шт.

K914703

SHIM,.003" Thk

1шт.

K914704

SHIM,50.8mm ID x 67.06mm OD x 0.18mm Thk

1шт.

K914705

SHIM,50.8mm ID x 67.06mm OD x 0.25mm Thk

1шт.

35

K948802

BUSHING

SPACER

1шт.

36

K621483

RING, SNAP

RING SNAP

1шт.

37

K950036

GEAR

lay, reverse, dry clutch

1шт.

38

K620273

BEARING, NEEDLE,28.57mm ID x 38.1mm OD x 25.02mm W

roller, dry clutch

2шт.

39

K946537

BUSHING

SPACER, dry clutch

1шт.

40

K626714

WASHER

thrust, dry clutch

2шт.

41

K950035

PIN

SHAFT bearing, dry clutch

1шт.

42

K621765

RING, SNAP

RING SNAP dry clutch

1шт.

43

K623561

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

dry clutch

1шт.

44

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SET, dry clutch

1шт.

45

K626423

WASHER

TAB, dry clutch

1шт.

46

K928456

PLATE

locking, dry clutch

1шт.

47

K948657

BUSHING

torque converter

1шт.

48

D70107

YOKE

UNIVERSAL JOINT YOKE PLUG core, torque converter

1шт.

49

41-24

PLUG

1шт.
