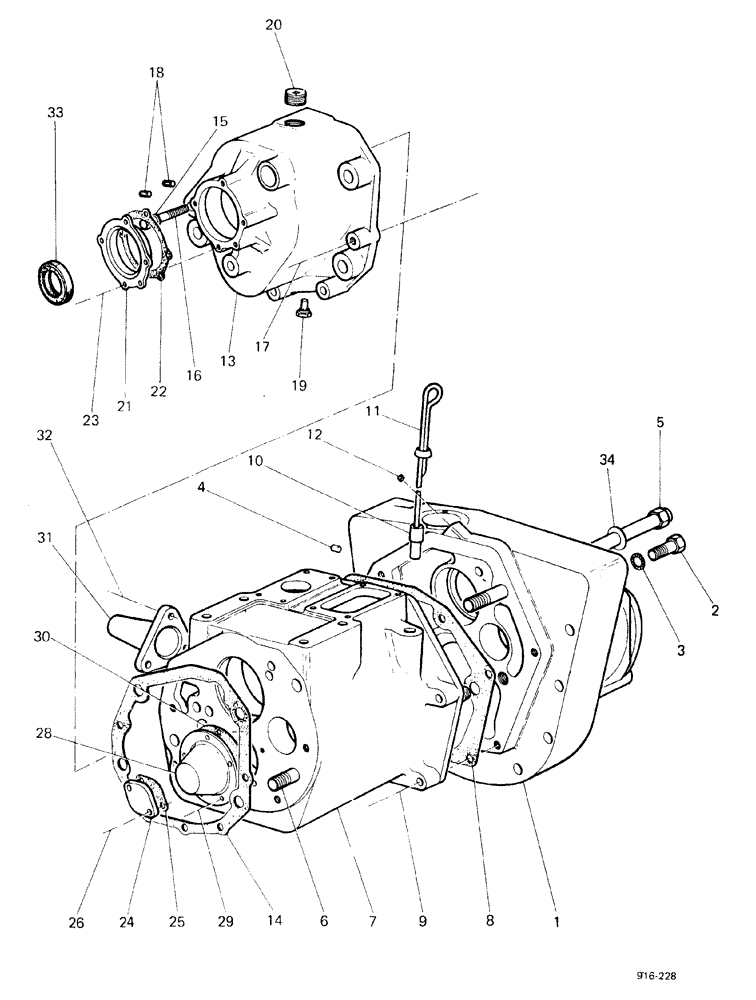

Запчасти Case 580F (074) - GEAR BOX CASE (27) - REAR AXLE SYSTEM

1

K964848

PLATE

COVER

1шт.

2

26-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 8

BOLT

4шт.

3

K626389

BEARING WASHER

WASHER

4шт.

4

K948791

PLUG

1шт.

5a

K200735

STUD

upper, dry clutch

2шт.

5b

K200739

STUD

upper, torque converter

2шт.

6a

K200741

STUD

lower, torque converter

2шт.

6d

K200737

STUD

lower, left-hand, dry clutch

1шт.

6c

K200738

STUD

lower, right-hand, dry clutch

1шт.

K607331

NUT

4шт.

7

K948624

HOUSING

CASE

1шт.

8

K948763

GASKET

1шт.

9

13-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

5шт.

92-7

LOCK WASHER,7/16"

5шт.

10

K83884

SLEEVE

1шт.

11

K952253

DIPSTICK

1шт.

12

K606061

SCREW

locking

3шт.

13a

K948678

COVER

PLATE cover, dry clutch

1шт.

13b

K948668

COVER

torque converter

1шт.

14a

K948764

GASKET

dry clutch

1шт.

14b

K948765

GASKET

torque converter

1шт.

15

K948786

WASHER

special, dry clutch

1шт.

K11756

WASHER

dry clutch

1шт.

K14674

WASHER

dry clutch

1шт.

16

K600665

BOLT

dry clutch

1шт.

17a

13-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

Dry clutch

3шт.

92-7

LOCK WASHER,7/16"

Dry clutch

3шт.

17b

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

Torque converter

4шт.

92-7

LOCK WASHER,7/16"

Torque converter

4шт.

18

K616001

SCREW

locking, dry clutch

2шт.

19

K19581

PLUG

dry clutch

1шт.

K19501

WASHER

dry clutch

1шт.

20

K12362

PLUG

1шт.

21

K948674

HOUSING

dry clutch

1шт.

22

K948679

GASKET

dry clutch

1шт.

23

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SET, dry clutch

4шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

Dry clutch

4шт.

24

K948787

COVER

COVER, torque converter

1шт.

25

K948788

GASKET

torque converter

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

SET, torque converter

2шт.

192-21

LOCK WASHER,3/8"

Torque converter

2шт.

28

K946426

COVER

dry clutch

1шт.

29

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

SET, dry clutch

5шт.

K19480

SPRING WASHER

spring, dry clutch

5шт.

30

K946427

GASKET

dry clutch

1шт.

31

K953347

BRACKET

1шт.

32

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

SETSCREW

3шт.

92-7

LOCK WASHER,7/16"

3шт.

33

K623448

SEAL

oil

1шт.

34

K623515

SEAL,16.38mm ID x 25.53mm OD x 3.2mm Thk

WASHER, torque converter

4шт.

34

K623515

SEAL,16.38mm ID x 25.53mm OD x 3.2mm Thk

WASHER, dry clutch

5шт.
