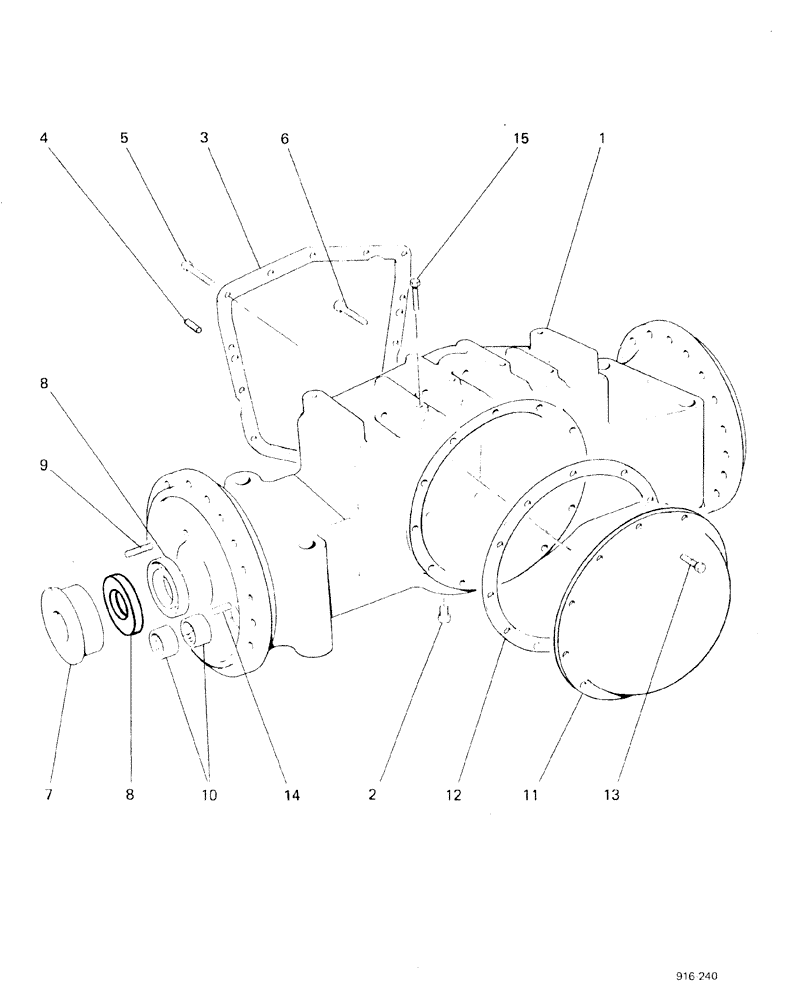

Запчасти Case 580F (072) - REAR AXLE CASE (27) - REAR AXLE SYSTEM

1

K949749

SHAFT

CASE rear axle

1шт.

UP TO NO. 11.228.417, dry clutch/NO. 11.228.401, torque converter/NO. 11.228.399, torque converter

1шт.

1

K955077

SHAFT

CASE rear axle

1шт.

STARTING WITH NO. 11.228.418, dry clutch/NO. 11.228.402, torque converter/NO. 11.228.400, torque converter

1шт.

2

K623826

PLUG

flanged

1шт.

K626315

WASHER

special

1шт.

3

K948762

GASKET

1шт.

4

K621826

PIN

DOWEL

2шт.

5

13-772

BOLT,Hex, 7/16" - 14 x 4-1/2", Gr 5

5шт.

6

13-764

BOLT,Hex, 7/16" - 14 x 4", Gr 5

9шт.

92-7

LOCK WASHER,7/16"

14шт.

7

K200090

SEAL

HOUSING oil

2шт.

8

K13353

SEAL,44.45mm ID x 80.96mm OD x 12.7mm Thk

oil

4шт.

9

K947891

BREATHER

2шт.

10

K30835

BUSHING

4шт.

UP TO NO. 11.228.417, dry clutch/NO. 11.228.401, torque converter/NO. 11.228.399, torque converter

1шт.

11

K15222

COVER

SPARE PART

1шт.

12

K15228

GASKET

1шт.

13

K603001

HARDWARE

SETSCREW

12шт.

92-7

LOCK WASHER,7/16"

12шт.

14

K30134

PIN

DOWEL

4шт.

UP TO NO. 11.235.960

1шт.

14

K622905

PIN

DOWEL

4шт.

STARTING WITH NO. 11.235.961/UP TO NO. 11.236.090

1шт.

14

K900105

PIN

DOWEL

4шт.

STARTING WITH NO. 11.236.091

1шт.

15

K603148

SCREW

BOLT breather

1шт.
