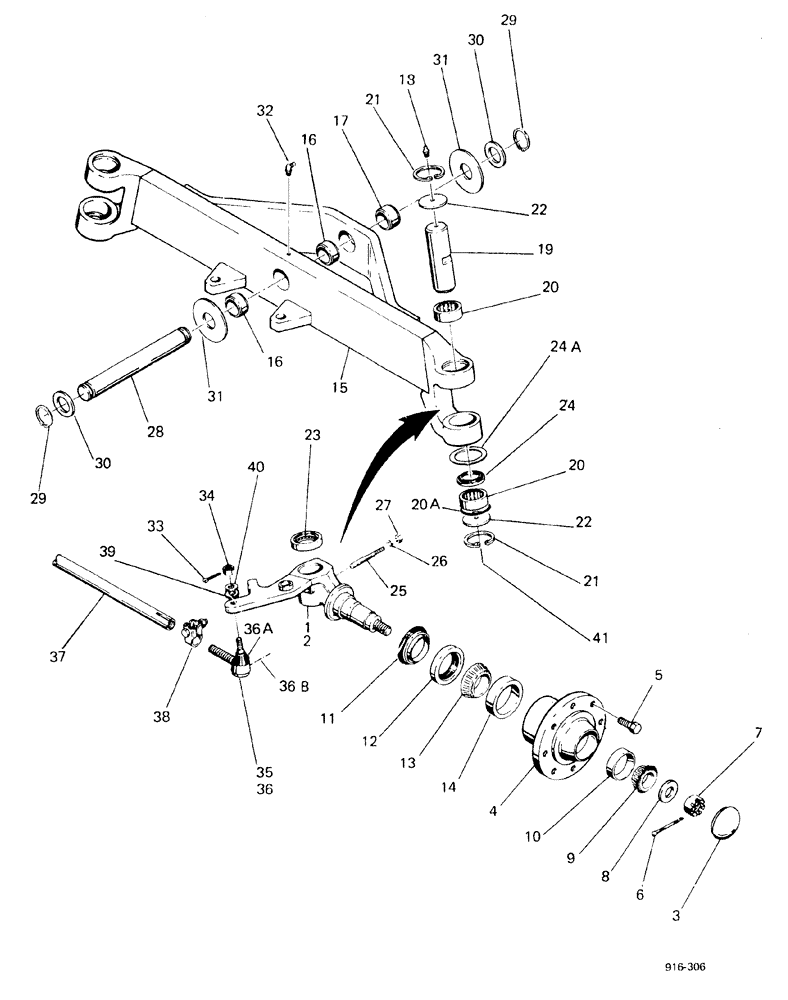

Запчасти Case 580F (102) - FRONT AXLE (25) - FRONT AXLE SYSTEM

1

D76439

KNUCKLE

ASSY. SPINDLE, right-hand

1шт.

2

D76440

STEERING KNUCKLE

SPINDLE, left-hand

1шт.

3

A61450

BEARING CAP,3.155" ID x 3.41" OD x 1.38"

2шт.

4

A66678

HUB

WHEEL front

2шт.

5

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

16шт.

6

132-99

COTTER PIN,3/16" x 2"

2шт.

7

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

2шт.

8

D74951

WASHER

2шт.

9

G15215

ROLLER BEARING

2шт.

10

G15214

BEARING CUP

RACE

2шт.

11

A61449

SEAL,64.97mm ID x 94.67mm OD x 12.45mm Thk

2шт.

12

A61448

OIL SEAL,67.26mm ID x 97.16mm OD x 12.7mm Thk

2шт.

13

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

2шт.

14

A61446

BEARING CUP

RACE

2шт.

15

D65948

AXLE, FRONT

1шт.

16

D69221

BUSHING,45.23mm ID x 57.16mm OD x 25mm L

2шт.

17

D69222

BUSHING

1шт.

18

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

2шт.

19

D72337

PIN,50.8mm OD x 168.91mm L

2шт.

20

L30246

BEARING

4шт.

20a

A23904

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

Seal

4шт.

21

A27463

SNAP RING,2.375", Int, #237

4шт.

22

D72371

WASHER,3.17mm ID x 60.2mm OD x 4.57mm Thk

SPACER

4шт.

23

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

2шт.

24

D61297

SEAL,50.8mm ID x 60.22mm OD x 6.4mm Thk

2шт.

24a

D72372

WASHER,50.85mm ID x 69.6mm OD x 0.81mm Thk

RACE

2шт.

25

D57486

PIN

2шт.

26

92-8

LOCK WASHER,1/2"

2шт.

27

25-118

NUT,1/2"-20, G5

2шт.

28

D69220

PIN

1шт.

29

D25280

SNAP RING,#175, Ext

2шт.

30

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

2шт.

31

E36365

WASHER

1шт.

32

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

33

132-50

COTTER PIN,1/8" x 1 1/4"

2шт.

34

25-1310

SLOTTED NUT,5/8"-18, G5

2шт.

35

D71713

END

END rod, right-hand, order D88491

1шт.

35

D88491

BALL JOINT,7/8" - 18 x 3-3/4"

END rod, right-hand

1шт.

36

D71714

BALL JOINT

END rod, left-hand, order D88492

1шт.

36

D88492

BALL JOINT,7/8" - 18 x 3-3/4"

END rod, left-hand

1шт.

36a

D80438

COVER

dust

1шт.

36b

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

37

D71885

TIE-ROD

TIE ROD TUBE

1шт.

38

D75809

CLAMP

2шт.

39

195-2087

WASHER,0.81" ID x 1.12" OD x 0.15" Thk

2шт.

40

195-2074

WASHER,11/16" x 1 1/4" x .134"

1шт.

41

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

2шт.
