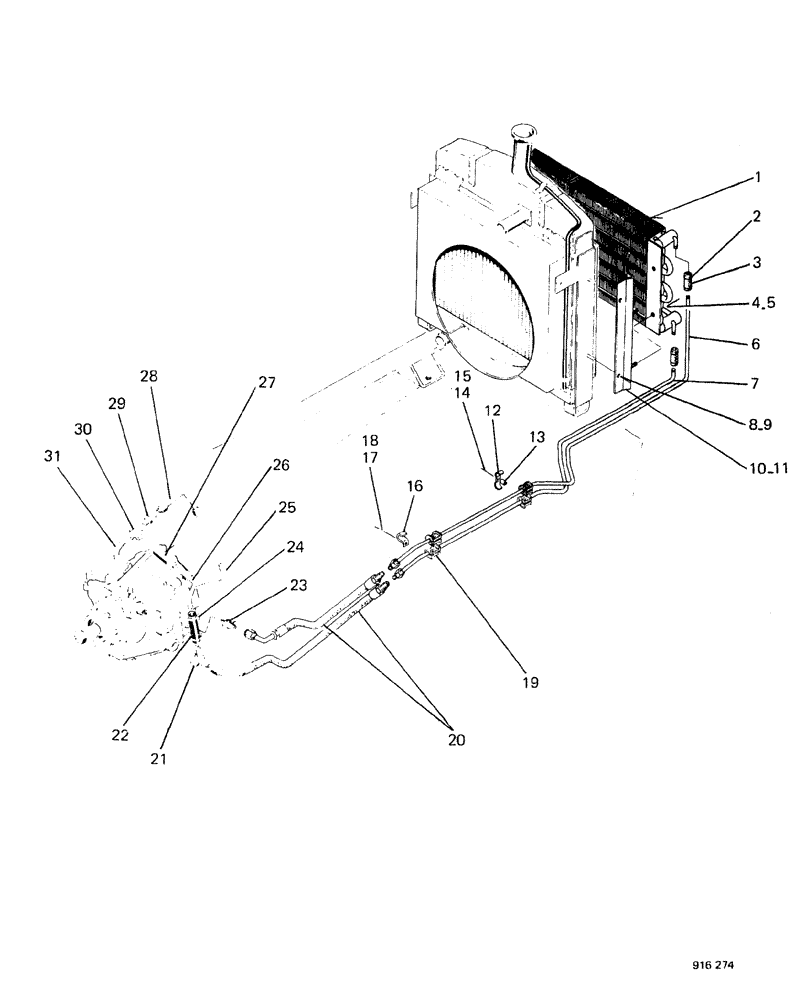

Запчасти Case 580F (137A) - HYDRAULIQUE POWER SHUTTLE TRANSMISSION, WITH OIL COOLER M QUAY (21) - TRANSMISSION

1

D76097

COOLER

oil

1шт.

2

D69050

HOSE

2шт.

3

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

4шт.

4

92-5

LOCK WASHER,5/16"

4шт.

5

9635082

NUT,5/16" - 18, Gr 5

4шт.

6

E37803

TUBE

1шт.

7

E37802

TUBE

1шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

25-106

NUT,3/8"-16, G5

4шт.

10

E37801

SUPPORT

BRACKET right-hand

1шт.

11

E37799

SUPPORT

BRACKET left-hand

1шт.

12

D68646

CLAMP

1шт.

13

D71789

BUSHING

SPACER

1шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

15

92-6

LOCK WASHER,3/8"

1шт.

16

D68638

CLAMP

1шт.

17

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

18

92-6

LOCK WASHER,3/8"

1шт.

19

D67296

GROMMET

rubber

4шт.

20

D68686

HOSE,12.7mm ID x 480mm L, SAE 100R3

2шт.

21

D68972

CONNECTOR, ELEC

CONNECTOR

1шт.

22

D55583

HOSE,12.7 mm ID x 101.60 mm, SAE 100R3

1шт.

23

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

1шт.

24

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

25

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ELBOW

1шт.

26

D68914

TUBE,12 mm OD x 111, 75 mm L

1шт.

27

D48540

VALVE POPPET

1шт.

28

D68262

TUBE

1шт.

29

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

1шт.

30

221-423

TEE,3/8" NPT

Connector

1шт.

31

D48539

FITTING

ELBOW

1шт.
