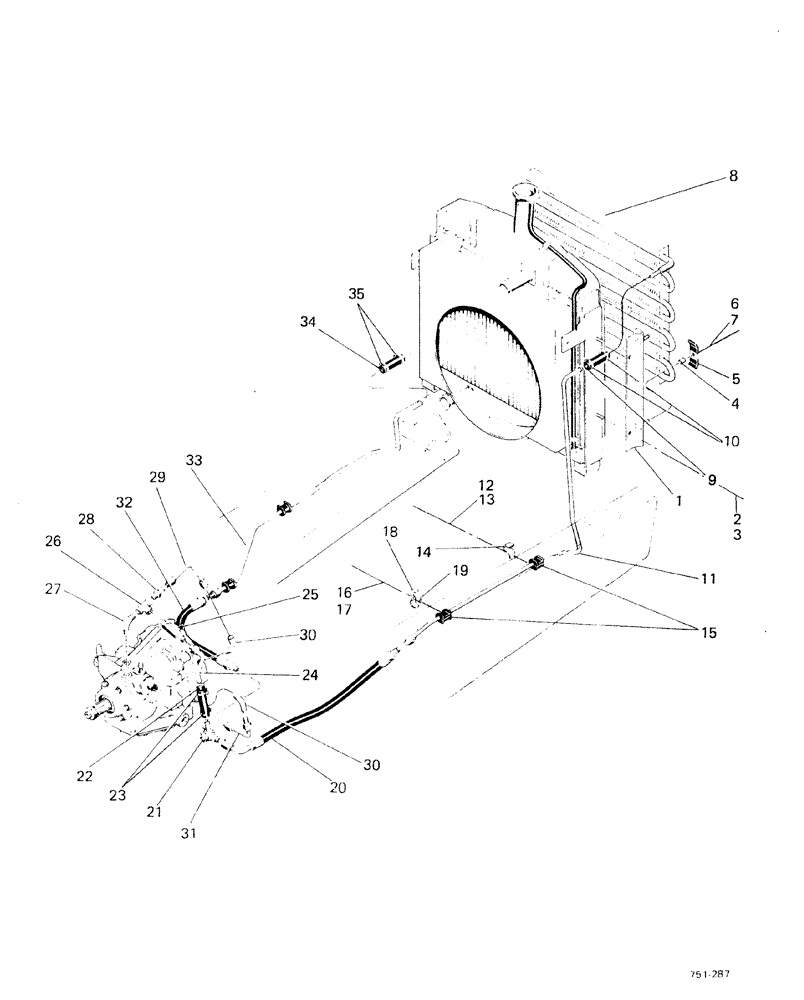

Запчасти Case 580F (136) - HYDRAULICS POWER SHUTTLE TRANSMISSION, WITH OIL COOLER PEERLESS (21) - TRANSMISSION

1

D69685

BRACKET

SPARE PART

2шт.

2

92-6

LOCK WASHER,3/8"

4шт.

3

25-106

NUT,3/8"-16, G5

4шт.

4

D95745

BUSHING

SPACER

4шт.

5

D41160

CLAMP

4шт.

6

92-6

LOCK WASHER,3/8"

4шт.

7

25-106

NUT,3/8"-16, G5

4шт.

8

D69665

COOLER

oil

1шт.

9

D69050

HOSE

1шт.

10

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

11

D69676

TUBE

1шт.

12

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

D68638

CLAMP

1шт.

15

D67296

GROMMET

rubber

4шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

17

92-6

LOCK WASHER,3/8"

3шт.

18

D68646

CLAMP

3шт.

19

D71789

BUSHING

SPACER

3шт.

20

D68686

HOSE,12.7mm ID x 480mm L, SAE 100R3

1шт.

21

D68972

CONNECTOR, ELEC

CONNECTOR

1шт.

22

D55583

HOSE,12.7 mm ID x 101.60 mm, SAE 100R3

1шт.

23

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

24

D68914

TUBE,12 mm OD x 111, 75 mm L

1шт.

25

D48540

VALVE POPPET

1шт.

26

221-423

TEE,3/8" NPT

Connector

1шт.

27

D48539

FITTING

ELBOW, 90°

1шт.

28

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

1шт.

29

D68262

TUBE

1шт.

30

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ELBOW

2-1шт.

31

D68260

TUBE

1шт.

32

D68687

HOSE

1шт.

33

D69678

TUBE

1шт.

UP TO NO. 3.733.043, TORQUE CONVERTER

1шт.

33

D76365

TUBE

1шт.

STARTING WITH NO. 3.733.044, TORQUE CONVERTER

1шт.

34

D69050

HOSE

1шт.

35

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.
