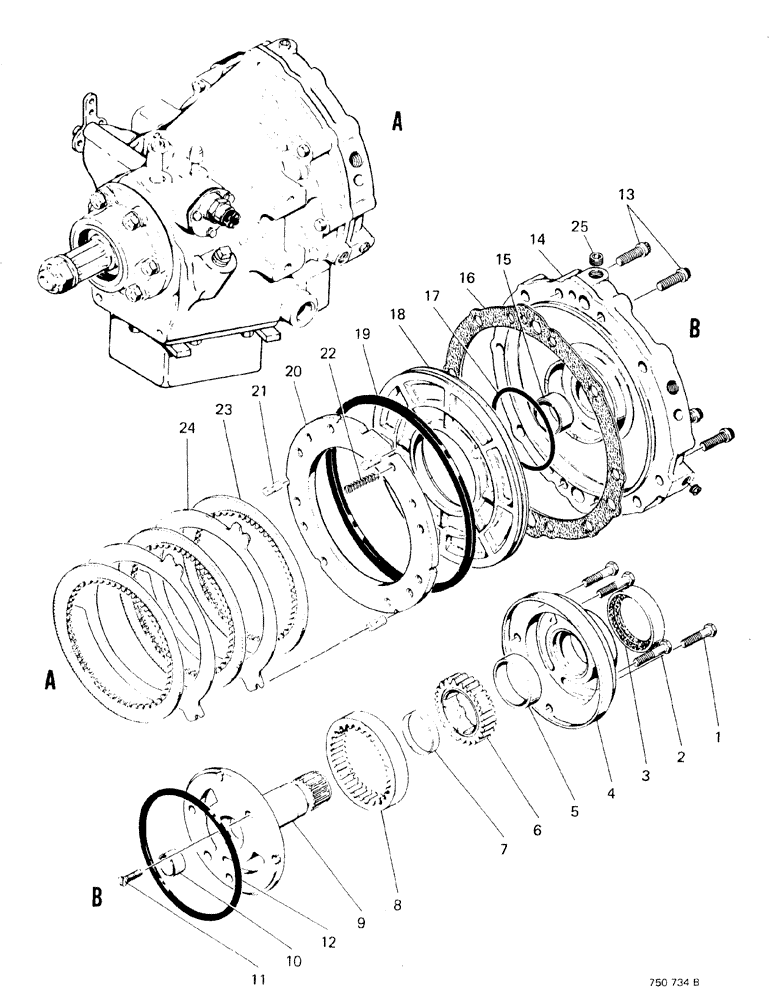

Запчасти Case 580F (068) - TRANSMISSION POWER SHUTTLE PUMP AND CLUTCH (21) - TRANSMISSION

REF

INSTRUCTION

SHUTTLE complete, see Figure 060 - 068

1шт.

1

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

CAP

2шт.

2

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

CAP

2шт.

R29995

PUMP

ASSEMBLY

1шт.

3

L30489

OIL SEAL

1шт.

4

NSS

NOT SOLD SEPARAT

BODY

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR

1шт.

7

NSS

NOT SOLD SEPARAT

BUSHNG

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR

1шт.

9

NSS

NOT SOLD SEPARAT

SUPPORT

1шт.

10

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

11

171-100

SCREW,Sl Flat Hd, #10 - 24 x 3/4"

special

1шт.

12

L30487

GASKET,140.49mm ID x 150.02mm OD x 3.02mm Thk

1шт.

13

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

SCREW

4шт.

D50022

ADAPTER

ASSEMBLY

1шт.

14

NSS

NOT SOLD SEPARAT

ADAPTER

1шт.

15

D50074

BUSHING,34.92mm ID x 38.13mm OD x 17.46mm L

1шт.

16

D50033

GASKET,0.58mm Thk

1шт.

17

D50034

O-RING,0.139" Thk x 3.484" ID

1шт.

18

D50035

PISTON

1шт.

19

D50036

SEALING RING,194.51mm ID x 232.84mm OD x 3.17mm Thk

1шт.

20

D50037

PLATE

1шт.

21

D50038

PIN

dowel

3шт.

22

D50039

SPRING

11шт.

23

D50040

PLATE

clutch

3шт.

24

D50041

CLUTCH PLATE,155.57mm ID x 215.09mm OD x 1.8mm Thk

clutch

2шт.

25

221-841

PLUG

1/4"

1шт.

26

221-849

PLUG,Hex Soc, 1/8"-27

1/8"

2шт.
