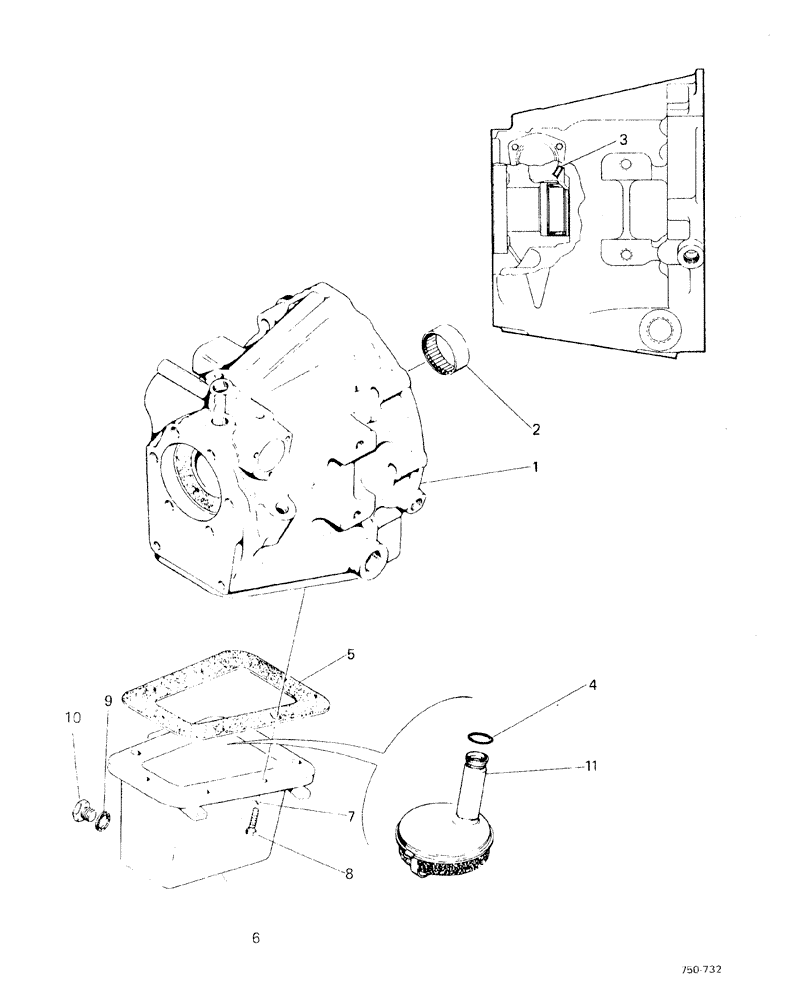

Запчасти Case 580F (064) - TRANSMISSION POWER SHUTTLE (21) - TRANSMISSION

REF

INSTRUCTION

SHUTTLE complete, see Figure 060 - 068

1шт.

D70650

HOUSING

complete

1шт.

1

NSS

NOT SOLD SEPARAT

CASE

1шт.

2

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

1шт.

3

41-1007

PLUG,Cup, 7/16"

1шт.

4

R29797

O-RING,0.07" Thk x 0.739" ID

SEAL

1шт.

5

R29956

GASKET,0.76mm Thk

1шт.

6

R29902

PAN

1шт.

7

92-6

LOCK WASHER,3/8"

7шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAP

7шт.

D73701

PLUG

ASSEMBLY

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG

1шт.

11

D66455

FILTER SCREEN

1шт.
