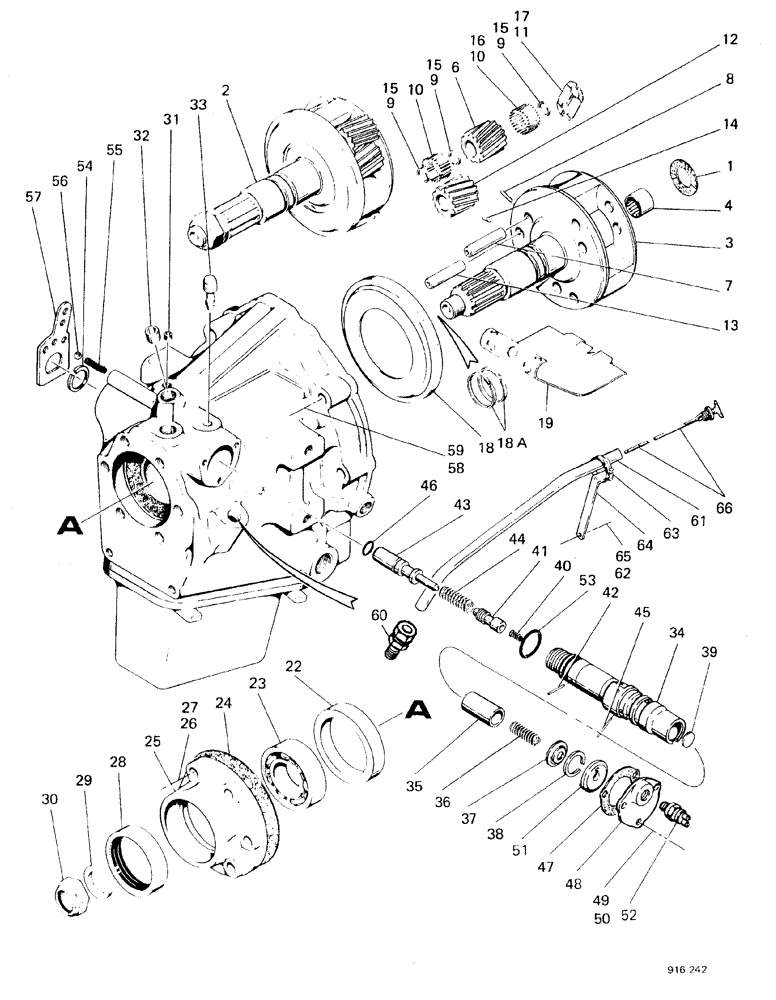

Запчасти Case 580F (060) - TRANSMISSION POWER SHUTTLE (21) - TRANSMISSION

D68971

SPARE PART

SHUTTLE complete, order D75813

1шт.

UP TO NO. 3.732.134

1шт.

D75813

TRANSMISSION

SHUTTLE complete

1шт.

STARTING WITH NO. 3.732.135

1шт.

1

D50055

WASHER, THRUST,22.38mm ID x 44.45mm OD x 1.6mm Thk

1шт.

2

D70665

GEAR

PINION cage and shaft

1шт.

3

NSS

NOT SOLD SEPARAT

CAGE AND SHAFT

1шт.

4

H747964

NEEDLE BEARING,Needle, 20.64mm ID x 26.99mm OD x 22.23mm W

NEEDLE

1шт.

D50030

GEAR

PINION complete

3шт.

6

NSS

NOT SOLD SEPARAT

GEAR pinion

1шт.

7

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

8

NSS

NOT SOLD SEPARAT

PIN

1шт.

9

NSS

NOT SOLD SEPARAT

SPACER

3шт.

10

NSS

NOT SOLD SEPARAT

ROLLER

48шт.

11

NSS

NOT SOLD SEPARAT

PLATE

2шт.

D50031

KIT

pinion, complete

3шт.

12

NSS

NOT SOLD SEPARAT

GEAR pinion

1шт.

13

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

14

NSS

NOT SOLD SEPARAT

PIN

1шт.

15

NSS

NOT SOLD SEPARAT

SPACER

3шт.

16

NSS

NOT SOLD SEPARAT

ROLLER

48шт.

17

NSS

NOT SOLD SEPARAT

PLATE

2шт.

18

D50087

RING

COVER

1шт.

18a

D50080

RING,40.25mm ID x 44.36mm OD x 2.38mm Thk

SEAL

2шт.

19

D50056

GUARD

PLATE baffle

1шт.

22

D50057

SLEEVE

1шт.

23

ST291

BEARING, BALL,35mm ID x 80mm OD x 21mm W

1шт.

24

D50058

GASKET

1шт.

25

D50059

BEARING HOUSING

1шт.

26

92-7

LOCK WASHER,7/16"

6шт.

27

13-718

SCREW,Hex, 7/16" - 14 x 1 1/8", Gr 5

6шт.

28

D50060

SEAL,53.98mm ID x 77.93mm OD x 13.11mm Thk

1шт.

29

D65247

WASHER

1шт.

30

131-37

LOCK NUT,3/4"-16

1шт.

31

221-849

PLUG,Hex Soc, 1/8"-27

1/8"

3шт.

32

221-843

PLUG,Hex Soc, 3/8"-18

1шт.

33

D50062

BREATHER

1шт.

D77473

VALVE

ASSEMBLY

1шт.

34

NSS

NOT SOLD SEPARAT

BODY

1шт.

35

D50089

VALVE

1шт.

36

D50090

SPRING

1шт.

37

D50091

RETAINER,9.53mm ID x 28.42mm OD x 1.34mm Thk

1шт.

38

D50092

RING

snap

1шт.

39

41-12

PLUG,Exp, 3/4"

1шт.

40

D77476

SPRING

1шт.

41

D77474

SPOOL

1шт.

42

138-28

LOCK PIN,5/64" x 1", Slotted

1шт.

43

D75488

PLUNGER

1шт.

Part of Valve Plunger Kit P/N D75490

1шт.

44

D77475

SPRING

1шт.

45

138-59

LOCK PIN,1/8" x 7/8", Slotted

1шт.

Part of Valve Plunger Kit P/N D75490

1шт.

46

D77581

KIT

SEAL

1шт.

Part of Valve Plunger Kit P/N D75490

1шт.

47

D50066

GASKET,0.41mm Thk

1шт.

Part of Valve Plunger Kit P/N D75490

1шт.

48

D72822

COVER

1шт.

49

92-4

LOCK WASHER,1/4"

3шт.

REF

INSTRUCTION

SHUTTLE complete, see Figure 054 - 062

1шт.

50

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

3шт.

51

D70660

CAM

1шт.

52

S113435

SWITCH

1шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Seal

1шт.

53

D37156

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

1шт.

54

A75171

SNAP RING,#112, 1.060", Ext

1шт.

55

S47892

SPRING

1шт.

56

211-9

BALL,5/16" Dia

1шт.

Part of Valve Plunger Kit P/N D75490

1шт.

57

D77621

LEVER

1шт.

58

13-752

BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 5

6шт.

59

92-7

LOCK WASHER,7/16"

6шт.

60

222-3006

FITTING,1 1/2"-12 x 3/4" NPT

1шт.

61

D72029

TUBE

1шт.

62

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAP

1шт.

63

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

1шт.

64

D72032

BRACKET

STRAP

1шт.

65

92-6

LOCK WASHER,3/8"

1шт.

66

D78855

DIPSTICK,653.8mm L

1шт.

D75490

PLUNGER

KIT valve and plunger, Includes: REF. 43, 45 - 47 and 56

1шт.
