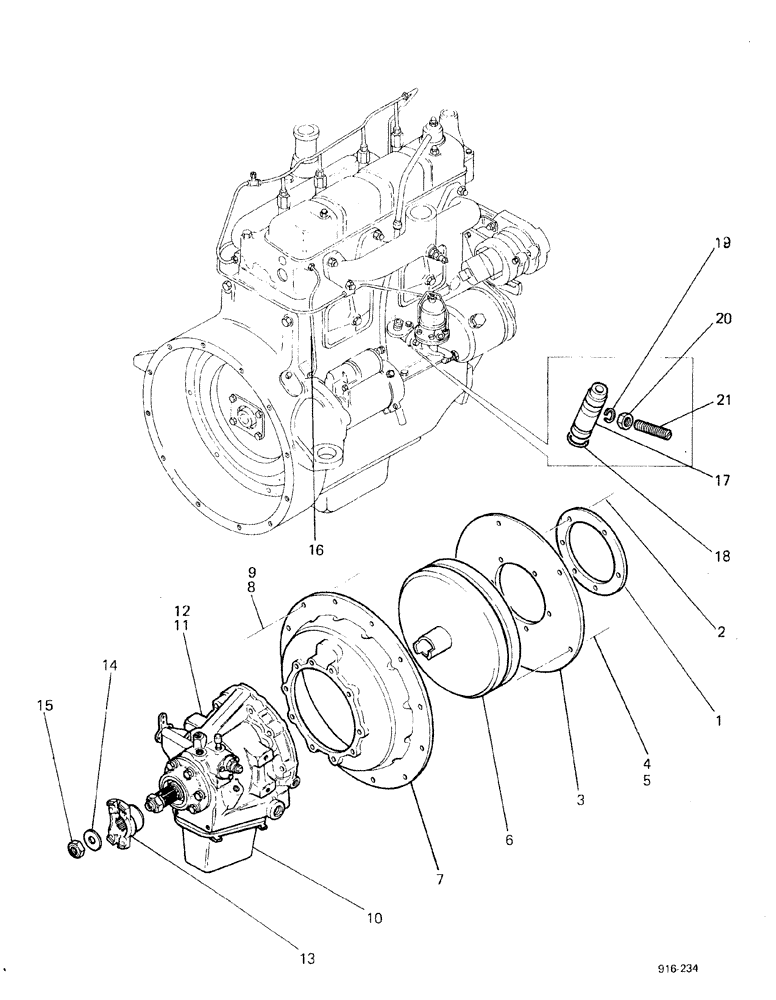

Запчасти Case 580F (058) - TORQUE CONVERTER AND PARTS - TACHOMETER (21) - TRANSMISSION

1

D81592

PLATE

1шт.

2

121-203

BOLT,Lock Place, Hex, 3/8" - 24 x 1/2", Gr 8

CAP

6шт.

3

A15670

PLATE

1шт.

4

121-103

BOLT,Lock Place, Hex, 5/16" - 18 x 5/8", Gr 8

6шт.

5

A15672

WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk

6шт.

6

D71758

CONVERTER

torque

1шт.

7

D48445

HOUSING

torque converter

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAP

12шт.

9

92-6

LOCK WASHER,3/8"

12шт.

10

REF

INSTRUCTION

TRANSMISSION, see Figure 060

1шт.

11

92-7

LOCK WASHER,7/16"

6шт.

12

13-752

BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 5

6шт.

13

D69669

YOKE

UNIVERSAL JOINT YOKE

1шт.

14

D73180

WASHER

1шт.

15

131-91

LOCK NUT,3/4"-16, G8

1шт.

16

K902765

PIPE

oil

1шт.

17

K928253

CONNECTOR, ELEC

CONNECTOR COUPLING

1шт.

18

K16351

O-RING,3.53mm Thk x 24.99mm ID

2шт.

19

92-7

LOCK WASHER,7/16"

1шт.

20

25-147

JAM NUT,Jam, 7/16"-14, G5

1шт.

21

K928254

SCREW,7/16" - 14 x 1 5/16"

1шт.
