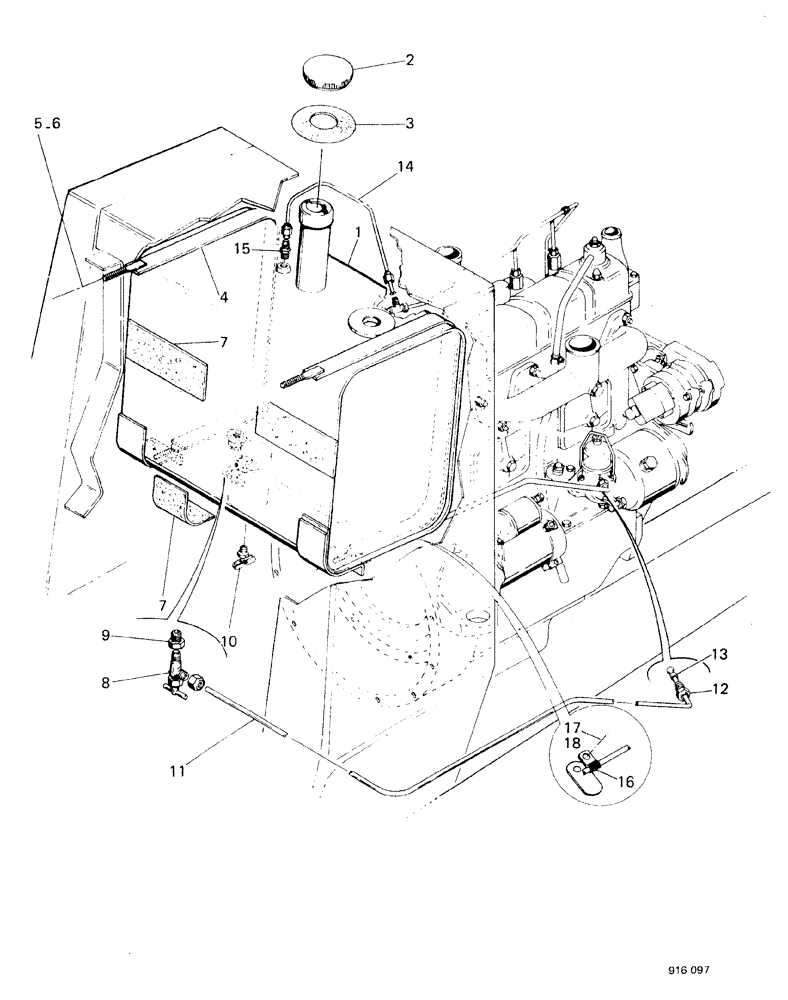

Запчасти Case 580F (054) - FUEL TANK AND FUEL LINES (10) - ENGINE

1

D64997

TANK

fuel, order D75422

1шт.

UP TO NO. 3.702.018, DRY CLUTCH/NO. 3.733.133, TORQUE CONVERTER

1шт.

1

D75422

FUEL TANK

1шт.

STARTING WITH NO. 3.702.019, DRY CLUTCH/NO. 3.723.134, TORQUE CONVERTER

1шт.

2

A51390

CAP

CAP fuel tank

1шт.

3

R14780

GROMMET

1шт.

4

D68888

STRIP

STRAP

2шт.

5

195-25

WASHER,3/8"

4шт.

6

25-106

NUT,3/8"-16, G5

8шт.

7

D64999

FOAM

MOUNT rubber

4шт.

8

D68887

COCK

VALVE

1шт.

9

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

1шт.

UP TO NO. 3.702.018, DRY CLUTCH/NO. 3.733.133, TORQUE CONVERTER

1шт.

10

217-81

VALVE

FITTING

1шт.

11

D68706

TUBE

1шт.

222-503

TUBE NUT,1/2"-20

FITTING

1шт.

12

NSS

NOT SOLD SEPARAT

BODY

1шт.

13

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

14

K950957

PIPE

TUBE

1шт.

15

D73844

FITTING

ADAPTER without thermostart

1шт.

16

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

17

195-18

WASHER,1/4"

1шт.

18

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.
