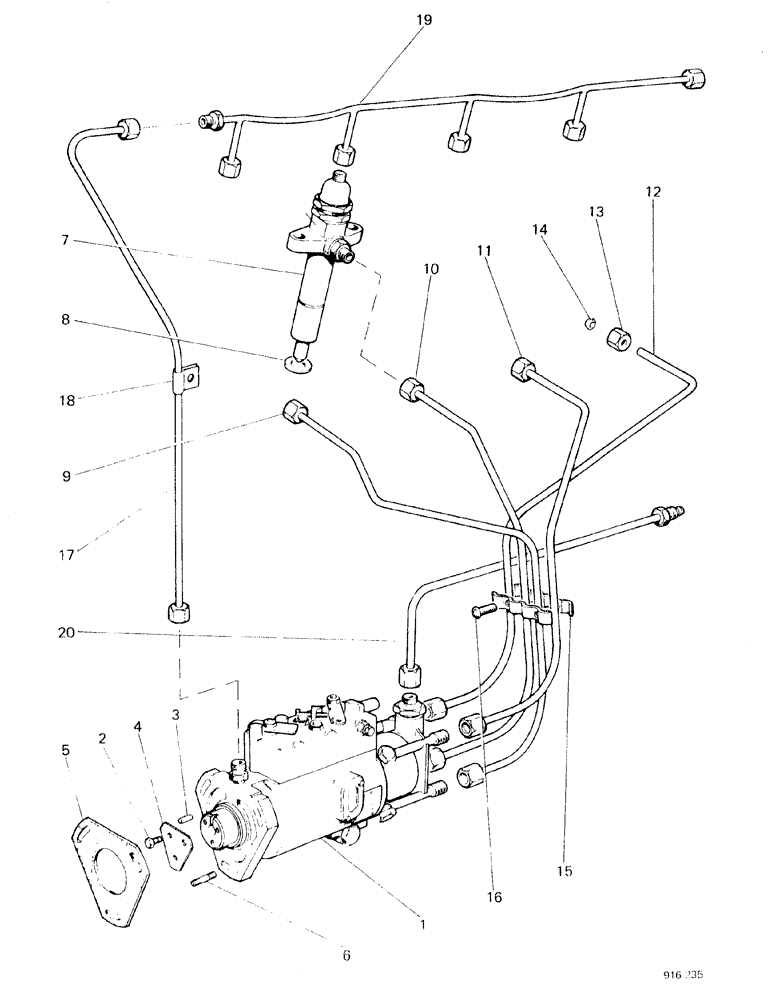

Запчасти Case 580F (030) - ENGINE, INJECTION PUMP, INJECTORS AND PIPES (10) - ENGINE

1

K942521

PUMP

injection, order K954826

1шт.

UP TO NO. 130699, DRY CLUTCH/NO. 143999, TORQUE CONVERTER

1шт.

1

K956420

PUMP, FUEL INJECTION

PUMP, INJECTION

1шт.

STARTING WITH NO. 130700, DRY CLUTCH/NO. 144000, TORQUE CONVERTER

1шт.

2

K612804

SCREW

SET

3шт.

3

K14577

DOWEL

1шт.

4

K914503

LARGE PLATE

PLATE, LARGE TABWASHER

1шт.

5

K68349

GASKET

1шт.

6

K608135

STUD

3шт.

9635082

NUT,5/16" - 18, Gr 5

3шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

3шт.

K19471

WASHER

3шт.

7

K942175

NOZZLE CAP

INJECTOR, order K954826 + K620460 + K36374

4шт.

UP TO NO. 130449, DRY CLUTCH/NO. 142755, TORQUE CONVERTER

1шт.

K904261

NOZZLE CAP

HOLDER

1шт.

UP TO NO. 130449, DRY CLUTCH/NO. 142755, TORQUE CONVERTER

1шт.

K942176

NOZZLE CAP

1шт.

8

F62390

WASHER,10mm ID x 21.01mm OD x 2.08mm Thk

1шт.

7

K954826

INJECTOR ASSY.

4шт.

STARTING WITH NO. 130450, DRY CLUTCH/NO. 142756, TORQUE CONVERTER

1шт.

K954827

NOZZLE INJECTION

HOLDER

1шт.

STARTING WITH NO. 130450, DRY CLUTCH/NO. 142756, TORQUE CONVERTER

1шт.

K942176

NOZZLE CAP

1шт.

8

F62390

WASHER,10mm ID x 21.01mm OD x 2.08mm Thk

1шт.

K620460

ADAPTER

4шт.

STARTING WITH NO. 130450, DRY CLUTCH/NO. 142756, TORQUE CONVERTER

1шт.

K36374

WASHER

4шт.

STARTING WITH NO. 130450, DRY CLUTCH/NO. 142756, TORQUE CONVERTER

1шт.

9

K918915

PIPE

fuel, NO. 1

1шт.

10

K918916

PIPE

fuel, NO. 2

1шт.

11

K954828

PIPE,18.281" L

fuel, NO. 3

1шт.

12

K954829

PIPE,20.75" L

fuel, NO. 4

1шт.

13

K900845

NUT

NUT

8шт.

14

K947203

FERRULE

SLEEVE

8шт.

15

K900844

CLAMP

CLIP

2шт.

16

K12217

SCREW,0.185" x 5/8"

2шт.

K11109

NUT

2шт.

92-3

LOCK WASHER,#10

2шт.

17

K907035

PIPE

leak-off

1шт.

18

K621610

CLIP

1шт.

19

K904250

INJECTION PIPE

leak-off

1шт.

20

K918923

PIPE

fuel

1шт.
