Запчасти Case 580F (026) - ENGINE OIL PUMP (10) - ENGINE

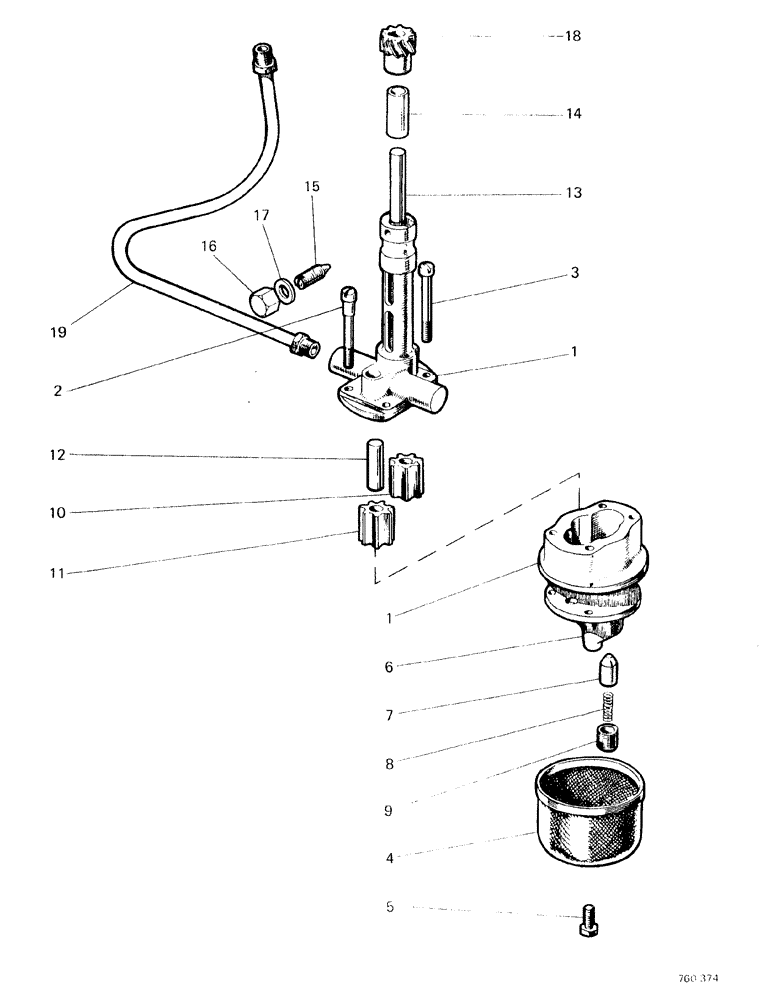

Схема запчастей Case 580F - (026) - ENGINE OIL PUMP (10) - ENGINE
16
5
17
2
15
6
9
13
4
14
18
12
8
10
1
19
3
7
1
11

Артикул

Название

Примечание

Количество

K946365

ENGINE OIL PUMP

PUMP oil complete, order K953896

1шт.

UP TO NO. 130211, DRY CLUTCH/NO. 141060, TORQUE CONVERTER

1шт.

K953896

PUMP

oil complete, order K954067

1шт.

STARTING WITH NO. 130212, DRY CLUTCH/NO. 141061, TORQUE CONVERTER

1шт.

UP TO NO. 130740, DRY CLUTCH/NO. 145194, TORQUE CONVERTER

1шт.

K954067

PUMP, ENGINE OIL

complete

1шт.

STARTING WITH NO. 130741, DRY CLUTCH/NO. 145195, TORQUE CONVERTER

1шт.

1

K961009

HOUSING

bracket and gear

1шт.

2

K902061

STEP BOLT

BOLT special

2шт.

3

13-434

BOLT,Hex, 1/4" - 20 x 2-1/8", Gr 5

2шт.

25-104

NUT,1/4"-20, G5

4шт.

92-4

LOCK WASHER,1/4"

4шт.

4

K12013

FILTER

SCREEN

1шт.

5

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

SET

1шт.

92-4

LOCK WASHER,1/4"

1шт.

K900752

VALVE

RELIEF ASSEMBLY

1шт.

UP TO NO. 130211, DRY CLUTCH/NO. 141060, TORQUE CONVERTER

1шт.

6

K900753

NO LONGER SERVICED

COVER

1шт.

UP TO NO. 130211, DRY CLUTCH/NO. 141060, TORQUE CONVERTER

1шт.

7

K67461

PLUNGER

1шт.

UP TO NO. 130211, DRY CLUTCH/NO. 141060, TORQUE CONVERTER

1шт.

8

K12961

SPRING

1шт.

UP TO NO. 130211, DRY CLUTCH/NO. 141060, TORQUE CONVERTER

1шт.

9

K30013

ADJUSTER

SCREW

1шт.

UP TO NO. 130211, DRY CLUTCH/NO. 141060, TORQUE CONVERTER

1шт.

K953815

VALVE

RELIEF ASSEMBLY

1шт.

STARTING WITH NO. 130212, DRY CLUTCH/NO. 141061, TORQUE CONVERTER

1шт.

6

K953009

COVER

1шт.

STARTING WITH NO. 130212, DRY CLUTCH/NO. 141061, TORQUE CONVERTER

1шт.

7

K953008

PLUNGER

1шт.

STARTING WITH NO. 130212, DRY CLUTCH/NO. 141061, TORQUE CONVERTER

1шт.

8

K12961

SPRING

1шт.

STARTING WITH NO. 130212, DRY CLUTCH/NO. 141061, TORQUE CONVERTER

1шт.

9

K953010

SCREW,3/8" x 9/16"

adjusting

1шт.

STARTING WITH NO. 130212, DRY CLUTCH/NO. 141061, TORQUE CONVERTER

1шт.

10

K902058

PINION

ROTOR driving

1шт.

UP TO NO. 130740, DRY CLUTCH/NO. 145194, TORQUE CONVERTER

1шт.

10

K953370

ROTOR

driving

1шт.

STARTING WITH NO. 130741, DRY CLUTCH/NO. 145195, TORQUE CONVERTER

1шт.

11

K949997

ROTOR

driven

1шт.

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

2шт.

UP TO NO. 130740, DRY CLUTCH/NO. 145194, TORQUE CONVERTER

1шт.

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

1шт.

STARTING WITH NO. 130741, DRY CLUTCH/NO. 145195, TORQUE CONVERTER

1шт.

12

K902060

SPINDLE

SPINDEL

1шт.

13

K928252

SPINDLE

driving

1шт.

UP TO NO. 130740, DRY CLUTCH/NO. 145194, TORQUE CONVERTER

1шт.

13

K953375

SPINDLE

SPINDEL driving

1шт.

STARTING WITH NO. 130741, DRY CLUTCH/NO. 145195, TORQUE CONVERTER

1шт.

14

K30016

BUSHING

1шт.

15

K928254

SCREW,7/16" - 14 x 1 5/16"

locating

1шт.

16

K607516

NUT

1шт.

17

K14674

WASHER

1шт.

18

K902051

GEAR

PINION

1шт.

19

K904180

PIPE

oil

1шт.
