Запчасти Case 580F (022) - ENGINE, PISTONS, AND CRANKSHAFT (10) - ENGINE

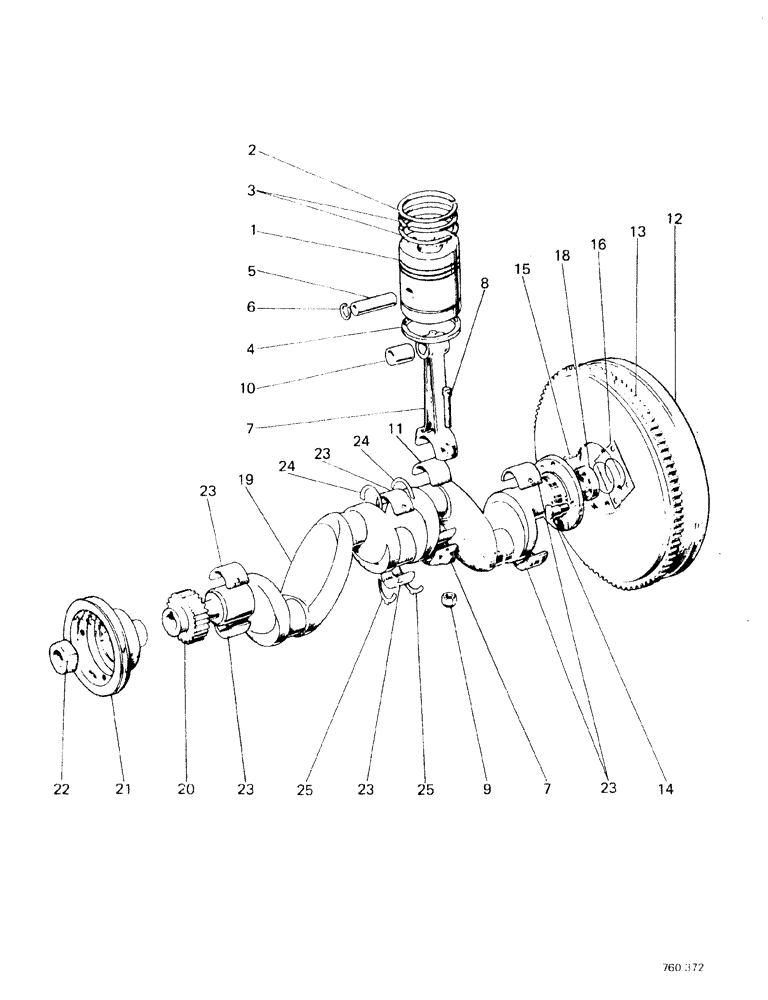

Схема запчастей Case 580F - (022) - ENGINE, PISTONS, AND CRANKSHAFT (10) - ENGINE
23
23
6
11
23
22
3
23
20
24
2
14
25
7
8
9
13
15
16
4
18
5
19
12
7
25
24
23
21
1
10

Артикул

Название

Примечание

Количество

1

K949474

PISTON & RINGS KIT

PIN gudgeon, complete

4шт.

2

K943881

RING, PISTON

NO.1

1шт.

3

K943882

RING, PISTON

NO. 2 and 3

2шт.

4

K917409

SCRAPER

RING piston

1шт.

5

K904370

PIN

gudgeon

1шт.

6

K34501

RING, SNAP

RING SNAP

2шт.

1

K949719

PISTON

PIN gudgeon, complete, +.20"

4шт.

2

K943885

RING, PISTON

NO. 1

1шт.

3

K943886

RING, PISTON

NO. 2 and 3

2шт.

4

K917412

PISTON

RING scraper

1шт.

5

K904370

PIN

gudgeon

1шт.

6

K34501

RING, SNAP

RING SNAP

2шт.

1

K949720

PISTON

PIN gudgeon, complete, +.40"

4шт.

2

K943888

RING, PISTON

NO. 1

1шт.

3

K943889

RING, PISTON

NO. 2 and 3

2шт.

4

K917415

PISTON

RING scraper

1шт.

5

K904370

PIN

gudgeon

1шт.

6

K34501

RING, SNAP

RING SNAP

2шт.

7

K80043

ROD, CONNECTING

complete

4шт.

8

K905198

BOLT

2шт.

9

K623151

LOCK NUT

2шт.

10

K31669

BEARING

1шт.

11

K911904

HALF-BEARING, CRANKS

see Figure 022 - 024

8шт.

Part of Crank Shaft and Bearings P/N K962157

1шт.

12a

K948644

FLYWHEEL

RING starter, complete, dry clutch

1шт.

12b

K948608

FLYWHEEL

RING starter, complete, torque converter

1шт.

13

K946819

GEAR

RING starter

1шт.

14

K903431

STEP BOLT

4шт.

15

K10629

PIN

DOWEL

1шт.

16

K910883

WASHER

TAB, dry clutch

1шт.

16

K946238

WASHER

TAB, torque converter

1шт.

129-524

NUT,3/8"-24, G8

4шт.

K903255

DISC

locating

1шт.

18

K19167

BALL BEARING,22.23mm ID x 50.8mm OD x 14.29mm W

ball, dry clutch

1шт.

19

K962157

CRANKSHAFT

BEARINGS, Includes Ref. 11, 23, 24, and 25

1шт.

20

K945094

GEAR

34 teeth

1шт.

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

(No. 606)

1шт.

21

K944348

PULLEY

1шт.

22

K623300

NUT

special

1шт.

K626403

WASHER

special

1шт.

23

K928541

HALF-BEARING, CRANKS

main, see Figure 022 - 024

6шт.

Part of Crank Shaft and Bearings P/N K962157

1шт.

24

K928542

SET

WASHER thrust, see Figure 022 - 024

2шт.

Part of Crank Shaft and Bearings P/N K962157

1шт.

K928560

THRUST WASHER

WASHER thrust, + .005"

2шт.

K928562

WASHER, THRUST

+ .020"

2шт.

25

K928543

SET

WASHER thrust, see Figure 022 - 024

2шт.

Part of Crank Shaft and Bearings P/N K962157

1шт.

K928561

WASHER

thrust, + .005"

2шт.

K928563

RING

WASHER thrust, + .020"

2шт.

K962158

CRANKSHAFT BEARING

KIT liner

1шт.

K928541

HALF-BEARING, CRANKS

crankshaft

6шт.

K911904

HALF-BEARING, CRANKS

LINER rod

8шт.

K962163

BEARING

KIT liner, - .010"

1шт.

K928554

BEARING SET

crankshaft

6шт.

K912638

HALF-BEARING, CRANKS

LINER rod

8шт.

K962164

BEARING

KIT liner, - .020"

1шт.

K928555

BEARING SET

crankshaft

6шт.

K912639

HALF-BEARING, CRANKS

LINER rod

8шт.

K962165

BEARING

LINER rod, - .030"

1шт.

K928556

BEARING SET

crankshaft

6шт.

K913941

HALF-BEARING, CRANKS

rod

8шт.

K964731

RING

KIT oil control

4шт.

K943881

RING, PISTON

NO. 1

1шт.

K943882

RING, PISTON

NO. 2 and 3

2шт.

K917409

SCRAPER

RING piston

1шт.

K964730

RING

KIToil control, + .020"

4шт.

K943885

RING, PISTON

NO. 1

1шт.

K943886

RING, PISTON

NO. 2 and 3

2шт.

K917412

PISTON

RING scraper

1шт.

K964729

RING

KIT oil control, + .040"

4шт.

K943888

RING, PISTON

NO. 1

1шт.

K943889

RING, PISTON

NO. 2 and 3

2шт.

K917415

PISTON

RING scraper

1шт.

K963484

ADHESIVE

Loctite

1шт.

K964854

Molybdenum disulphide

1шт.

K964857

LINER, ENGINE CYLIND

LINER, used with standard pistons, not original equipment

4шт.

Выбрано товаров: 77
