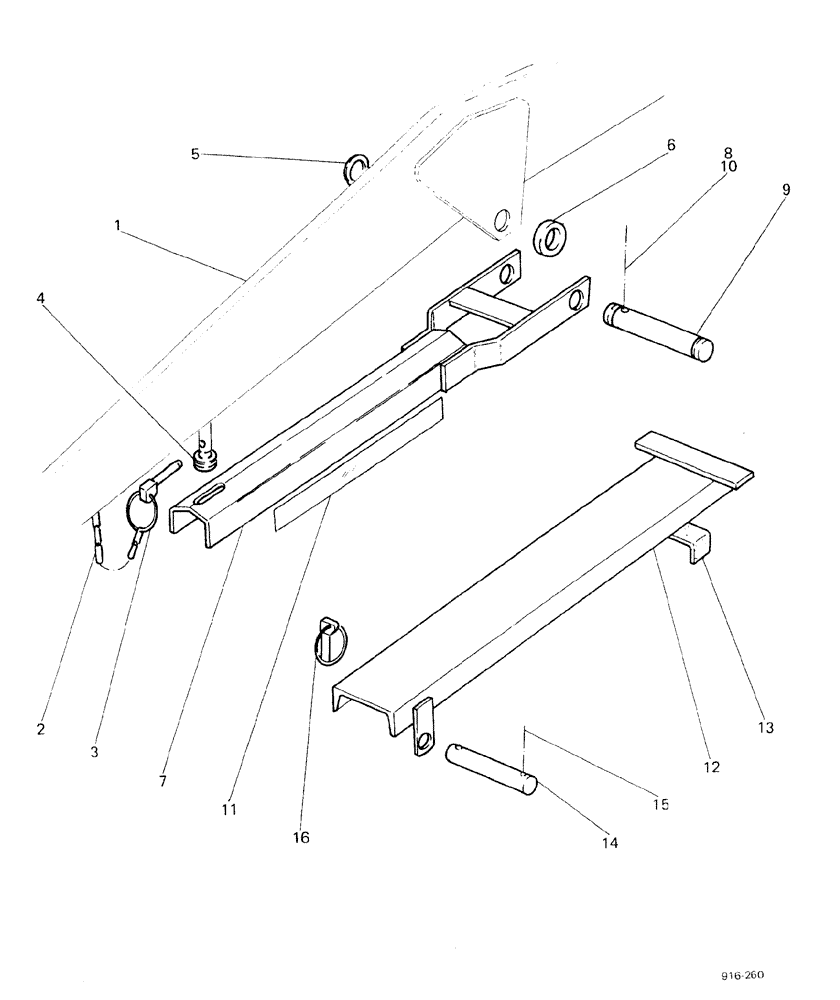

Запчасти Case 580F (374) - CYLINDER SAFETY STOP (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

REF

INSTRUCTION

ARM lift, see Figure 178

1шт.

2

E34956

CHAIN (AG)

1шт.

STARTING WITH NO. 3.702.078, DRY CLUTCH/NO. 3.733.496, TORQUE CONVERTER

1шт.

3

A30338

PIN

klik

1шт.

STARTING WITH NO. 3.702.078, DRY CLUTCH/NO. 3.733.496, TORQUE CONVERTER

1шт.

4

D64797

GROMMET

INSULATION

1шт.

STARTING WITH NO. 3.702.078, DRY CLUTCH/NO. 3.733.496, TORQUE CONVERTER

1шт.

5

D25279

SNAP RING,M35, Int

2шт.

STARTING WITH NO. 3.702.078, DRY CLUTCH/NO. 3.733.496, TORQUE CONVERTER

1шт.

6

E34868

BUSHING

SPACER

1шт.

STARTING WITH NO. 3.702.078, DRY CLUTCH/NO. 3.733.496, TORQUE CONVERTER

1шт.

7

E34863

ARM

STOP safety

1шт.

STARTING WITH NO. 3.702.078, DRY CLUTCH/NO. 3.733.496, TORQUE CONVERTER

1шт.

E15907

INSERT

front

1шт.

UP TO NO. 3.736.894

1шт.

STARTING WITH NO. 3.702.078, DRY CLUTCH/NO. 3.733.496, TORQUE CONVERTER

1шт.

E34870

BUSHING

INSERT rear

1шт.

UP TO NO. 3.736.894

1шт.

STARTING WITH NO. 3.702.078, DRY CLUTCH/NO. 3.733.496, TORQUE CONVERTER

1шт.

8

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

1шт.

STARTING WITH NO. 3.702.078, DRY CLUTCH/NO. 3.733.496, TORQUE CONVERTER

1шт.

9

E34869

PIN

1шт.

STARTING WITH NO. 3.702.078, DRY CLUTCH/NO. 3.733.496, TORQUE CONVERTER

1шт.

10

131-652

LOCK NUT,3/8"-16, GB

1шт.

STARTING WITH NO. 3.702.078, DRY CLUTCH/NO. 3.733.496, TORQUE CONVERTER

1шт.

11

E41288

ADHESIVE

STRIP

2шт.

12

E35376

BAR

STOP safety

1шт.

UP TO NO. 3.702.077, DRY CLUTCH/NO. 3.733.495, TORQUE CONVERTER

1шт.

13

E35421

INSERT

1шт.

UP TO NO. 3.702.077, DRY CLUTCH/NO. 3.733.495, TORQUE CONVERTER

1шт.

14

E35373

AXLE PIN

1шт.

UP TO NO. 3.702.077, DRY CLUTCH/NO. 3.733.495, TORQUE CONVERTER

1шт.

15

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

UP TO NO. 3.702.077, DRY CLUTCH/NO. 3.733.495, TORQUE CONVERTER

1шт.

16

E33945

PIN

1шт.

UP TO NO. 3.702.077, DRY CLUTCH/NO. 3.733.495, TORQUE CONVERTER

1шт.
