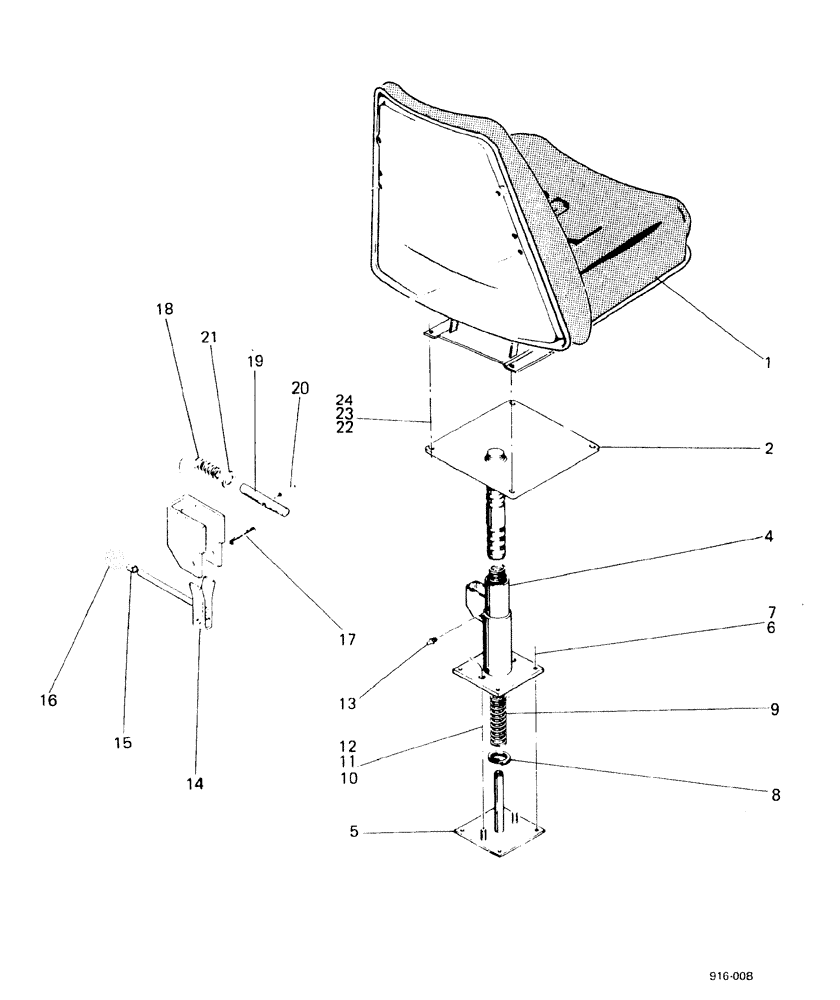

Запчасти Case 580F (364) - SEAT POST, FOR GERMANY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

REF

INSTRUCTION

SEAT, see Figure 366

1шт.

2

E34646

BRACKET

SPARE PART POST

1шт.

4

D67093

SUPPORT

SPARE PART POST complete

1шт.

5

D67116

PLATE

1шт.

6

113-2245

PREV TORQUE BOLT,Locking, 3/8"-16 x 1 1/2", G5

4шт.

7

195-25

WASHER,3/8"

4шт.

8

D49776

SNAP RING,#187, 2.008", Int, Spiral

1шт.

9

E37963

SPRING

1шт.

10

195-25

WASHER,3/8"

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

2шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

14

D38258

LOCK

1шт.

15

D38673

RING

1шт.

16

D38643

KNOB

1шт.

17

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

1шт.

18

D49774

SPRING

1шт.

19

D38261

PIN

1шт.

20

138-94

LOCK PIN,3/16" x 7/8", Slotted

1шт.

21

D49941

SPRING WASHER

1шт.

22

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

23

92-4

LOCK WASHER,1/4"

4шт.

24

25-104

NUT,1/4"-20, G5

4шт.
