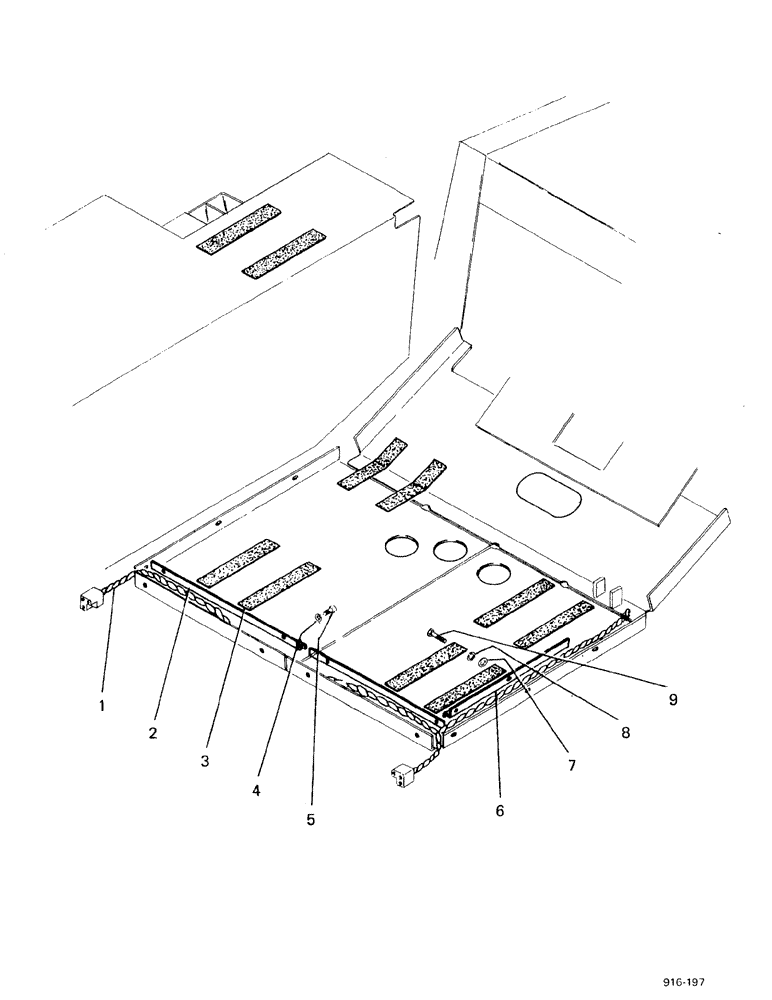

Запчасти Case 580F (344) - WITHOUT CAB, NON SKIDDING PAPER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

REF

INSTRUCTION

HARNESS, see Figure 046

1шт.

2

E37762

GUARD

2шт.

UP TO NO. 3.736.447

1шт.

3

D55216

PAD,2" x 9"

PAPER

10шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Cap

4шт.

6

E37761

GUARD

1шт.

UP TO NO. 3.736.447

1шт.

7

195-25

WASHER,3/8"

2шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAP

2шт.
