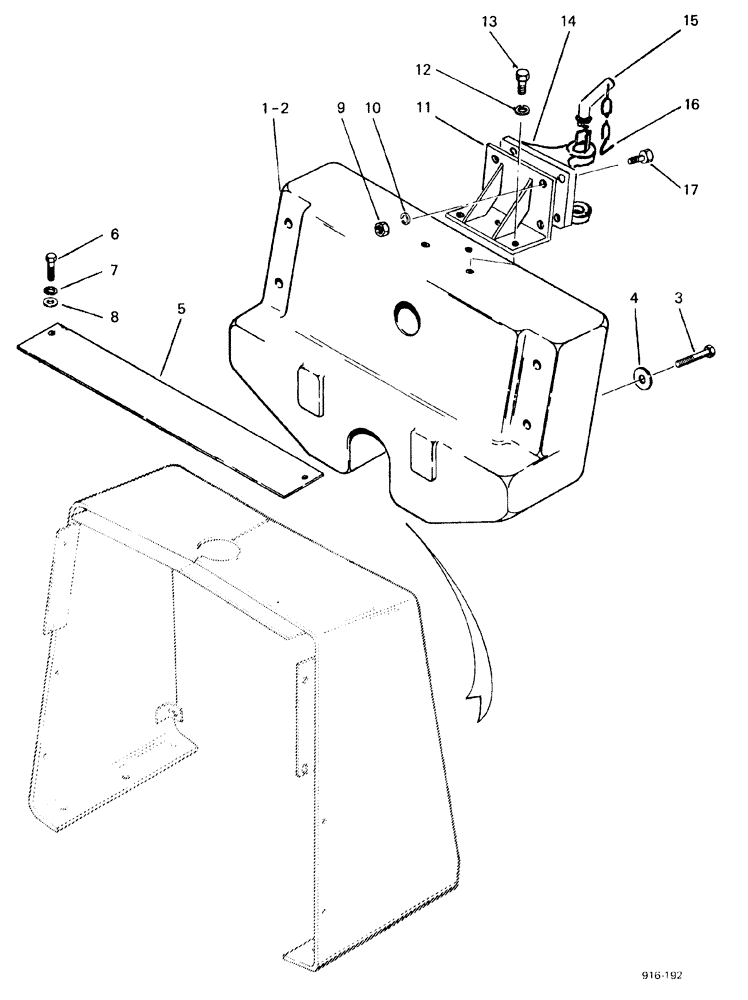

Запчасти Case 580F (342) - FRONT COUNTEWEIGHTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D74743

COUNTERWEIGHT

COUNTERWEIGHT, for axial backhoe with extendahoe

1шт.

2

D74744

COUNTERWEIGHT, for side shift backhoe with extendahoe

1шт.

2

E35661

COUNTERWEIGHT, for side shift backhoe with extendahoe, for Germany only

1шт.

UP TO NO. 3.735.808

1шт.

3

131252

BOLT

4шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

4шт.

5

D73965

PLATE

1шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

195-33

WASHER,1/2"

2шт.

9

25-108

NUT,1/2"-13, G5

For Germany only

4шт.

UP TO NO. 3.735.808

1шт.

10

92-8

LOCK WASHER,1/2"

For Germany only

4шт.

UP TO NO. 3.735.808

1шт.

11

E35662

BRACKET, for Germany only

1шт.

UP TO NO. 3.735.808

1шт.

12

92-8

LOCK WASHER,1/2"

For Germany only

3шт.

UP TO NO. 3.735.808

1шт.

13

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

CAP, for Germany only

3шт.

UP TO NO. 3.735.808

1шт.

14

E35745

HOOK ASSEMBLY, for Germany only

1шт.

UP TO NO. 3.735.808

1шт.

15

E31982

HOOK, for Germany only

1шт.

UP TO NO. 3.735.808

1шт.

16

E31983

PIN, for Germany only

1шт.

UP TO NO. 3.735.808

1шт.

17

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

For Germany only

4шт.

UP TO NO. 3.735.808

1шт.
