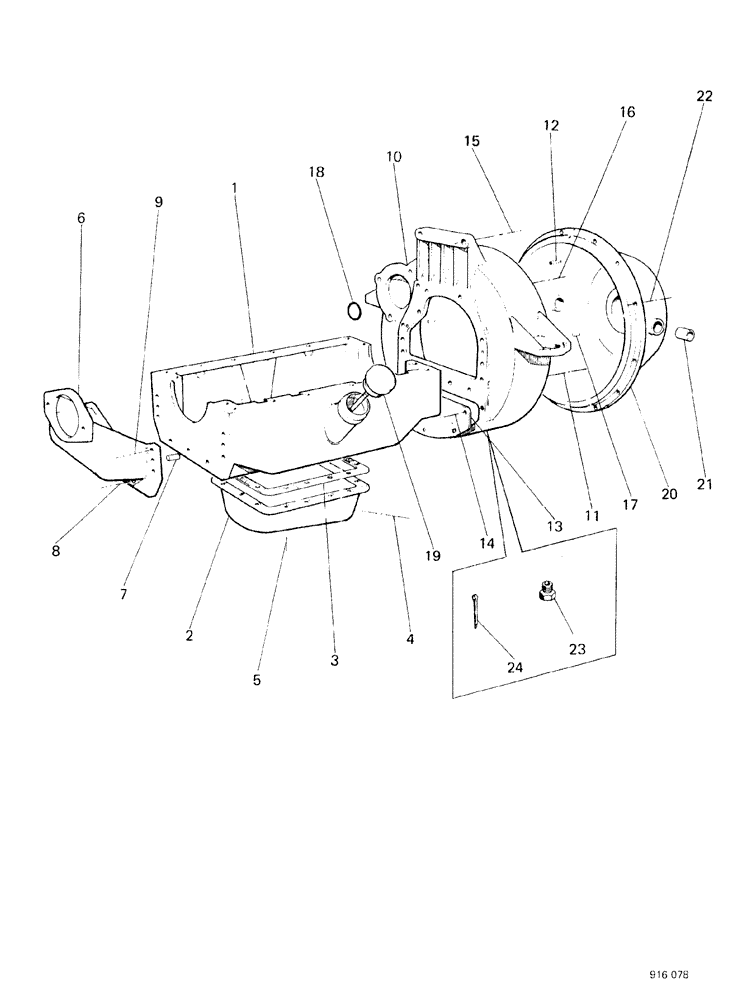

Запчасти Case 580F (020) - SUMP FRAME AND FIXINGS (10) - ENGINE

K956076

CRANKCASE ASSY

FRAME sump, Includes Ref. marked with +

1шт.

Part of Sump Frame Assembly PN K956076

1шт.

1

K945957

MOTOR HOUSING

FRAME sump

1шт.

Part of Sump Frame Assembly PN K956076

1шт.

2

K948959

SUMP

COVER

1шт.

3

K952794

GASKET,1.68mm Thk

1шт.

4

K623825

PLUG

flange

1шт.

K626793

WASHER

1шт.

5

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SETSCREW

14шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

14шт.

6

K945954

SUPPORT

SPARE PART engine

1шт.

Part of Sump Frame Assembly PN K956076

1шт.

7

K30134

PIN

DOWEL

2шт.

Part of Sump Frame Assembly PN K956076

1шт.

8

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Setscrew

4шт.

Part of Sump Frame Assembly PN K956076

1шт.

92-8

LOCK WASHER,1/2"

4шт.

Part of Sump Frame Assembly PN K956076

1шт.

9

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

Part of Sump Frame Assembly PN K956076

1шт.

425-108

NUT,1/2" - 13, Gr 5

3шт.

Part of Sump Frame Assembly PN K956076

1шт.

K19474

HARDWARE

WASHER

3шт.

Part of Sump Frame Assembly PN K956076

1шт.

10

K952703

HOUSING

flywheel

1шт.

11

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SET

8шт.

192-21

LOCK WASHER,3/8"

8шт.

12

K690868

SPRING

PIN dowel

1шт.

13

K946048

COVER

PLATE, order with K200506

1шт.

13

K200506

COVER

SPARE PART PLATE

1шт.

14

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

SET

5шт.

92-4

LOCK WASHER,1/4"

5шт.

15

K602908

SCREW

SET

2шт.

16

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SET

6шт.

192-21

LOCK WASHER,3/8"

8шт.

17

K12258

PIN

DOWEL

2шт.

18

K15279

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1шт.

19

K946050

DIPSTICK

CAP oil filler

1шт.

20

K948646

CLUTCH

HOUSING

1шт.

21

K621390

BUSHING

SPARE PART

2шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

SET

12шт.

23

K623826

PLUG

1шт.

24

K19547

HARDWARE

PIN split

1шт.
