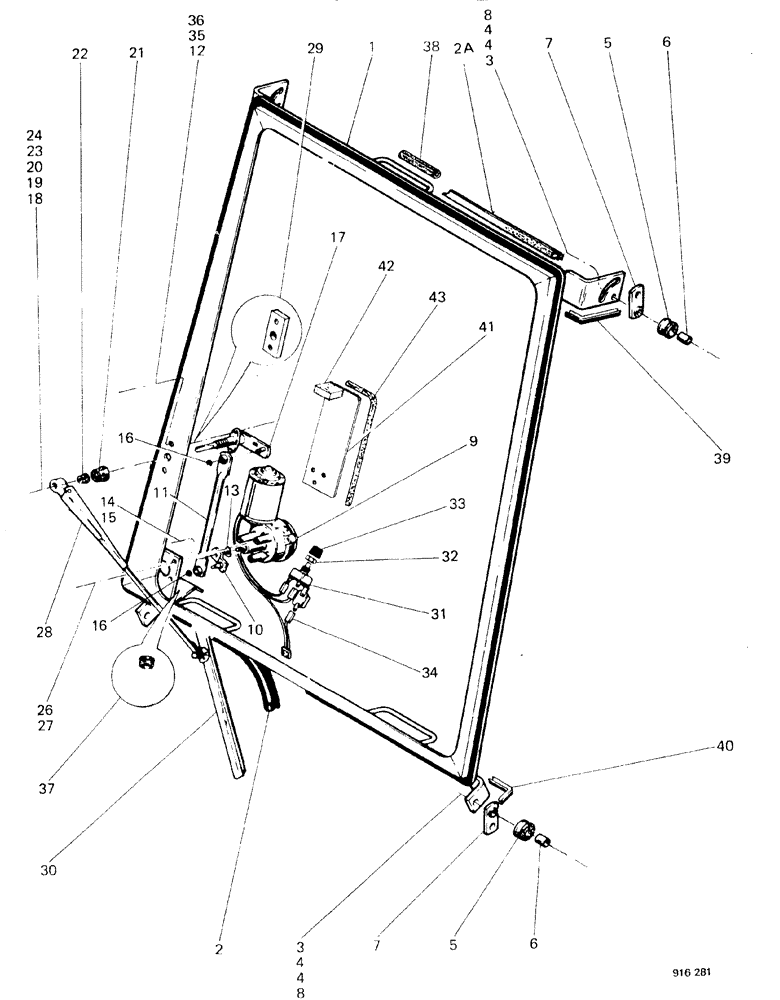

Справочник запчастей Case 580F (308) - CAB REAR WINDOW (90) - PLATFORM, CAB, BODYWORK AND DECALS со схемами

F96690

DOOR

WINDOW

1шт.

1

F96689

FRAME

1шт.

2

F43636

GASKET

SEAL

1шт.

UP TO NO. 3.702.151, DRY CLUTCH/NO. 3.733.988, TORQUE CONVERTER

1шт.

2a

E36979

SEAL

1шт.

STARTING WITH NO. 3.702.152, DRY CLUTCH/NO. 3.733.989, TORQUE CONVERTER

1шт.

3

F43656

SCREW

4шт.

4

195-525

WASHER,3/8", SAE

8шт.

5

E41698

ROLLER

4шт.

6

F43692

BUSHING

SPACER

4шт.

UP TO NO. 3.701.905, DRY CLUTCH/NO. 3.732.464, TORQUE CONVERTER

1шт.

6

F44588

SPACER

4шт.

STARTING WITH NO. 3.701.906, DRY CLUTCH/NO. 3.732.465, TORQUE CONVERTER

1шт.

7

F93801

ARM

4шт.

UP TO NO. 3.701.905, DRY CLUTCH/NO. 3.732.464, TORQUE CONVERTER

1шт.

7

F96696

ARM

4шт.

STARTING WITH NO. 3.701.906, DRY CLUTCH/NO. 3.732.465, TORQUE CONVERTER

1шт.

8

131-1117

LOCK NUT,5/16"-18, GA

4шт.

9

F96637

MOTOR, ELECTRIC

see Figure 354

1шт.

10

A36091

ARM

1шт.

11

D71412

LINK

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW

2шт.

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

1шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

1шт.

13

D71411

WASHER

1шт.

14

F44452

LOCK NUT

1шт.

15

A22431

WASHER

2шт.

16

D71414

CLIP

2шт.

17

D71415

SHAFT

complete

1шт.

18

D71417

SPECIAL WASHER

1шт.

19

D71418

WASHER

1шт.

20

D71419

NUT

1шт.

21

D71420

CAP

1шт.

22

D71421

TOOL

DRIVER

1шт.

23

193-9

LOCK WASHER,Ext Tooth, 5/16"

1шт.

24

D71422

NUT

1шт.

25

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

26

114-3

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

3шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

3шт.

28

F43789

ARM

1шт.

29

F44580

BLOCK

BRACKET

1шт.

30

F43938

WIPER BLADE

BLADE, WIPER

1шт.

31

A42660

SWITCH

1шт.

32

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

1шт.

33

A42578

KNOB

1шт.

34

F43838

CABLE

WIRE

1шт.

35

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

36

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

37

E11200

GROMMET

1шт.

STARTING WITH NO. 3.701.906, DRY CLUTCH/NO. 3.732.465, TORQUE CONVERTER

1шт.

38

E34881

GUARD

for Germany and Denmark only

3шт.

39

D55218

SEAL, GLASS,76mm L

RUBBER, for Germany only

4шт.

40

D36179

LINING

RUBBER, for Germany only

2шт.

41

E37998

LINING

SPARE PART GUARD, complete, for Germany only

1шт.

42

E37994

FOAM, for Germany only

1шт.

43

D35424

LINING

GUARD, for Germany only

1шт.
