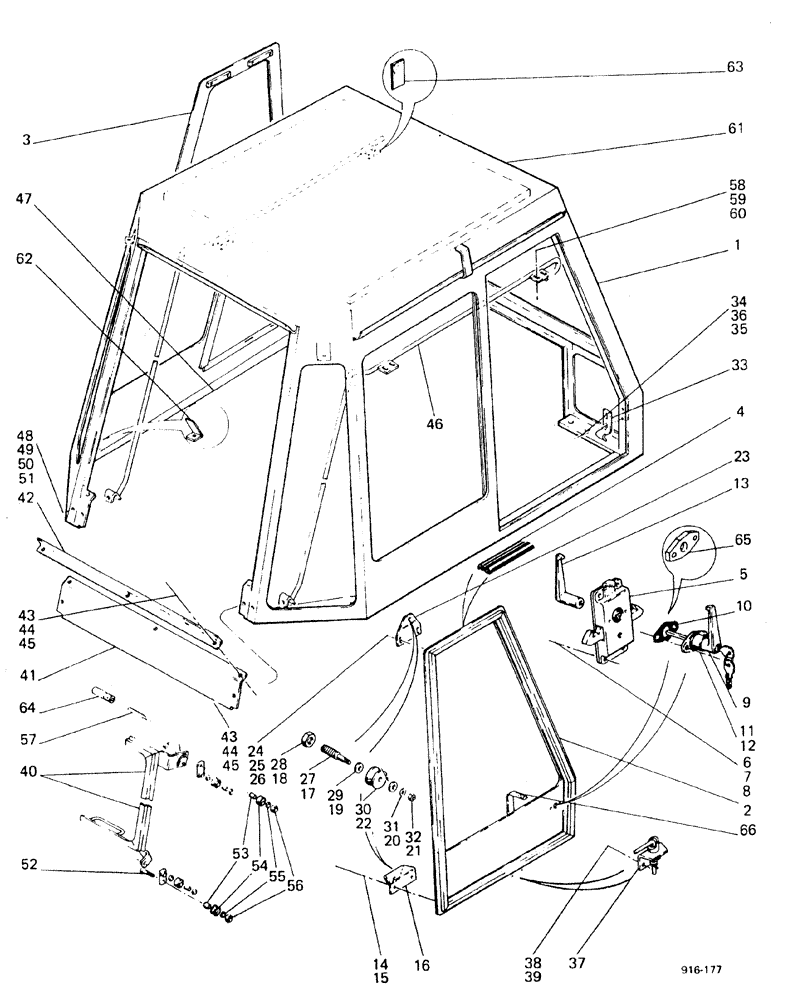

Справочник запчастей Case 580F (304) - CAB DOORS WINDOWS AND PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS со схемами

1

NSS

NOT SOLD SEPARAT

FRAME

1шт.

F96692

DOOR

right-hand

1шт.

F96693

DOOR

SPARE PART left-hand

1шт.

2

F96665

DOOR

FRAME right-hand

1шт.

3

F96666

BRACE

FRAME left-hand

1шт.

4

F43742

DOOR SEAL

SEAL

1шт.

5

F43731

LATCH

1шт.

6

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

4шт.

8

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

9

F43733

HANDLE

1шт.

A42653

SET OF 2 KEYS

2шт.

9

E34600

HANDLE

for Germany and Denmark only

1шт.

A42653

SET OF 2 KEYS

2шт.

10

F43792

GASKET

1шт.

11

179-154

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

2шт.

11

179-104

SCREW

for Germany and Denmark only

2шт.

12

86625057

NUT,#10-24, GB

2шт.

13

F63925

HANDLE

1шт.

83-54

SET SCREW,Hex Soc, 5/16"-18 x 1/4", Cup Pt

1шт.

14

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

15

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

4шт.

F96691

SUPPORT

BRACKET complete

1шт.

16

F44584

BRACKET

1шт.

17

F44585

LARGE PIN

PIN, LARGE STUD

2шт.

18

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

19

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

4шт.

20

F44587

WASHER

2шт.

21

131-1124

NUT,Jam, 1/4"-28

2шт.

22

F44586

ROLLER

2шт.

23

F43633

BRACKET

4шт.

24

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

8шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

8шт.

26

195-518

WASHER,1/4", SAE

8шт.

27

F44585

LARGE PIN

PIN, LARGE STUD

4шт.

28

87016560

JAM NUT,Jam, 3/8"-16, G5

4шт.

29

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

8шт.

30

F44586

ROLLER

4шт.

31

F44587

WASHER

4шт.

32

131-1124

NUT,Jam, 1/4"-28

4шт.

33

F43732

LATCH

2шт.

34

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

35

195-518

WASHER,1/4", SAE

4шт.

36

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

4шт.

37

F96626

LOCK

SPARE PART STOP door, complete

2шт.

F96627

STOP door

1шт.

F8228

SPRING

1шт.

F44423

HANDLE

1шт.

138-36

LOCK PIN,3/32" x 7/16", Slotted

1шт.

38

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

39

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

4шт.

40

F96690

DOOR

WINDOW

1шт.

41

E36291

PANEL

1шт.

41

F44592

PANEL

1шт.

42

F43722

BRACKET

1шт.

UP TO NO. 3.702.151, DRY CLUTCH/NO. 3.733.988, TORQUE CONVERTER

1шт.

43

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5-2шт.

44

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

5-2шт.

45

9635082

NUT,5/16" - 18, Gr 5

5-2шт.

46

F93798

STRAP

TRACK right-hand

1шт.

UP TO NO. 3.701.905, DRY CLUTCH/NO. 3.732.308, TORQUE CONVERTER

1шт.

46

F96700

STRAP

TRACK right-hand

1шт.

STARTING WITH NO. 3.701.906, DRY CLUTCH/NO. 3.732.309, TORQUE CONVERTER

1шт.

47

F93799

STRAP

TRACK left-hand

1шт.

UP TO NO. 3.701.905, DRY CLUTCH/NO. 3.732.308, TORQUE CONVERTER

1шт.

47

F96699

STRAP

TRACK left-hand

1шт.

STARTING WITH NO. 3.701.906, DRY CLUTCH/NO. 3.732.309, TORQUE CONVERTER

1шт.

48

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

49

195-103

WASHER,5/16"

6шт.

50

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

51

9635082

NUT,5/16" - 18, Gr 5

2шт.

52

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

CAP

2шт.

UP TO NO. 3.701.905, DRY CLUTCH/NO. 3.732.464, TORQUE CONVERTER

1шт.

52

113-2225

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

2шт.

STARTING WITH NO. 3.701.906, DRY CLUTCH/NO. 3.732.465, TORQUE CONVERTER

1шт.

53

F43692

BUSHING

SPACER

4шт.

UP TO NO. 3.701.905, DRY CLUTCH/NO. 3.732.464, TORQUE CONVERTER

1шт.

53

F44588

SPACER

4шт.

STARTING WITH NO. 3.701.906, DRY CLUTCH/NO. 3.732.465, TORQUE CONVERTER

1шт.

54

E41698

ROLLER

4шт.

55

195-525

WASHER,3/8", SAE

4шт.

56

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

57

F43687

2шт.

UP TO NO. 3.701.905, DRY CLUTCH/NO. 3.732.464, TORQUE CONVERTER

1шт.

57

F44603

2шт.

STARTING WITH NO. 3.701.906, DRY CLUTCH/NO. 3.732.465, TORQUE CONVERTER

1шт.

58

111-255

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5

8шт.

59

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

8шт.

60

9635082

NUT,5/16" - 18, Gr 5

8шт.

61

F43734

FOAM

PROTECTION head

1шт.

61

E35532

PROTECTION head, for Denmark only

1шт.

62

NLS

NO LONGER SERVICED

STOP door, for Germany and Denmark only

1шт.

63

E34895

GUARD ASSY.

for Germany and Denmark only

1шт.

64

E35176

LARGE HOSE

HOSE,LARGE GUARD, for Germany and Denmark only

2шт.

65

E34602

SPACER

SPARE PART for Germany and Denmark only

2шт.

D43403

LINING

GUARD, for Germany only

2шт.

Запчасти Case 580F (304) - CAB DOORS WINDOWS AND PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
