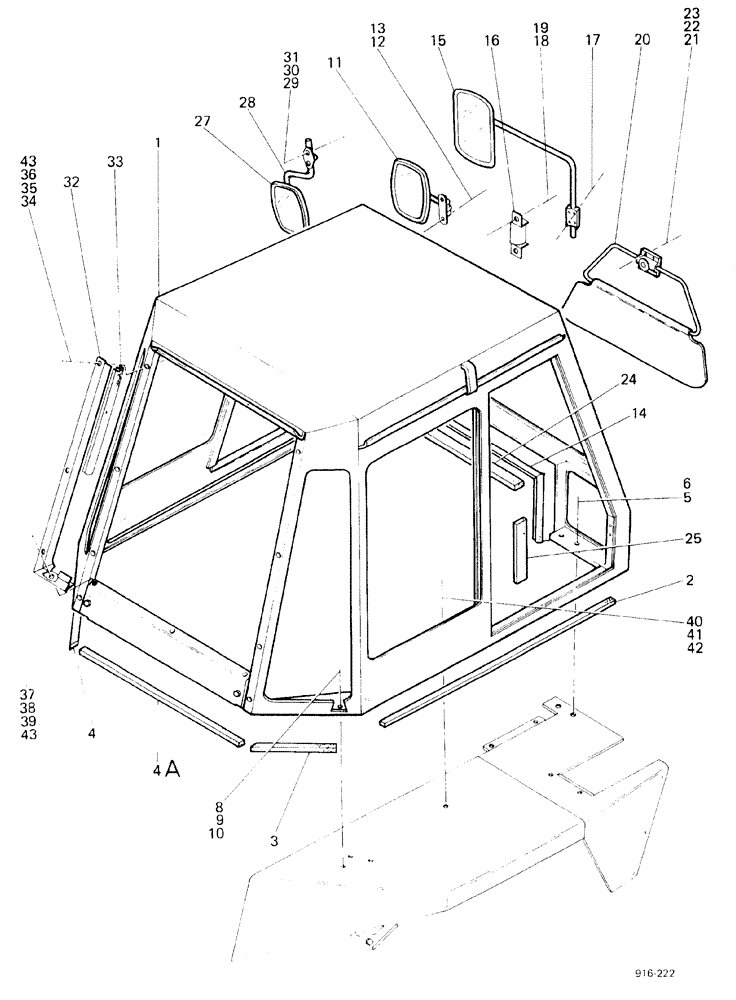

Справочник запчастей Case 580F (302) - CAB MOUNTING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS со схемами

1

REF

INSTRUCTION

CAB, see Figure 304 - 310

1шт.

2

F43735

BAND

SPARE PART SEAL

2шт.

3

F43736

BAND

SEAL

1шт.

UP TO NO. 3.702.151, DRY CLUTCH/NO. 3.733.988, TORQUE CONVERTER

1шт.

3

E36292

BAND

SEAL

1шт.

STARTING WITH NO. 3.702.152, DRY CLUTCH/NO. 3.733.989, TORQUE CONVERTER

1шт.

4

F43737

BAND

SEAL

1шт.

UP TO NO. 3.702.151, DRY CLUTCH/NO. 3.733.988, TORQUE CONVERTER

1шт.

4

E36292

BAND

SEAL, with axial backhoe

1шт.

STARTING WITH NO. 3.702.152, DRY CLUTCH/NO. 3.733.989, TORQUE CONVERTER

1шт.

4a

F44593

BAND

SPARE PART SEAL, with S.S. backhoe

1шт.

4a

E36293

BAND

SEAL

1шт.

5

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

CAP

4шт.

6

92-10

LOCK WASHER,5/8"

4шт.

8

26-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

CAP, 1/2" x 2 NC

4шт.

8

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

CAP, 1/2" x 1-3/4 NC

2шт.

9

92-8

LOCK WASHER,1/2"

6шт.

10

129-559

NUT

2шт.

11

F44065

MIRROR

1шт.

UP TO NO. 3.702.115, DRY CLUTCH/NO. 3.733.801, TORQUE CONVERTER

1шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

UP TO NO. 3.702.115, DRY CLUTCH/NO. 3.733.801, TORQUE CONVERTER

1шт.

13

92-5

LOCK WASHER,5/16"

2шт.

UP TO NO. 3.702.115, DRY CLUTCH/NO. 3.733.801, TORQUE CONVERTER

1шт.

14

F43738

GASKET

SEAL

1шт.

UP TO NO. 3.702.115, DRY CLUTCH/NO. 3.733.801, TORQUE CONVERTER

1шт.

15

E34845

MIRROR

for Germany only

2шт.

15

E34845

MIRROR

for Denmark only

2шт.

UP TO NO. 3.702.189, DRY CLUTCH/NO. 3.734.030, TORQUE CONVERTER

1шт.

16

E35120

BRACKET

for Germany only

2шт.

16

E35120

BRACKET

for Denmark only

2шт.

UP TO NO. 3.702.115, DRY CLUTCH/NO. 3.733.801, TORQUE CONVERTER

1шт.

17

61-416

HEX SOC SCREW,1/4"-20 x 1"

for Germany only

8шт.

17

61-416

HEX SOC SCREW,1/4"-20 x 1"

for Denmark only

8шт.

UP TO NO. 3.702.115, DRY CLUTCH/NO. 3.733.801, TORQUE CONVERTER

1шт.

18

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

For Germany only

4шт.

18

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

For Denmark only

4шт.

UP TO NO. 3.702.115, DRY CLUTCH/NO. 3.733.801, TORQUE CONVERTER

1шт.

19

92-5

LOCK WASHER,5/16"

for Germany only

4шт.

19

92-5

LOCK WASHER,5/16"

for Denmark only

4шт.

UP TO NO. 3.702.115, DRY CLUTCH/NO. 3.733.801, TORQUE CONVERTER

1шт.

20

E34882

VISOR, SUN

shade, for Germany and Denmark only

1шт.

21

73-48

SCREW,Slotted Flat Hd, 1/4"-20 x 1/2"

for Germany and Denmark only

2шт.

22

7770

NUT,Hex, 1/4 - 20, Cl 5

for Germany and Denmark only

2шт.

23

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

For Germany and Denmark only

2шт.

24

E36307

BAND

SEAL

1шт.

STARTING WITH NO. 3.702.152, DRY CLUTCH/NO. 3.733.989, TORQUE CONVERTER

1шт.

25

E36308

BAND

SEAL

2шт.

STARTING WITH NO. 3.702.152, DRY CLUTCH/NO. 3.733.989, TORQUE CONVERTER

1шт.

27

E36821

MIRROR

for Denmark only

1шт.

STARTING WITH NO. 3.702.116, DRY CLUTCH/NO. 3.733.802, TORQUE CONVERTER + 3.733.693/770/781/783/788/789/791/798/799

1шт.

27

E36821

MIRROR

for Denmark only

2шт.

STARTING WITH NO. 3.702.116, DRY CLUTCH/NO. 3.733.802, TORQUE CONVERTER + 3.733.693/770/781/783/788/789/791/798/799

1шт.

28

E36820

BRACKET

1шт.

STARTING WITH NO. 3.702.116, DRY CLUTCH/NO. 3.733.802, TORQUE CONVERTER + 3.733.693/770/781/783/788/789/791/798/799

1шт.

28

E36820

BRACKET

2шт.

STARTING WITH NO. 3.702.116, DRY CLUTCH/NO. 3.733.802, TORQUE CONVERTER + 3.733.693/770/781/783/788/789/791/798/799

1шт.

29

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4-8шт.

STARTING WITH NO. 3.702.116, DRY CLUTCH/NO. 3.733.802, TORQUE CONVERTER + 3.733.693/770/781/783/788/789/791/798/799

1шт.

30

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

4-8шт.

STARTING WITH NO. 3.702.116, DRY CLUTCH/NO. 3.733.802, TORQUE CONVERTER + 3.733.693/770/781/783/788/789/791/798/799

1шт.

31

7770

NUT,Hex, 1/4 - 20, Cl 5

4-8шт.

STARTING WITH NO. 3.702.116, DRY CLUTCH/NO. 3.733.802, TORQUE CONVERTER + 3.733.693/770/781/783/788/789/791/798/799

1шт.

32

E37635

FRAME

1шт.

33

E37630

GASKET

GUARD

1шт.

34

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

6шт.

35

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

6шт.

36

9635082

NUT,5/16" - 18, Gr 5

6шт.

37

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

3шт.

38

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

3шт.

39

9635082

NUT,5/16" - 18, Gr 5

3шт.

40

171-235

SCREW

4шт.

STARTING WITH NO. 3.702.152, DRY CLUTCH/NO. 3.733.989, TORQUE CONVERTER

1шт.

41

92-6

LOCK WASHER,3/8"

4шт.

STARTING WITH NO. 3.702.152, DRY CLUTCH/NO. 3.733.989, TORQUE CONVERTER

1шт.

42

25-106

NUT,3/8"-16, G5

4шт.

STARTING WITH NO. 3.702.152, DRY CLUTCH/NO. 3.733.989, TORQUE CONVERTER

1шт.

43

195-102

WASHER,1/4"

9шт.
