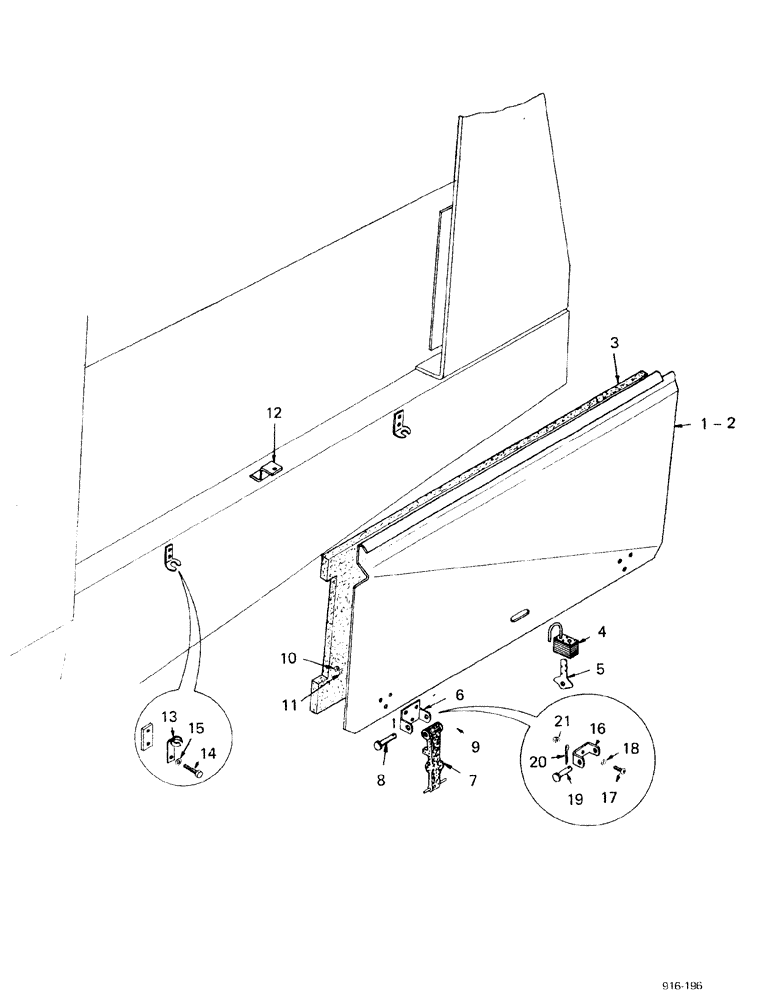

Запчасти Case 580F (300) - ENGINE SOUNDPROOFED SIDE PANELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

E35353

PANEL

SPARE PART soundproofed, right-hand, when depleted order D70953

1шт.

UP TO NO. 3.736.532

1шт.

1

E38107

PANEL soundproofed, right-hand

1шт.

STARTING WITH NO. 3.736.533

1шт.

UP TO NO. 3.736.664

1шт.

1

NLS

NO LONGER SERVICED

RING SNAP PANEL right-hand

1шт.

STARTING WITH NO. 3.736.665

1шт.

2

E35354

PANEL

SPARE PART soundproofed left-hand, when depleted order D70957

1шт.

UP TO NO. 3.736.532

1шт.

2

E38108

PANEL

soundproofed, left-hand

1шт.

STARTING WITH NO. 3.736.533

1шт.

UP TO NO. 3.736.664

1шт.

2

E36299

PANEL

left-hand

1шт.

STARTING WITH NO. 3.736.665

1шт.

3

D72058

PAD

FOAM

1шт.

UP TO NO. 3.736.664

1шт.

4

R29556

LOCK

PAD

2шт.

5

R29555

KEY

2шт.

6

E36302

BRACKET

4шт.

STARTING WITH NO. 3.736.533

1шт.

7

L47157

HOOK

4шт.

UP TO NO. 3.736.532

1шт.

7

E36300

FASTENER

HOOK

4шт.

STARTING WITH NO. 3.736.533

1шт.

8

E36303

PIN

with washer

4шт.

STARTING WITH NO. 3.736.533

1шт.

9

171-61

SCREW,Sl Flat Hd, #6 - 32 x 1/2"

12шт.

STARTING WITH NO. 3.736.533

1шт.

10

129-5

NUT,#6-32

12шт.

STARTING WITH NO. 3.736.533

1шт.

11

192-5

LOCK WASHER,#6

12шт.

STARTING WITH NO. 3.736.533

1шт.

12

E34900

BRACKET

HOLDER strap

2шт.

13

L47158

BRACKET

4шт.

UP TO NO. 3.736.532

1шт.

14

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

8шт.

UP TO NO. 3.736.532

1шт.

15

92-3

LOCK WASHER,#10

8шт.

UP TO NO. 3.736.532

1шт.

16

L47159

BRACKET

4шт.

UP TO NO. 3.736.532

1шт.

17

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

UP TO NO. 3.736.532

1шт.

18

195-21

WASHER,5/16"

4шт.

UP TO NO. 3.736.532

1шт.

19

T11232

PIN

4шт.

UP TO NO. 3.736.532

1шт.

20

132-44

COTTER PIN,1/8" x 1/2"

4шт.

UP TO NO. 3.736.532

1шт.

21

131-651

NUT,5/16"-18, GB

NUT

4шт.

UP TO NO. 3.736.532

1шт.
