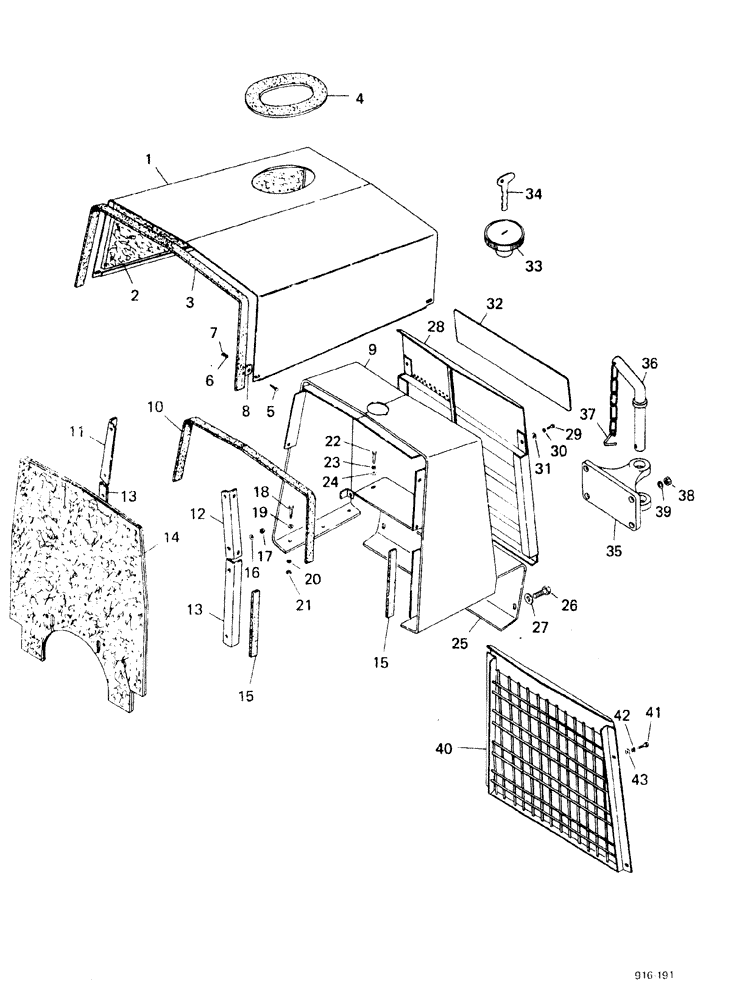

Запчасти Case 580F (298) - ENGINE COVER AND GRILLE, UP TO NO 3.737.041 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D72116

GUARD

COVER engine

1шт.

UP TO NO. 3.701.949, DRY CLUTCH/NO. 3.732.785, TORQUE CONVERTER

1шт.

1

E35739

GUARD

SPARE PART COVER engine

1шт.

STARTING WITH NO. 3.701.950, DRY CLUTCH/NO. 3.732.786, TORQUE CONVERTER + 3.732.739/740/745/746/750/754/755/756/763/764

1шт.

2

D70923

FOAM

1шт.

UP TO NO. 3.701.949, DRY CLUTCH/NO. 3.732.785, TORQUE CONVERTER

1шт.

2

E35741

FOAM

SPARE PART

1шт.

STARTING WITH NO. 3.701.950, DRY CLUTCH/NO. 3.732.786, TORQUE CONVERTER + 3.732.739/740/745/746/750/754/755/756/763/764

1шт.

3

D65697

BAND

RUBBER

1шт.

4

E36969

SEAL

1шт.

UP TO NO. 737.117

1шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAP

4шт.

6

195-21

WASHER,5/16"

8шт.

7

131-651

NUT,5/16"-18, GB

NUT

4шт.

8

D61266

BUSHING

SPACER

4шт.

9

D65714

GUARD

1шт.

10

D67063

BAND

RUBBER

1шт.

11

D68819

ELBOW UNION

Union Elbow BRACKET

1шт.

12

D68818

ELBOW UNION

Union Elbow BRACKET

1шт.

13

D72059

BRACKET

2шт.

14

E36711

PANEL

BARRIER

1шт.

15

D95585

BAND

RUBBER

4шт.

16

195-21

WASHER,5/16"

8шт.

17

131-651

NUT,5/16"-18, GB

NUT

8шт.

18

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

19

195-33

WASHER,1/2"

2шт.

20

92-8

LOCK WASHER,1/2"

2шт.

21

25-108

NUT,1/2"-13, G5

2шт.

22

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

23

92-8

LOCK WASHER,1/2"

2шт.

24

195-33

WASHER,1/2"

2шт.

25

D65732

GUARD, order E36236

1шт.

25

E36236

GUARD

1шт.

25

E34570

GUARD, order E37450, for Germany only

1шт.

25

E37450

GUARD, for Germany only

1шт.

UP TO NO. 3.735.808, TORQUE CONVERTER

1шт.

25

E36236

GUARD

for Germany only

1шт.

STARTING WITH NO. 3.735.809, TORQUE CONVERTER

1шт.

26

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

27

195-45

WASHER,3/4"

2шт.

28

D77114

GUARD

GRILLE

1шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAP

4шт.

30

92-6

LOCK WASHER,3/8"

4шт.

31

195-25

WASHER,3/8"

4шт.

32

E32927

PLATE number, for Germany only

1шт.

33

E33608

CAP

fuel tank

1шт.

34

NSS

NOT SOLD SEPARAT

KEY

2шт.

35

E30703

HOOK ASSEMBLY, for Germany only

1шт.

UP TO NO. 3.735.808, TORQUE CONVERTER

1шт.

36

E31982

HOOK, for Germany only

1шт.

UP TO NO. 3.735.808, TORQUE CONVERTER

1шт.

37

E31983

PIN, for Germany only

1шт.

UP TO NO. 3.735.808, TORQUE CONVERTER

1шт.

38

E16680

NUT

for Germany only

4шт.

UP TO NO. 3.735.808, TORQUE CONVERTER

1шт.

39

E16681

WASHER

for Germany only

4шт.

UP TO NO. 3.735.808, TORQUE CONVERTER

1шт.

40

D68504

GRILLE, order D77114, see Ref. 28

1шт.

41

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAP

4шт.

42

92-6

LOCK WASHER,3/8"

4шт.

43

195-25

WASHER,3/8"

4шт.
