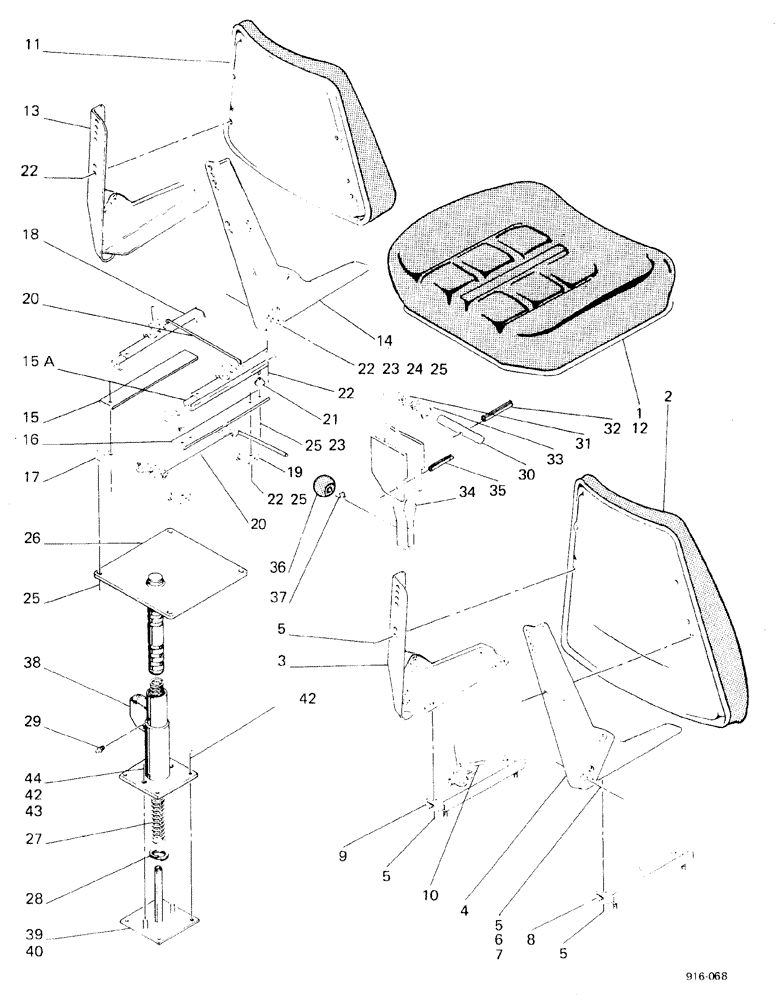

Запчасти Case 580F (296) - SEATS (90) - PLATFORM, CAB, BODYWORK AND DECALS

D56409

SEAT

ASSEMBLY two way

1шт.

UP TO NO. 3.785.270

1шт.

D76157

SEAT

ASSEMBLY two way

1шт.

STARTING WITH NO. 3.785.271

1шт.

1

D56883

SEAT

CUSHION

1шт.

2

D56884

BACKREST

1шт.

3

D56885

RAIL ASSY.

SUPPORT

1шт.

4

D56886

RAIL ASSY.

SUPPORT

1шт.

5

113-143

BOLT,5/16" x 5/8"

CAPSCREW

14шт.

6

192-22

LOCK WASHER,7/16"

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

2шт.

8

D56887

SEAT

SLIDE

1шт.

9

D56888

ADJUSTER

SLIDE

1шт.

10

D56889

SPRING

1шт.

D73821

SEAT

ASSEMBLY four way

1шт.

11

D56884

BACKREST

1шт.

12

D56883

SEAT

CUSHION

1шт.

13

D56885

RAIL ASSY.

SUPPORT

1шт.

14

D56886

RAIL ASSY.

SUPPORT

1шт.

15

D59687

BRACKET

1шт.

15a

L35491

SLIDE

ADJUSTER

1шт.

16

D59686

BRACKET

1шт.

17

A64818

ADJUSTER

1шт.

18

D56888

ADJUSTER

1шт.

19

D73726

ADJUSTER

1шт.

20

L35492

ROD

2шт.

21

D59689

SPACER

4шт.

22

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

18шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

10шт.

24

195-521

WASHER,5/16", SAE

10шт.

25

9635082

NUT,5/16" - 18, Gr 5

10шт.

26

E37120

POST

1шт.

27

E37963

SPRING

1шт.

28

D49776

SNAP RING,#187, 2.008", Int, Spiral

1шт.

29

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

30

D38261

PIN

1шт.

31

D49774

SPRING

1шт.

32

138-94

LOCK PIN,3/16" x 7/8", Slotted

1шт.

33

D49941

SPRING WASHER

1шт.

34

D38258

LOCK

1шт.

35

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

1шт.

36

D38643

KNOB

1шт.

37

D38673

RING

1шт.

38

D67093

SUPPORT

SPARE PART POST

1шт.

39

D70029

PLATE

for two way seat

1шт.

40

D67116

PLATE

for four way seat

1шт.

41

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

For four way seat

4шт.

41

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

For two way seat

4шт.

42

92-6

LOCK WASHER,3/8"

6шт.

43

195-25

WASHER,3/8"

2шт.

44

25-106

NUT,3/8"-16, G5

2шт.
