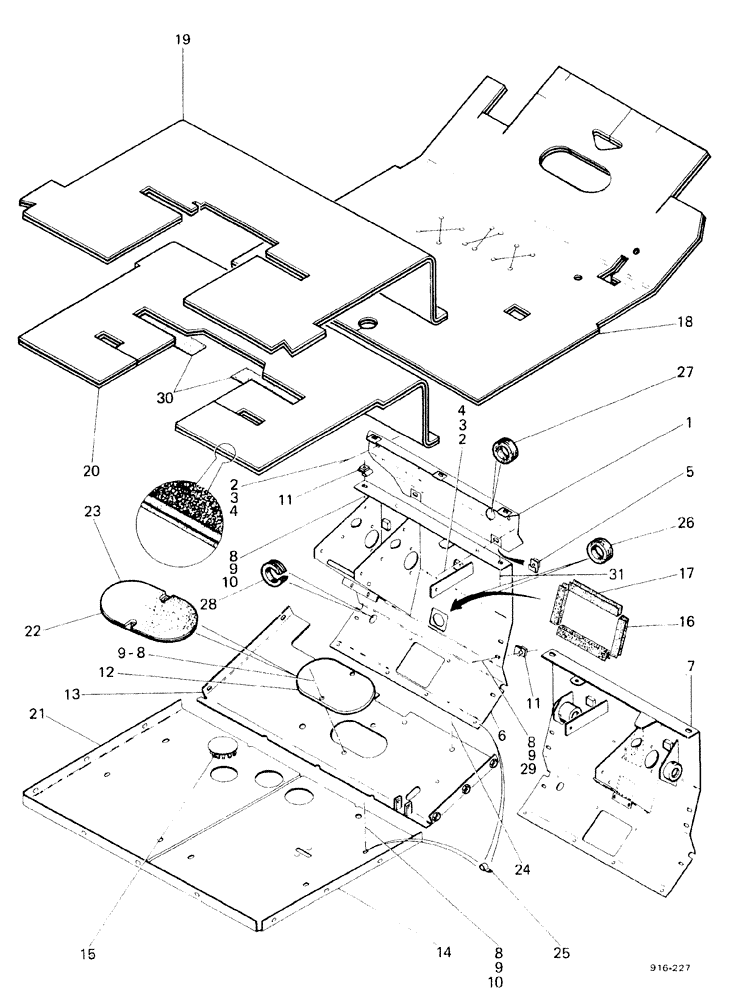

Запчасти Case 580F (294) - FLOOR PLATES (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D69139

PLATE, order E40304

1шт.

1

E40304

PLATE

1шт.

2

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

3

92-5

LOCK WASHER,5/16"

4шт.

4

195-21

WASHER,5/16"

4шт.

5

131-636

SPRING NUT,J, Ret, 5/16"-18

2шт.

6

D69623

FIREWALL, torque converter, order E40318

1шт.

UP TO NO. 3.737.722

1шт.

6

E40318

FIREWALL, torque converter

1шт.

STARTING WITH NO. 3.737.723

1шт.

6

E40865

FIREWALL, torque converter

1шт.

UP TO NO. 3.737.722

1шт.

7

D69660

FIREWALL, dry clutch

1шт.

STARTING WITH NO. 3.737.723

1шт.

7

E40866

FIREWALL, dry clutch

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAP

20шт.

9

92-6

LOCK WASHER,3/8"

21шт.

10

195-25

WASHER,3/8"

19шт.

11

131-634

SPRING NUT,J, Ret, 3/8"-16

8шт.

12

D69656

PLATE

COVER

1шт.

13

D69654

PLATE, dry clutch

1шт.

13

E37756

PLATE, torque converter

1шт.

14

D76530

FLOOR

PLATE right-hand, order E40356

1шт.

14

E40356

PLATE right-hand

1шт.

15

205-72

HOLE PLUG BUTTON,3"

1шт.

16

D72356

LINING

TRIM

2шт.

UP TO NO. 3.702.307, DRY CLUTCH/NO. 3.735.778, TORQUE CONVERTER

1шт.

17

D36180

LINING

TRIM

2шт.

UP TO NO. 3.702.307, DRY CLUTCH/NO. 3.735.778, TORQUE CONVERTER

1шт.

18

E37017

FLOOR

SPARE PART MAT

1шт.

18

E36004

MAT

SPARE PART for Germany only

1шт.

18

E37319

MAT, for loader only without cab

1шт.

19

E37016

MAT

SPARE PART for S.S. backhoe

1шт.

19

D73999

INSULATOR

MAT, for backhoe fitted with chain fitted tires, for S.S. backhoe

1шт.

20

E37015

CARPET

MAT, for axial backhoe

1шт.

21

D76550

FLOOR

PLATE left-hand, order E40355

1шт.

21

E40355

FLOOR

PLATE left-hand

1шт.

22

D76237

COVER

1шт.

23

D76236

FOAM

1шт.

22

E37317

COVER, for loader only without cab

1шт.

23

E37318

FOAM

1шт.

24

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

25

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

UP TO NO. 3.736.447

1шт.

26

E38764

GROMMET

SPARE PART dry clutch

1шт.

STARTING WITH NO. 3.702.308, DRY CLUTCH/NO. 3.735.779, TORQUE CONVERTER

1шт.

26

E38764

GROMMET

SPARE PART torque converter

1шт.

UP TO NO. 3.736.447

1шт.

STARTING WITH NO. 3.702.308, DRY CLUTCH/NO. 3.735.779, TORQUE CONVERTER

1шт.

27

E38764

GROMMET

SPARE PART

1шт.

STARTING WITH NO. 3.736.448

1шт.

28

E40305

GROMMET

torque converter

1шт.

STARTING WITH NO. 3.736.448

1шт.

29

195-28

WASHER,3/8"

1шт.

30

D55216

PAD,2" x 9"

PAPER, for S.S. backhoe, for 2 levers control

2шт.

31

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.
