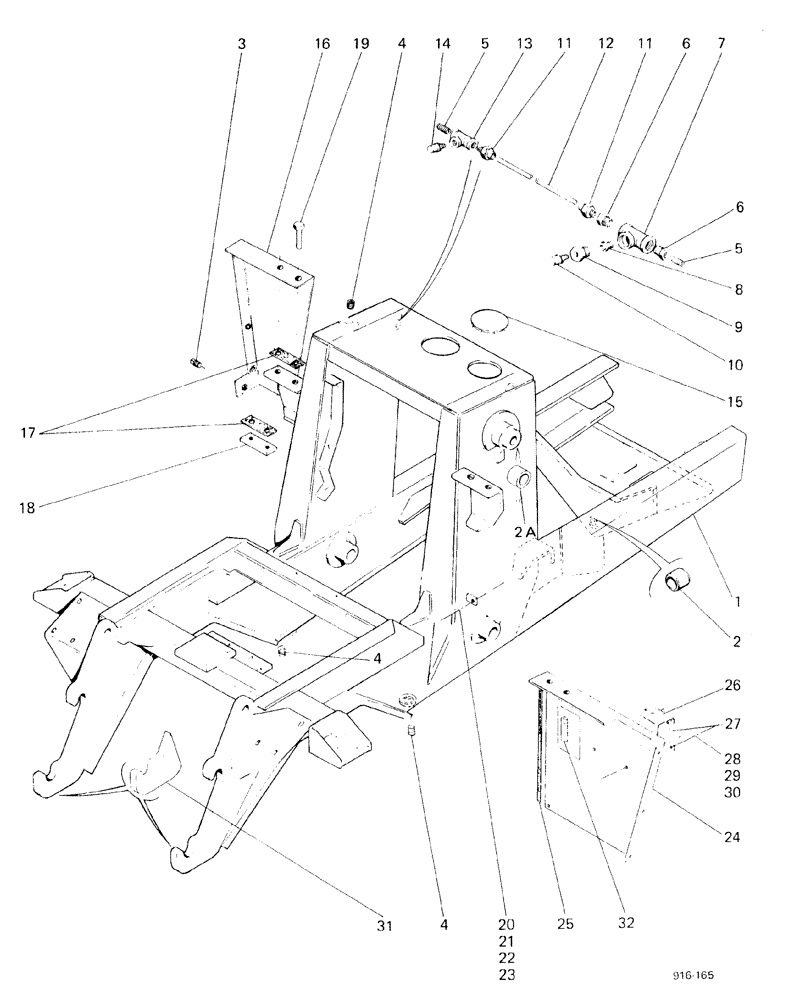

Запчасти Case 580F (292) - CHASSIS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D66034

CHASSIS

1шт.

UP TO NO. 3.702.027, DRY CLUTCH/NO. 3.733.136, TORQUE CONVERTER

1шт.

1

D76914

CHASSIS

1шт.

STARTING WITH NO. 3.702.028, DRY CLUTCH/NO. 3.733.137, TORQUE CONVERTER

1шт.

1

E34608

CHASSIS, for Germany only

1шт.

UP TO NO. 3.702.027, DRY CLUTCH/NO. 3.733.136, TORQUE CONVERTER

1шт.

1

E35912

CHASSIS, for Germany only

1шт.

STARTING WITH NO. 3.702.028, DRY CLUTCH/NO. 3.733.137, TORQUE CONVERTER

1шт.

1

E36346

CHASSIS, for Suedish only

1шт.

2

D69221

BUSHING,45.23mm ID x 57.16mm OD x 25mm L

1шт.

2a

D65731

BUSHING

2шт.

3

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

1шт.

4

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

3шт.

5

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

2шт.

6

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

BUSHING

2шт.

7

221-441

TEE,1/2" NPT x 3/4 NPT Br

1шт.

8

D63543

BREATHER

FILTER

1шт.

9

D63506

ADAPTER

1шт.

10

R15538

VALVE

INLET

1шт.

11

220-502

COUPLING, BREAK AWAY

2шт.

12

D72098

HOSE,0.25" ID x 17.00", SAE 30R6 or SAE 30R7

1шт.

13

221-430

TEE,1/4" NPT x 1/4 NPT Br

CONNECTOR

1шт.

14

R15536

VALVE

1шт.

15

205-72

HOLE PLUG BUTTON,3"

1шт.

16

D76522

SUPPORT left-hand

1шт.

STARTING WITH NO. 3.702.028, DRY CLUTCH/NO. 3.733.137, TORQUE CONVERTER

1шт.

16

E35915

SUPPORT right-hand, for Germany only

1шт.

17

D75478

RUBBER

4шт.

STARTING WITH NO. 3.702.028, DRY CLUTCH/NO. 3.733.137, TORQUE CONVERTER

1шт.

18

D76061

PLATE

2шт.

STARTING WITH NO. 3.702.028, DRY CLUTCH/NO. 3.733.137, TORQUE CONVERTER

1шт.

19

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

CAP

4шт.

STARTING WITH NO. 3.702.028, DRY CLUTCH/NO. 3.733.137, TORQUE CONVERTER

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAP

2шт.

STARTING WITH NO. 3.702.028, DRY CLUTCH/NO. 3.733.137, TORQUE CONVERTER

1шт.

21

195-25

WASHER,3/8"

2шт.

STARTING WITH NO. 3.702.028, DRY CLUTCH/NO. 3.733.137, TORQUE CONVERTER

1шт.

22

92-6

LOCK WASHER,3/8"

2шт.

STARTING WITH NO. 3.702.028, DRY CLUTCH/NO. 3.733.137, TORQUE CONVERTER

1шт.

23

25-106

NUT,3/8"-16, G5

2шт.

STARTING WITH NO. 3.702.028, DRY CLUTCH/NO. 3.733.137, TORQUE CONVERTER

1шт.

24

D76523

SUPPORT right-hand

1шт.

STARTING WITH NO. 3.702.028, DRY CLUTCH/NO. 3.733.137, TORQUE CONVERTER

1шт.

24

E35916

SUPPORT right-hand, for Germany only

1шт.

25

D76893

GASKET

SEAL

2шт.

STARTING WITH NO. 3.702.028, DRY CLUTCH/NO. 3.733.137, TORQUE CONVERTER

1шт.

26

E31748

WEDGE wheel, for Germany only, order E37736 + E37739, for 4 wheel drive supplement E40908

2шт.

UP TO NO. 3.734.444. TORQUE CONVERTER

1шт.

26

D37736

PISTON ROD

WEDGE wheel

2шт.

STARTING WITH NO. 3.734.445, TORQUE CONVERTER

1шт.

27

D31750

SPARE PART SUPPORT, for Germany only

2шт.

UP TO NO. 3.734.444. TORQUE CONVERTER

1шт.

27

D37739

SUPPORT, for Germany only

2шт.

STARTING WITH NO. 3.734.445, TORQUE CONVERTER

1шт.

28

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

For Germany only

4шт.

29

92-4

LOCK WASHER,1/4"

for Germany only

4шт.

30

25-1 04

NUT, for Germany only

4шт.

31

E37545

MOUNTING PARTS

SPARE PART ENDS arm, for repairs

2шт.

32

D71141

GUARD ASSY.

1шт.
