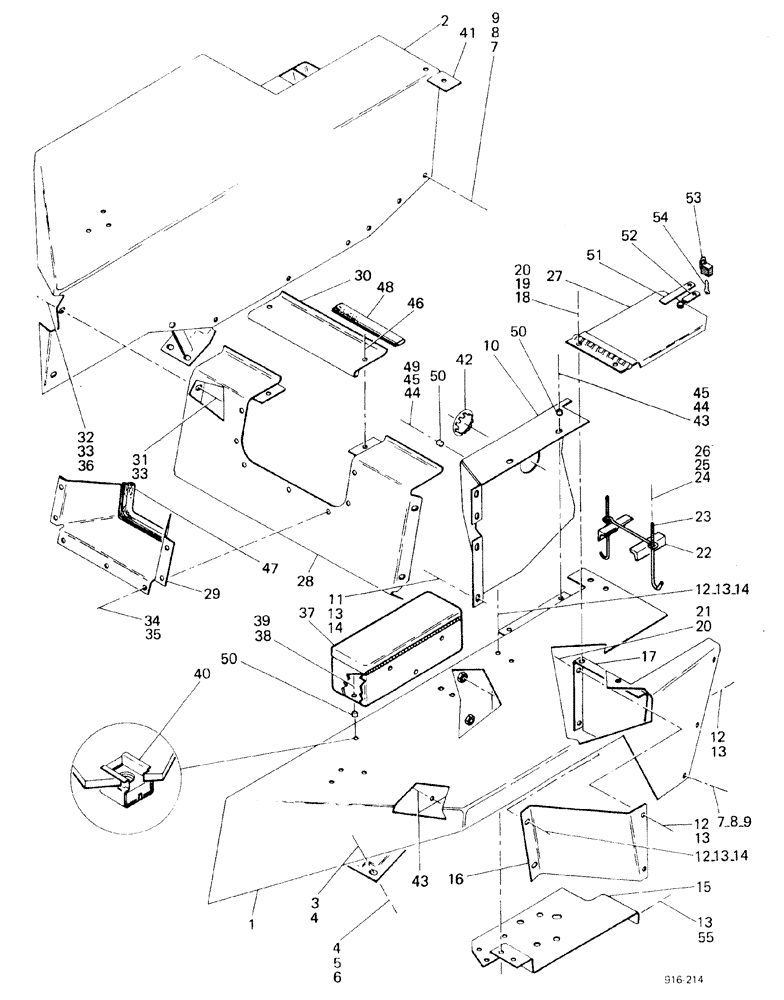

Запчасти Case 580F (288) - REAR FENDERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D67836

FENDER

right-hand

1шт.

1

E36350

FENDER right-hand, for Suedish only

1шт.

1

E35535

FENDER right-hand, for Denmark only

1шт.

2

D67708

FENDER

left-hand

1шт.

UP TO NO. 3.702.027, DRY CLUTCH/NO. 3.733.136, TORQUE CONVERTER

1шт.

2

D76771

FENDER

left-hand

1шт.

STARTING WITH NO. 3.702.028, DRY CLUTCH/NO. 3.733.137, TORQUE CONVERTER

1шт.

2

E34642

FENDER left-hand, for Germany only

1шт.

UP TO NO. 3.702.027, DRY CLUTCH/NO. 3.733.136, TORQUE CONVERTER

1шт.

2

E35917

FENDER left-hand, for Germany only

1шт.

STARTING WITH NO. 3.702.028, DRY CLUTCH/NO. 3.733.137, TORQUE CONVERTER

1шт.

3

26-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

CAP

6шт.

4

195-33

WASHER,1/2"

12шт.

5

92-8

LOCK WASHER,1/2"

6шт.

6

129-556

NUT,1/2"-13, G8

6шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAP

17шт.

8

92-6

LOCK WASHER,3/8"

19шт.

9

195-25

WASHER,3/8"

19шт.

10

D67718

PLATE

PLATE, order E40298

1шт.

10

E34592

PLATE, for Germany only, order E40403

1шт.

10

E35395

PLATE, without cab, E40402

1шт.

10

E40298

PLATE

1шт.

10

E40403

PLATE, for Germany only

1шт.

10

E40402

PLATE, without cab

1шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Cap

4шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAP

9шт.

13

92-6

LOCK WASHER,3/8"

14шт.

14

195-25

WASHER,3/8"

8шт.

15

D70329

BRACKET

PLATE

1шт.

UP TO NO. 3.702.027, DRY CLUTCH/NO. 3.733.136, TORQUE CONVERTER

1шт.

15

D76913

PLATE

1шт.

STARTING WITH NO. 3.702.028, DRY CLUTCH/NO. 3.733.137, TORQUE CONVERTER

1шт.

16

D71725

COVER PLATE

1шт.

17

D67801

BRACKET

HOLDER

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAP

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

195-25

WASHER,3/8"

4шт.

21

25-106

NUT,3/8"-16, G5

2шт.

22

D55559

HOOK

STRAP

1шт.

23

D70327

BOLT

2шт.

24

195-21

WASHER,5/16"

2шт.

25

92-5

LOCK WASHER,5/16"

2шт.

26

9635082

NUT,5/16" - 18, Gr 5

2шт.

27

D70558

COVER

SPARE PART

1шт.

28

D72880

PANEL

PLATE

1шт.

29

D73089

COVER PLATE

1шт.

29

D74935

PLATE, for backhoe equipped with chain fitted tyres

1шт.

30

E36313

PLATE

1шт.

30

D74348

PLATE, for backhoe equipped with chain fitted tyres

1шт.

31

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

32

192-21

LOCK WASHER,3/8"

4шт.

33

195-525

WASHER,3/8", SAE

8шт.

34

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

7шт.

35

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

7шт.

36

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

37

D55624

TOOL

BOX

1шт.

38

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

3шт.

39

195-102

WASHER,1/4"

3шт.

40

131-650

NUT,1/4"-20, GB

3шт.

UP TO NO. 3.702.077, DRY CLUTCH/NO. 3.733.460, TORQUE CONVERTER

1шт.

40

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

3шт.

STARTING WITH NO. 3.702.078, DRY CLUTCH/NO. 3.733.461, TORQUE CONVERTER

1шт.

41

D68748

PLATE

1шт.

42

205-72

HOLE PLUG BUTTON,3"

1шт.

43

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

CAP

4шт.

44

192-21

LOCK WASHER,3/8"

5шт.

45

195-525

WASHER,3/8", SAE

5шт.

46

175-420

SCREW,Sl Truss Hd, 3/8" - 16 x 3/4"

BOLT

2шт.

47

D73850

GASKET

PADDING

1шт.

48

E37968

GASKET

PADDING

1шт.

49

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

CAP

3шт.

50

D73049

BUSHING

SPACER

8шт.

51

E35385

STRAP

holding

1шт.

52

E35386

STRAP

holding

1шт.

53

R29556

LOCK

PAD

1шт.

54

R29555

KEY

2шт.

55

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.
