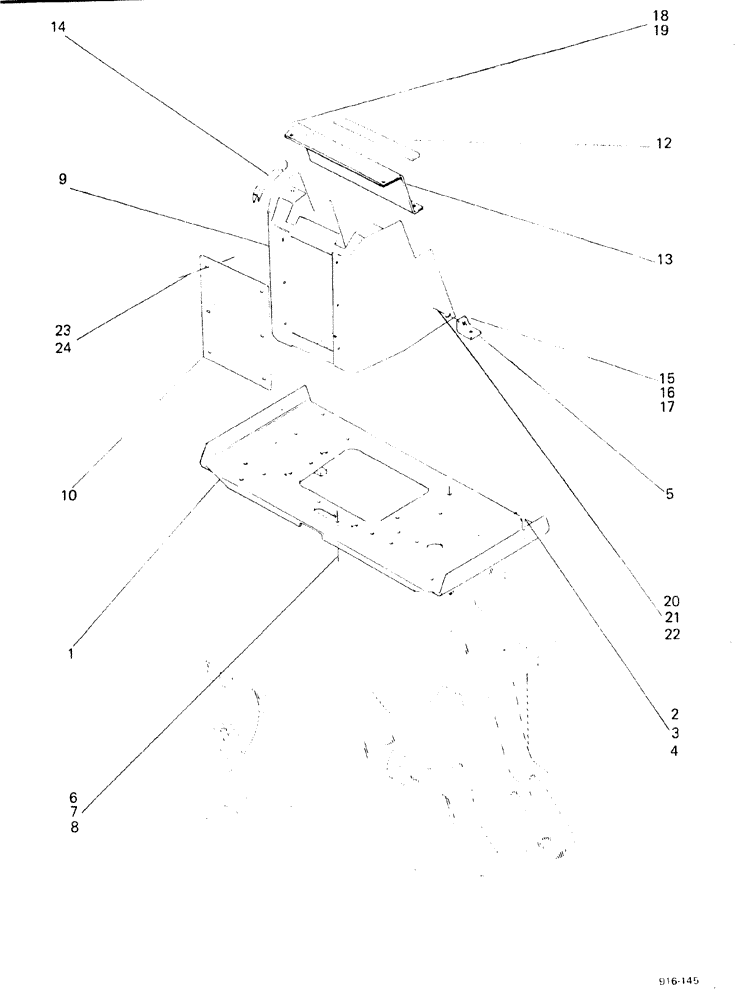

Запчасти Case 580F (370) - AXIAL BACKHOE CONTROL TOWER, FOR SUEDISH (84) - BOOMS, DIPPERS & BUCKETS

1

PLATE, see Figure 248

1шт.

2

13-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

25-106

NUT,3/8"-16, G5

4шт.

5

D50287

SUPPORT

2шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAP

1шт.

7

92-6

LOCK WASHER,3/8"

1шт.

8

25-106

NUT,3/8"-16, G5

1шт.

9

E35839

PANEL

1шт.

9

E35838

PANEL, with hydraulic boom lock

1шт.

10

E35846

PLATE

1шт.

12

E35624

STRIP

1шт.

13

E35847

PANEL

1шт.

14

D43403

LINING

GUARD

2шт.

15

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

25-106

NUT,3/8"-16, G5

2шт.

18

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Cap

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Cap

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

195-25

WASHER,3/8"

2шт.

23

193-72

LOCK WASHER

6шт.

24

175-420

SCREW,Sl Truss Hd, 3/8" - 16 x 3/4"

BOLT

6шт.
