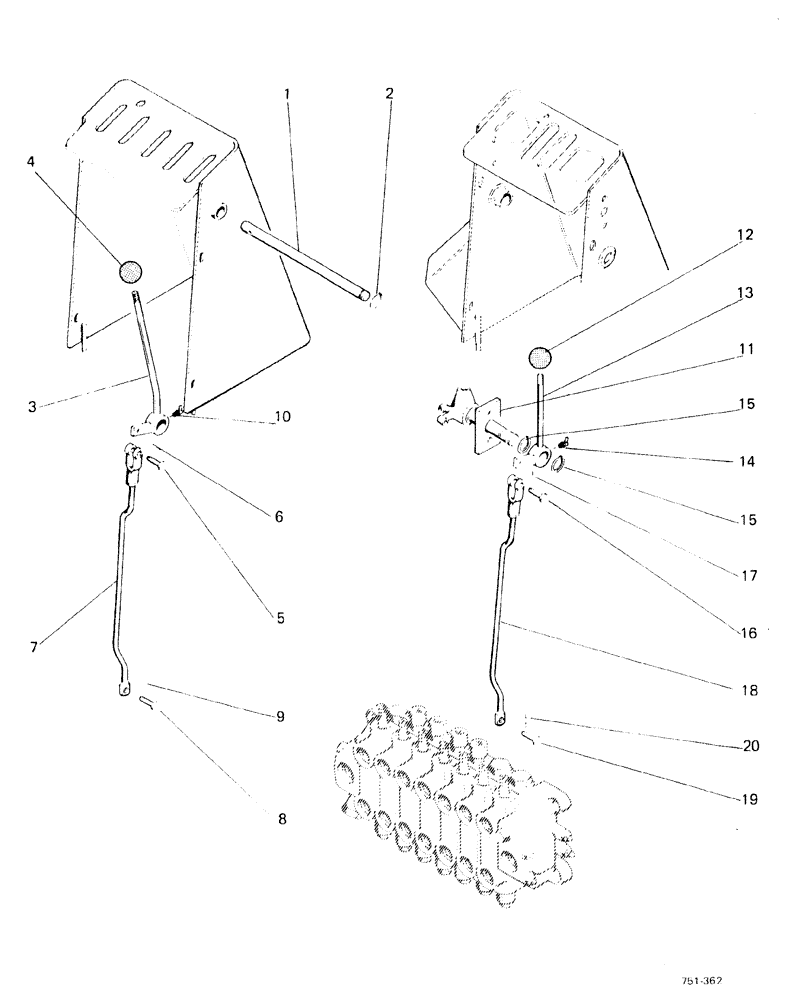

Запчасти Case 580F (286) - SIDE SHIFT BACKHOE EXTENDAHOE CONTROL (84) - BOOMS, DIPPERS & BUCKETS

1

D67232

ROD

SHAFT, Ref. 1 to 10 for 5 lever controls

1шт.

2

D71829

SNAP RING,#87, Ext

Ref. 1 to 10 for 5 lever controls

1шт.

3

D67228

HANDLE Ref. 1 to 10 for 5 lever controls

1шт.

4

D59912

KNOB

Ref. 1 to 10 for 5 lever controls

1шт.

5

141-4

CLEVIS PIN,3/8" x 1.060"

Ref. 1 to 10 for 5 lever controls

1шт.

6

132-25

COTTER PIN,3/32" x 5/8"

Ref. 1 to 10 for 5 lever controls

1шт.

7

D67230

ROD

Ref. 1 to 10 for 5 lever controls

1шт.

8

141-3

CLEVIS PIN,5/16" x .940"

Ref. 1 to 10 for 5 lever controls

1шт.

9

132-25

COTTER PIN,3/32" x 5/8"

Ref. 1 to 10 for 5 lever controls

1шт.

10

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

Ref. 1 to 10 for 5 lever controls

1шт.

11

D69835

PIVOT

Ref. 11 to 20 for 2 lever controls

1шт.

12

D59912

KNOB

Ref. 11 to 20 for 2 lever controls

1шт.

13

D67242

HANDLE

SPARE PART Ref. 11 to 20 for 2 lever controls

1шт.

14

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

Ref. 11 to 20 for 2 lever controls

1шт.

15

D71829

SNAP RING,#87, Ext

Ref. 11 to 20 for 2 lever controls

2шт.

16

141-4

CLEVIS PIN,3/8" x 1.060"

Ref. 11 to 20 for 2 lever controls

1шт.

17

132-25

COTTER PIN,3/32" x 5/8"

Ref. 11 to 20 for 2 lever controls

1шт.

18

D67230

ROD

Ref. 11 to 20 for 2 lever controls

1шт.

19

141-3

CLEVIS PIN,5/16" x .940"

Ref. 11 to 20 for 2 lever controls

1шт.

20

132-25

COTTER PIN,3/32" x 5/8"

Ref. 11 to 20 for 2 lever controls

1шт.
