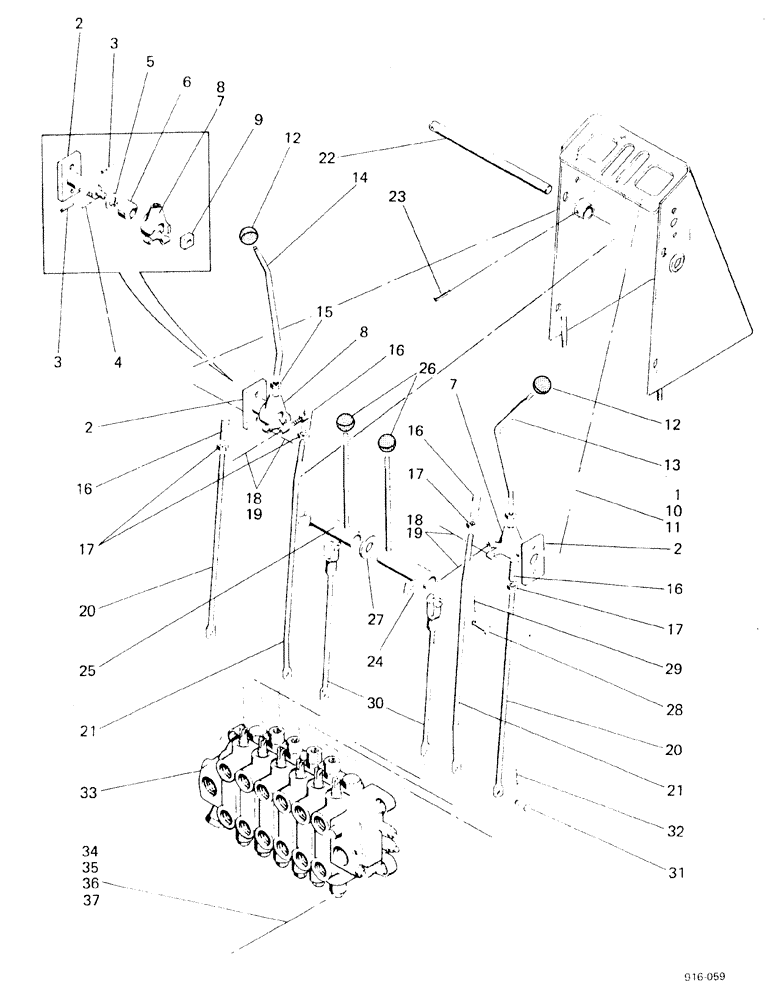

Запчасти Case 580F (284) - SIDE SHIFT BACKHOE (2) LEVER CONTROLS (84) - BOOMS, DIPPERS & BUCKETS
№
Артикул
Название
Примечание
Количество
1
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
4шт.
2
D38299
SUPPORT
2шт.
3
138-96
LOCK PIN,3/16" x 1", Slotted
4шт.
4
132-25
COTTER PIN,3/32" x 5/8"
2шт.
5
D1038223
SPRING
Ring, Snap, 1.438", Int, #143
2шт.
6
D38297
SPHERICAL BEARING,22.23mm ID x 36.51mm OD x 19.43mm W
BEARING
2шт.
7
D38302
ADAPTER
TOGGLE
1шт.
8
D38303
ADAPTER
TOGGLE
1шт.
9
D38305
BLOCK
2шт.
10
92-6
LOCK WASHER,3/8"
4шт.
11
25-106
NUT,3/8"-16, G5
4шт.
12
CAS31375
KNOB
2шт.
UP TO NO. 3.786.047, STARTING WITH NO. 3.787.105, UP TO NO. 3.787.429
1шт.
12
E35899
KNOB
2шт.
STARTING WITH NO. 3.786.048, UP TO NO. 3.787.104, STARTING WITH NO. 3.787.430
1шт.
13
D71577
HANDLE
right-hand
1шт.
UP TO NO. 3.786.047, STARTING WITH NO. 3.787.105, UP TO NO. 3.787.429
1шт.
13
D75517
LEVER
HANDLE right-hand
1шт.
STARTING WITH NO. 3.786.048, UP TO NO. 3.787.104, STARTING WITH NO. 3.787.430
1шт.
14
D71576
HANDLE
left-hand
1шт.
UP TO NO. 3.786.047, STARTING WITH NO. 3.787.105, UP TO NO. 3.787.429
1шт.
14
D75518
LEVER
HANDLE left-hand
1шт.
STARTING WITH NO. 3.786.048, UP TO NO. 3.787.104, STARTING WITH NO. 3.787.430
1шт.
15
25-1110
NUT,5/8"-18, G5
2шт.
16
D38296
JOINT
4шт.
17
25-156
JAM NUT,Jam, 3/8"-24, G5
4шт.
18
92-6
LOCK WASHER,3/8"
4шт.
19
25-156
JAM NUT,Jam, 3/8"-24, G5
4шт.
20
D69848
ROD
2шт.
21
D69849
ROD
2шт.
22
D67231
SHAFT
1шт.
23
138-100
LOCK PIN,3/16" x 1 1/2", Slotted
1шт.
24
D69839
LEVER
right-hand
1шт.
25
D69838
LEVER
left-hand
1шт.
26
D59912
KNOB
2шт.
27
195-2097
WASHER,15/16" x 1 3/4" x .083"
1шт.
28
141-4
CLEVIS PIN,3/8" x 1.060"
2шт.
29
132-25
COTTER PIN,3/32" x 5/8"
2шт.
30
D69847
ROD
2шт.
31
141-3
CLEVIS PIN,5/16" x .940"
6шт.
32
132-25
COTTER PIN,3/32" x 5/8"
6шт.
33
REF
INSTRUCTION
VALVE, see Figure 214
1шт.
34
13-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
3шт.
35
95-8
WASHER,1/2"
3шт.
36
95-8
WASHER,1/2"
3шт.
37
131-654
LOCK NUT,1/2"-13, GB
3шт.
