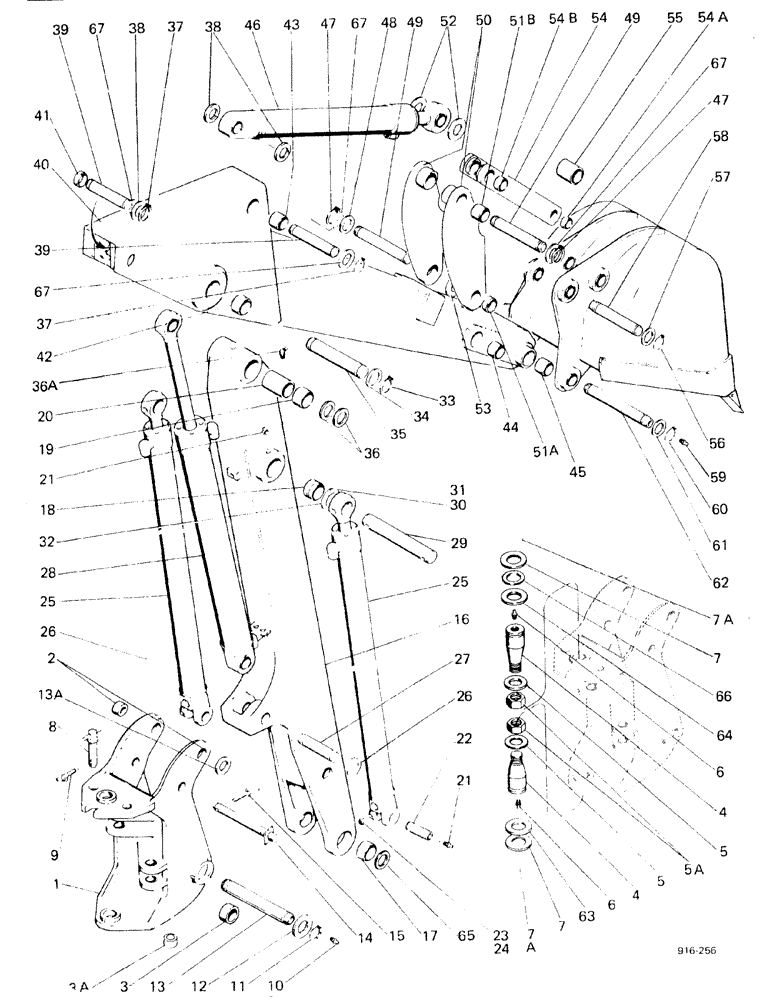

Запчасти Case 580F (274) - SIDE SHIFT BACKHOE CONTROL TOWER AND BOOM (84) - BOOMS, DIPPERS & BUCKETS

1

D66787

ASSEMBLY

SPARE PART TOWER complete, order D66787 + E8448, 2

1шт.

UP TO NO. 3.786.833

1шт.

1

D66787

ASSEMBLY

SPARE PART TOWER complete, order D66787

1шт.

STARTING WITH NO. 3.786.834

1шт.

2

D66651

BUSHING

2шт.

3

D66640

BUSHING

2шт.

3a

D66639

BUSHING

4шт.

4

D72954

PIN,57.15mm OD x 148.5mm L

2шт.

5

D36478

WASHER

2шт.

5a

25-1524

JAM NUT,Jam, 1 1/2"-12, G5

2шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

7

195-2161

WASHER,2 5/16" x 3 1/2" x .134"

2шт.

7a

F40807

SNAP RING,#225, Ext

Ring, Snap, #225, Ext

2шт.

8

D66586

PIN

1шт.

9

D60490

PIN

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

11

D26919

SNAP RING,#200, Ext

2шт.

12

D71068

WASHER

2шт.

13

D66815

PIN,50.8mm OD x 360mm L

1шт.

13a

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

2шт.

14

D73536

PIN

1шт.

15

D60490

PIN

1шт.

16

D69988

BOOM

complete

1шт.

17

D50698

BUSHING,51.03mm ID x 69.98mm OD x 40.64mm L

2шт.

18

D95362

BUSHING

2шт.

19

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

2шт.

20

D37416

BUSHING

SPACER

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

22

D49866

PIN,38.1mm OD x 96.52mm L

2шт.

23

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

24

131-652

LOCK NUT,3/8"-16, GB

2шт.

25

REF

INSTRUCTION

CYLINDER, see Figure 200

2шт.

26

D25280

SNAP RING,#175, Ext

2шт.

27

D72359

PIN,44.45mm OD x 142.24mm L

1шт.

28

REF

INSTRUCTION

CYLINDER, see Figure 202

1шт.

29

D49865

PIN,50.8mm OD x 304.8mm L

1шт.

30

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

31

131-654

LOCK NUT,1/2"-13, GB

2шт.

32

195-2155

WASHER,2 1/16" x 3" x .109"

2шт.

33

D26919

SNAP RING,#200, Ext

2шт.

34

195-2155

WASHER,2 1/16" x 3" x .109"

2шт.

35

D45523

PIN,50.8mm OD x 276.35mm L

1шт.

36

D44813

SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk

1шт.

36a

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

37

D25280

SNAP RING,#175, Ext

4шт.

38

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

8шт.

39

D52522

PIN,44.45mm OD x 211.84mm L

2шт.

40

D63796

ARM

dipper, complete

1шт.

41

D52434

BUSHING

2шт.

42

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

2шт.

43

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

2шт.

44

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

2шт.

45

D55626

BUSHING,44.68mm ID x 57.15mm OD x 41.91mm L

2шт.

46

REF

INSTRUCTION

CYLINDER, see Figure 204

1шт.

47

D25280

SNAP RING,#175, Ext

4шт.

48

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

2шт.

49

D53818

PIN,44.45mm OD x 278.89mm L

2шт.

50

E35389

LINK

GUIDE right

2шт.

51a

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

1шт.

518

D42788

BUSHING,44.68mm ID x 53.98mm OD x 28.57mm L

1шт.

52

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

4шт.

53

D55732

WASHER

2шт.

54

D61244

LINK

2шт.

54a

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

2шт.

54b

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

55

D37450

SPACER,40.89mm ID x 48.26mm OD x 63.5mm L

SPACER

1шт.

56

D25279

SNAP RING,M35, Int

2шт.

57

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

2шт.

58

D37614

PIN,38mm Od x 246mm L

1шт.

59

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

60

D25280

SNAP RING,#175, Ext

2шт.

61

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

2шт.

62

D64799

PIN,44.45mm OD x 370.84mm L

1шт.

63

D73848

WASHER,60mm ID x 120mm OD x 4mm L

16"/4 mm thick

1шт.

64

D74249

WASHER,60mm ID x 120mm OD x 2mm Thk

.08"/2 mm thick

4шт.

65

D44813

SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk

1шт.

66

E38384

SHIM,3mm Thk

Washer (.11")

1шт.

67

51200255

SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk

.06"/1.5 mm thick

8шт.
