Запчасти Case 580F (016) - ENGINE, CYLINDER BLOCK (10) - ENGINE

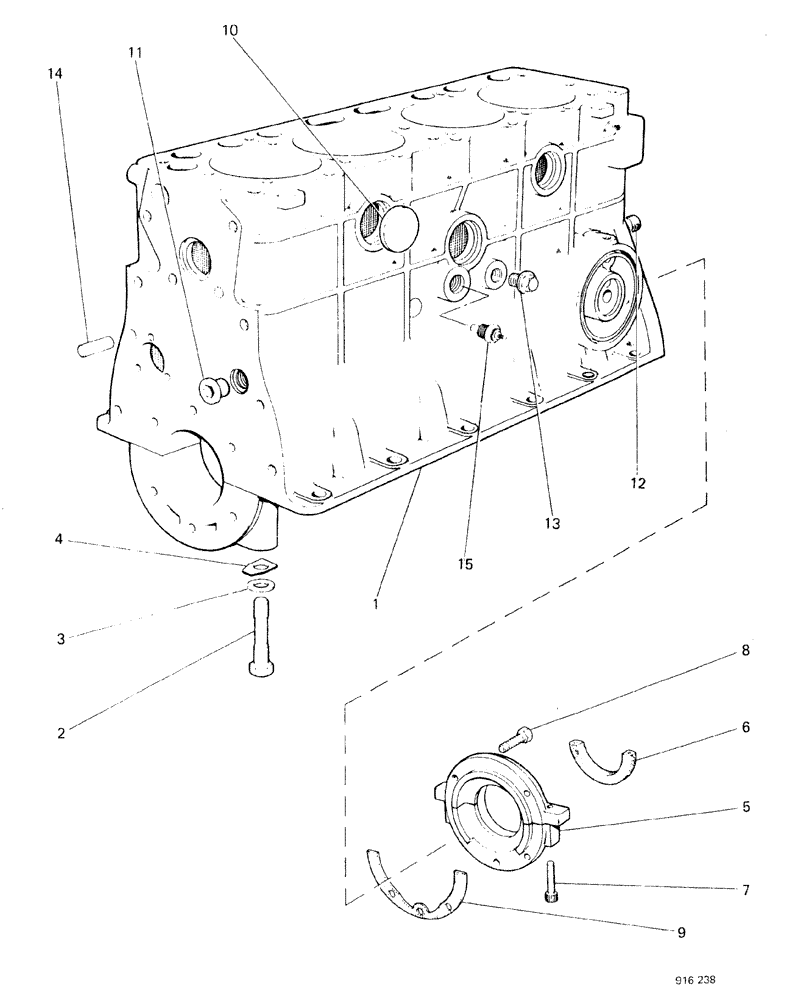

Схема запчастей Case 580F - (016) - ENGINE, CYLINDER BLOCK (10) - ENGINE
9
1
11
15
8
14
7
4
12
10
3
6
2
5
13

Артикул

Название

Примечание

Количество

1

K964893

BLOCK

cylinder, order K965168 + K200037

1шт.

UP TO NO. 130739, DRY CLUTCH/NO. 145194, TORQUE CONVERTER

1шт.

1

K965168

BASIC BLOCK

cylinder

1шт.

STARTING WITH NO. 130740, DRY CLUTCH/NO. 145195, TORQUE CONVERTER

1шт.

K12258

PIN

DOWEL

6шт.

2

K902022

BOLT

6шт.

3

K929557

WASHER

6шт.

4

K12994

BEARING WASHER

TABWASHER

6шт.

5

K964844

HOUSING

RETAINER oil

1шт.

6

K921611

OIL SEAL

PACKING

2шт.

7

K606558

SCREW

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

8

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SET

5шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

5шт.

9

K950938

GASKET,0.18mm Thk

2шт.

10

K623797

PLUG

5шт.

11

K609449

PLUG

1шт.

12

K609440

PLUG

1шт.

K619506

WASHER

1шт.

13

K19581

PLUG

1шт.

K19501

WASHER

1шт.

14

K621807

PIN

DOWEL

2шт.

15

K903851

PRESSURE SWITCH

SWITICH

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

1шт.

K964747

GASKET KIT

engine pack

1шт.

K964629

BLOCK

short, Includes: block, crank shaft, pistons, connecting rods and crank shaft oil seal

1шт.

Выбрано товаров: 26
