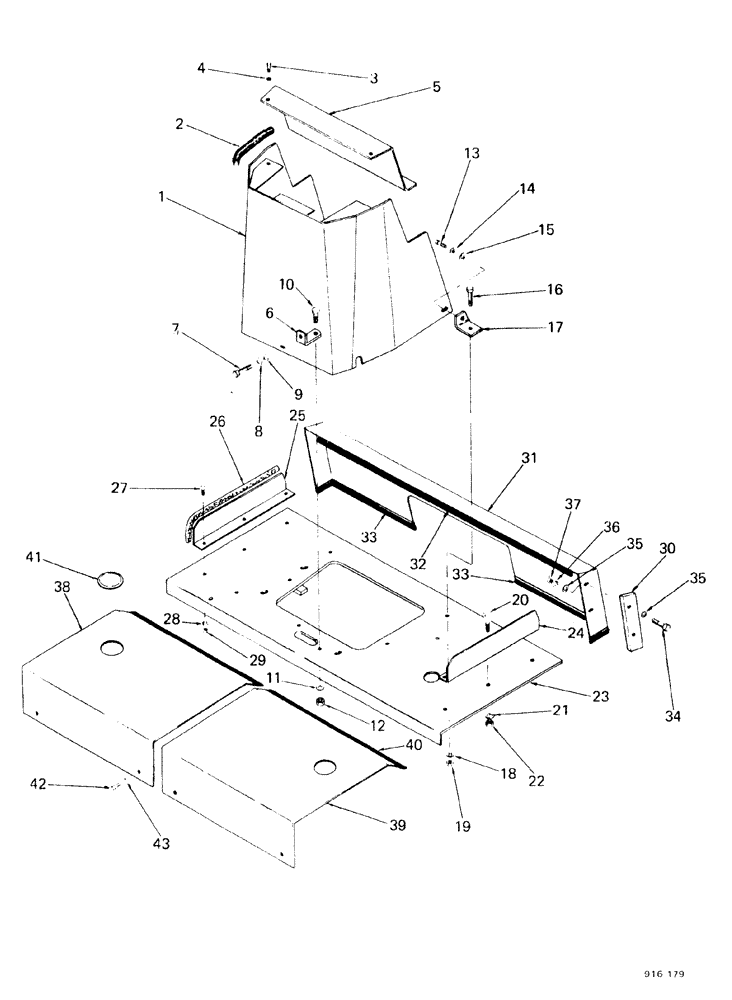

Запчасти Case 580F (249A) - AXIAL BACKHOE CONTROL TOWER, STARTING WITH NO 3.775.311, WITHOUT OR NOT FOR SUEDISH (84) - BOOMS, DIPPERS & BUCKETS
№
Артикул
Название
Примечание
Количество
1
D76628
HOOD
PANEL
1шт.
1
E37512
PANEL, with hydraulic boom lock
1шт.
2
D73120
LINING
GUARD
1шт.
3
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
Cap
2шт.
4
92-6
LOCK WASHER,3/8"
2шт.
5
D76731
PLATE ASSY.
PANEL
1шт.
6
D52697
STRAP
ANGLE
1шт.
7
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
Cap
1шт.
8
92-6
LOCK WASHER,3/8"
1шт.
9
195-25
WASHER,3/8"
1шт.
10
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
CAP
1шт.
11
92-6
LOCK WASHER,3/8"
1шт.
12
25-106
NUT,3/8"-16, G5
1шт.
13
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
Cap
1шт.
14
92-6
LOCK WASHER,3/8"
1шт.
15
195-25
WASHER,3/8"
1шт.
16
13-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
2шт.
17
D78232
SPARE PART ANGLE
2шт.
18
92-6
LOCK WASHER,3/8"
2шт.
19
25-106
NUT,3/8"-16, G5
2шт.
20
13-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
4шт.
21
92-6
LOCK WASHER,3/8"
4шт.
95-6
WASHER,3/8"
4шт.
22
25-106
NUT,3/8"-16, G5
4шт.
23
D76626
PLATE ASSY.
1шт.
24
D76743
ANGLE
BRACKET right-hand
1шт.
25
D76744
ANGLE
BRACKET left-hand
2шт.
26
D76734
GUARD
2шт.
27
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
CAP
2шт.
28
92-6
LOCK WASHER,3/8"
2шт.
95-6
WASHER,3/8"
2шт.
29
25-106
NUT,3/8"-16, G5
2шт.
30
E38237
PLATE
2шт.
31
D76620
PANEL, order E38238
1шт.
31
E38238
PANEL
1шт.
32
D50659
SPARE PART GUARD
1шт.
33
D77893
SPARE PART GUARD
2шт.
34
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
4шт.
35
195-25
WASHER,3/8"
4шт.
36
92-6
LOCK WASHER,3/8"
4шт.
37
25-106
NUT,3/8"-16, G5
4шт.
38
D76116
PLATE left-hand
1шт.
39
D76117
PLATE right-hand
1шт.
40
D55218
SEAL, GLASS,76mm L
GUARD
2шт.
41
205-72
HOLE PLUG BUTTON,3"
2шт.
42
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
Cap
4шт.
43
92-6
LOCK WASHER,3/8"
4шт.
Выбрано товаров: 47
