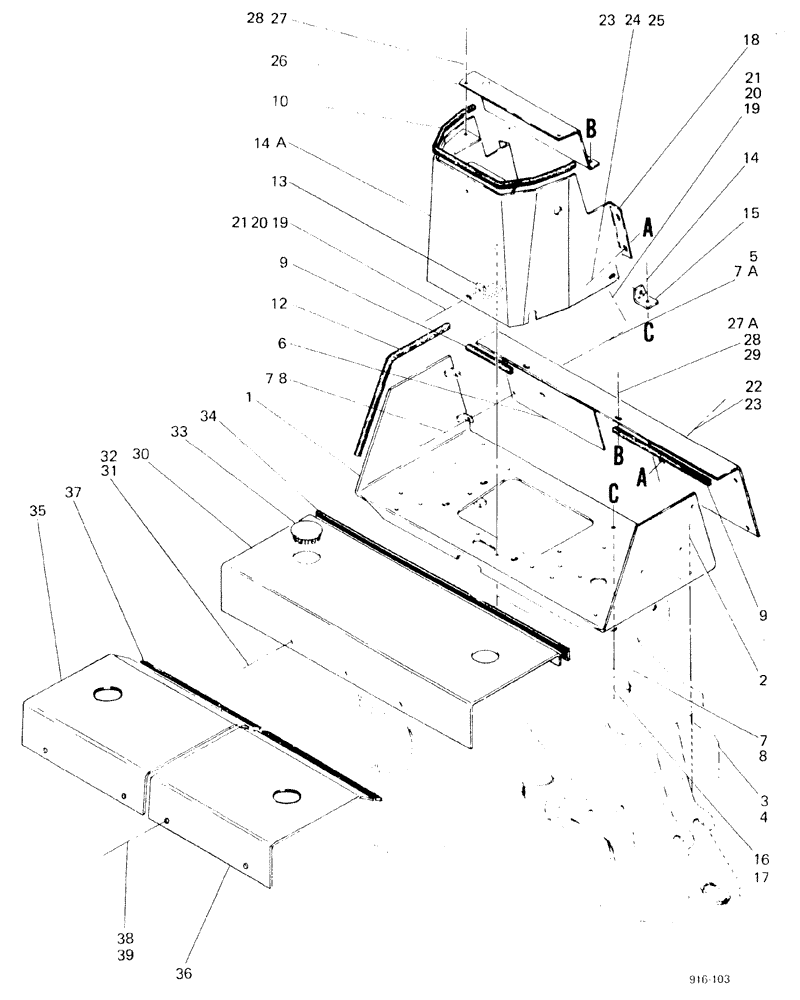

Запчасти Case 580F (248) - AXIAL BACKHOE CONTROL TOWER, UP TO NO 3.775.310, WITHOUT OR NOT FOR SUEDISH (84) - BOOMS, DIPPERS & BUCKETS
№
Артикул
Название
Примечание
Количество
1
D67788
SPARE PART
1шт.
2
13-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
4шт.
3
92-6
LOCK WASHER,3/8"
4шт.
4
25-106
NUT,3/8"-16, G5
4шт.
5
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
Cap
4шт.
6
D67779
PANEL
1шт.
7
92-6
LOCK WASHER,3/8"
4шт.
7a
195-25
WASHER,3/8"
4шт.
8
25-106
NUT,3/8"-16, G5
4шт.
9
D49094
LINING
GUARD
2шт.
10
D73120
LINING
GUARD
1шт.
12
D35424
LINING
GUARD
2шт.
13
D52697
STRAP
ANGLE
1шт.
14
13-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
2шт.
14a
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
CAP
1шт.
15
D50287
SUPPORT
2шт.
16
92-6
LOCK WASHER,3/8"
3шт.
17
25-106
NUT,3/8"-16, G5
3шт.
18
D67778
CONSOLE
PANEL
1шт.
18
D74285
PANEL, with hydraulic boom lock
1шт.
19
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
Cap
3шт.
20
92-6
LOCK WASHER,3/8"
3шт.
21
195-25
WASHER,3/8"
3шт.
22
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
CAP
4шт.
23
195-25
WASHER,3/8"
8шт.
24
92-6
LOCK WASHER,3/8"
4шт.
25
25-106
NUT,3/8"-16, G5
4шт.
26
D67782
PANEL
1шт.
27
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
Cap
2шт.
27a
13-68
SCREW,Hex, 3/8" - 16 x 1/2", Gr 5
CAP
2шт.
28
92-6
LOCK WASHER,3/8"
4шт.
29
195-25
WASHER,3/8"
2шт.
30
D69861
PLATE
PANEL
1шт.
UP TO NO. 3.774.828
1шт.
31
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
Cap
3шт.
UP TO NO. 3.774.828
1шт.
32
92-6
LOCK WASHER,3/8"
3шт.
UP TO NO. 3.774.828
1шт.
33
205-72
HOLE PLUG BUTTON,3"
2шт.
34
D73976
BAND
STRIP
1шт.
UP TO NO. 3.774.828
1шт.
35
D76116
PLATE left-hand
1шт.
STARTING WITH NO. 3.774.829
1шт.
36
D76117
PLATE right-hand
1шт.
STARTING WITH NO. 3.774.829
1шт.
37
D55218
SEAL, GLASS,76mm L
STRIP
2шт.
STARTING WITH NO. 3.774.829
1шт.
38
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
Cap
4шт.
STARTING WITH NO. 3.774.829
1шт.
39
92-6
LOCK WASHER,3/8"
4шт.
STARTING WITH NO. 3.774.829
1шт.
Выбрано товаров: 51
